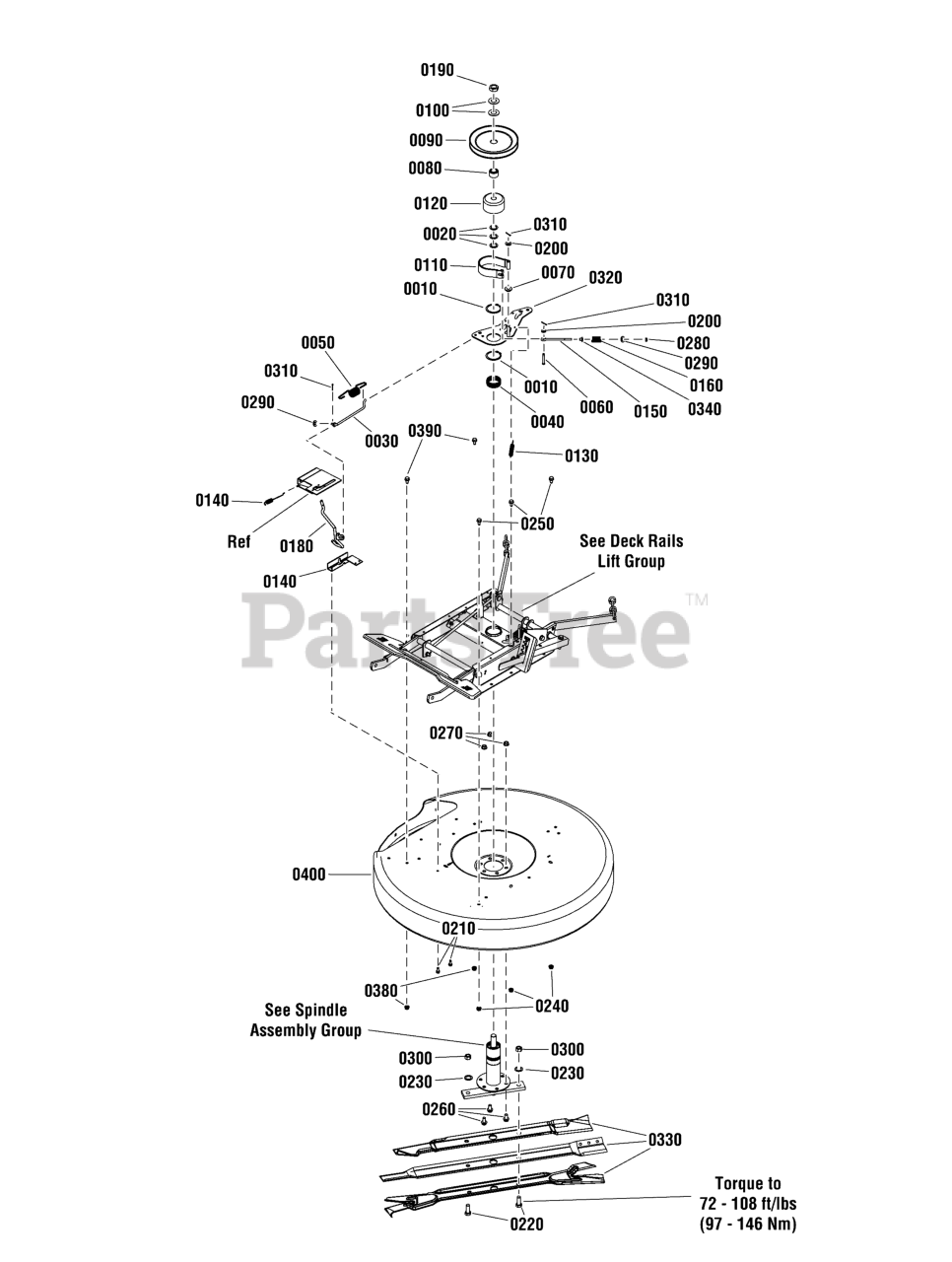

2811525BVE (2691525-00) - Snapper 28" Rear-Engine Riding Mower, 11.5hp 28" Mower Deck Clutch Assembly Parts Diagram

28" Rear-Engine Riding Mower, 11.5hp

28" Mower Deck Clutch Assembly Parts Diagram

  • Title

0010

Snapper 7010740YP

RETAINING RING, 2 External

$5.49

$

In Stock, only 2 left!

0

0020

Snapper 7010935SM

WASHER, Flat

$3.99

$

In Stock, Qty 20+

0

0030

Snapper 7012055YP

ROD, Idler Control

$15.99

$

In Stock, only 3 left!

0

0040

Snapper 7012670YP

RING, 2 ID x 3/4 High, Tolerance

$8.49

$

In Stock, Qty 6

0

0050

Snapper 7014168YP

SPRING, Blade Handle

$6.49

$

In Stock, Qty 9

0

0060

Snapper 7014304YP

PIN, 1/4 x 1-5/8 Clevis

$4.49

$

Usually ships in 2-12 days

0

0070

Snapper 7014314YP

SPACER, .31 I.D. x .39 O.D. x 1 Nylon

$4.99

$

In Stock, only 1 left!

0

0080

Snapper 7015290YP

HUB, Pulley, PM

$6.49

$

In Stock, Qty 10

0

0090

Snapper 7018781BMYP

PULLEY, Deck Spindle, 6.95 OD

$43.99

$

In Stock, Qty 9

0

0100

Snapper 7032027SM

WASHER, 49/64x1-1/2x.06, Flat

$4.49

$

In Stock, Qty 7

0

0110

Snapper 7600133YP

KIT, Brake Band, 10.1" L, 1.25" H (Formed)

$41.99

$

In Stock, Qty 7

0

0120

Snapper 7035378YP

DRUM, Brake Spindle (3" OD, 1.6" Tall)

$11.99

$

In Stock, only 2 left!

0

0130

Snapper 7036521YP

SPRING, Extension, 4 x 1/2 Diameter

$7.49

$

In Stock, Qty 5

0

0140

Snapper 7038021YP

MOUNT, Handle/Switch

$13.99

$

Usually ships in 2-12 days

0

0150

Snapper 7046677YP

EYE-BOLT, 1/4-20 x 4"

$6.99

$

Usually ships in 2-12 days

0

0160

Snapper 7046782YP

SPRING, Rectangular Wire Die, Blue

$12.99

$

In Stock, only 1 left!

0

0180

Snapper 7059254YP

WELDMENT, Blade Engagement Handle

$39.99

$

Usually ships in 2-12 days

0

0190

Snapper 7074467SM

NUT, 3/4-16 Hex Jam, GR 8

$4.49

$

In Stock, Qty 10

0

0200

Snapper 703590

WASHER, .406

$3.99

$

In Stock, Qty 17

0

0210

Snapper 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 5

0

0220

Snapper 7090491YP

SCREW, 1/2-20 x 1-1/4" Hex Head Cap, GR5

$4.99

$

Usually ships in 2-12 days

0

0230

Snapper 7090509YP

WASHER, 1/2 Internal Tooth Lock, BZ

$4.49

$

In Stock, Qty 10

0

0240

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0250

Snapper 703823

BOLT, 5/16-18 x 5/8 Hex Flange lock, GR 5, YZ

$3.99

$

In Stock, Qty 5

0

0260

Snapper 703955

BOLT, 3/8-16X0.75, Serrated Flange, GR5, Zinc/Clear

$4.49

$

In Stock, Qty 6

0

0270

Snapper 703333

NUT, 3/8-16, Flanged Lock, GR5

$4.99

$

In Stock, Qty 20+

0

0280

Snapper 703419

NUT, 1/4-20 Hex Top Lock, Zinc/Clear

$132.99

$

Usually ships in 2-12 days

0

0290

Snapper 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 20+

0

0300

Snapper 7091939YP

NUT, 1/2-20 Hex, GR 5 ZP

$3.49

$

In Stock, Qty 20+

0

0310

Snapper 703312

PIN, Cotter, 3/32 X 3/4

$3.99

$

In Stock, Qty 20+

0

0320

Snapper 706001

WELDMENT, Idler Arm, RER

$27.99

$

Usually ships in 2-12 days

0

0330

Snapper 7016980BZYP

BLADE, 28" Mulcher

Note: (Standard On Euro Models)

$35.99

$

In Stock, Qty 6

0

0330

Snapper 7019515BZYP

BLADE, 28" (Standard 3 Hole Air Lift)

Note: (Standard On US Models)

$30.99

$

In Stock, only 4 left!

0

0330

Snapper 7104083BZYP

BLADE, 28" Recycling Ninja

Note: (Optional)

$

$

Not available

0340

Snapper 7014343YP

BUSHING, Flange .27 ID x .35 x .4, Nylon, Black

$3.99

$

In Stock, Qty 20+

0

0350

Snapper 7035728BMYP

BRACKET, Fixed Idler

$18.99

$

Usually ships in 2-12 days

0

0360

Snapper 7036526BMYP

BRACE, Fixed Idler

$12.99

$

Usually ships in 2-12 days

0

0370

Snapper 703985

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1/2

$4.49

$

In Stock, only 3 left!

0

0380

Snapper 703233

NUT, Serrated, Flange, 1/4-20, GR5

$4.49

$

In Stock, Qty 5

0

0390

Snapper 1935450SM

CAPSCREW, Hex Flange Head, 1/4-20 x 3/4, G5

$4.49

$

In Stock, only 1 left!

0

0400

Snapper 7061970YP

KIT, 28" Deck Replacement, Red (Includes Decals)

$

$

Not available
