2811524BV (7800784) - Snapper 28" Rear-Engine Riding Mower, 11.5hp Electrical Group (11.5 HP Briggs, Recoil Start) Parts Diagram

28" Rear-Engine Riding Mower, 11.5hp

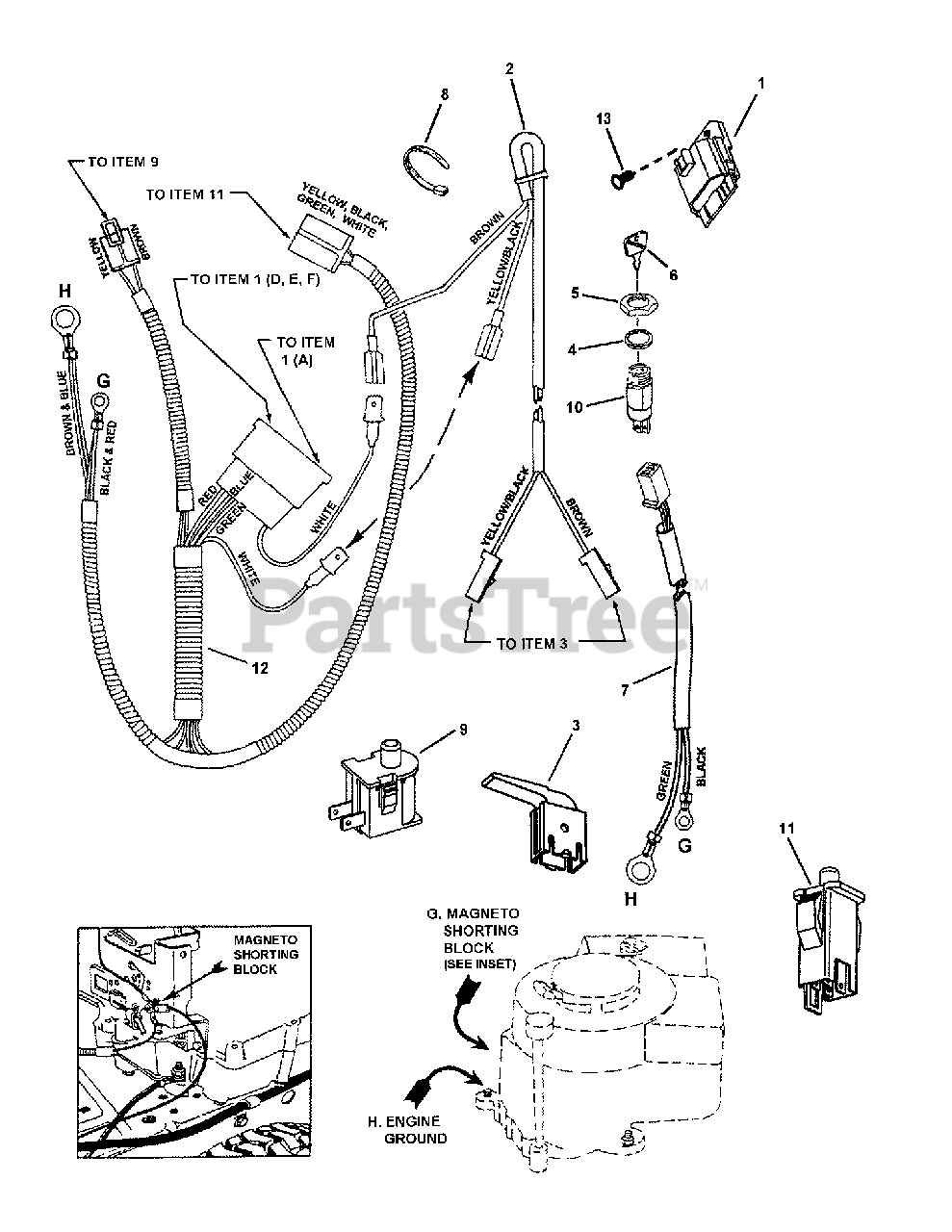

Electrical Group (11.5 HP Briggs, Recoil Start) Parts Diagram

  • Title
1

Snapper 7028606

INTERLOCK MODULE, Briggs
(Superseded to 7028606YP)

$53.99

$

In Stock, Qty 8

0

2

Snapper 7028386

HARNESS, (Deck Interlock Wiring)
(Superseded to 7028386YP)

$14.99

$

In Stock, only 3 left!

0

3

Snapper 7018524

SWITCH, Deck Interlock (NO)
(Superseded to 7018524YP)

$19.99

$

In Stock, Qty 11

0

4

Snapper 7090880

WASHER, 5/8" Internal Tooth Lock
(Superseded to 1960547SM)

$4.49

$

In Stock, only 4 left!

0

5

Snapper 7015438

NUT, 5/8-32 Hex
(Superseded to 7015438YP)

$4.49

$

Usually ships in 2-12 days

0

6

Snapper 1737836

KEYS, BLISTER PK KIDS+MWRS DON'T MIX,DOM
(Superseded to 1737836YP)

$20.99

$

In Stock, only 1 left!

0

7

Snapper 7073714

HARNESS, Ground (Recoil Start)
(Superseded to 7073714YP)

$17.99

$

Usually ships in 2-12 days

0

8

Snapper 7012080

CABLE TIE, 7"
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

9

Snapper 7023354

SWITCH, Seat (NC)
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 20+

0

10

Snapper 7017817

SWITCH, Ignition, (2-Pole) (Recoil Start)
(Superseded to 7017817YP)

$31.99

$

In Stock, only 1 left!

0

11

Snapper 7022886

SWITCH, Operator Presence Control (OPC) Traction (NC/NO)
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

12

Snapper 7028607

HARNESS, Operator Presence Control (OPC) Wire
(Superseded to 7028607YP)

$51.99

$

Usually ships in 2-12 days

0

13

Snapper 7091272

FASTENER, 1/4" Ratchet
(Superseded to 7091272YP)

$3.99

$

In Stock, Qty 13

0
