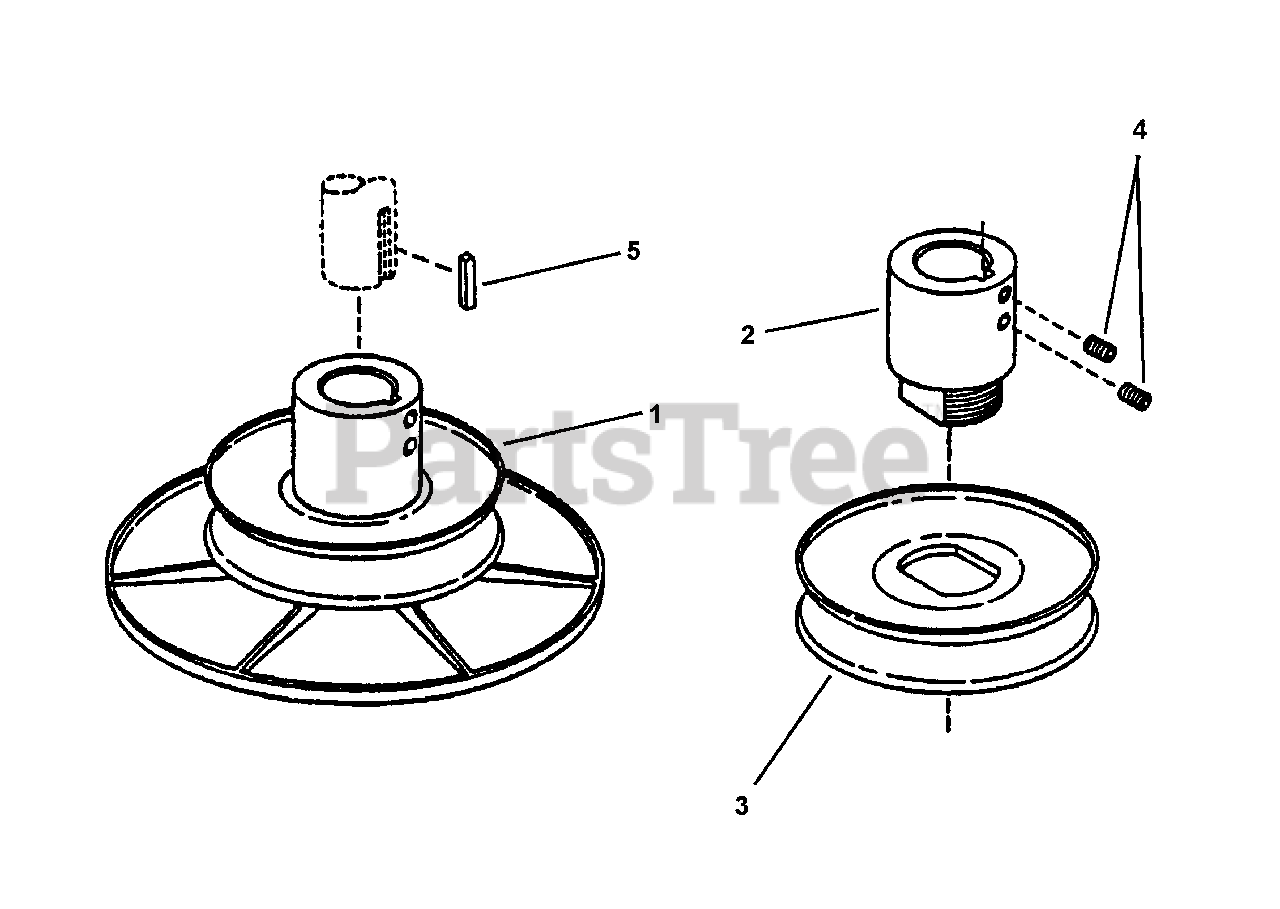

281016BE (82379) - Snapper 28" Rear-Engine Riding Mower, 10hp Drive Disc Assembly Parts Diagram

28" Rear-Engine Riding Mower, 10hp

Drive Disc Assembly Parts Diagram

  • Title

1

Snapper 7074187

ASSEMBLY, 5.18" O.D. Drive Disc (Was 53708)
(Superseded to 7074187YP)

Note: (30" & 33" Models). (Includes Items 2 Thru 4)

$155.99

$

In Stock, only 4 left!

0

Snapper 7072658

ASSEMBLY, 6" O.D. Drive Disc (Was 53709)
(Superseded to 7072658YP)

Note: (25" & 28" Models). (Includes Items 2 Thru 4)

$125.99

$

In Stock, only 1 left!

0

2

Snapper 7029112

HUB

$

$

Not available

3

Snapper 7028779

PULLEY, Drive (5.75" O.D.)
(Superseded to 7028779YP)

Note: (25" & 28" Models)

$65.99

$

In Stock, only 3 left!

0

Snapper 7028796

PULLEY, Drive (5.18" O.D.)
(Superseded to 7028796BMYP)

Note: (30" & 33" Models)

$25.99

$

Usually ships in 2-12 days

0

4

Snapper 7090132

SCREW, 3/8-16 x 3/8" Set
(Superseded to 7090132YP)

$3.49

$

In Stock, Qty 5

0

5

Snapper 7010210

KEY, 1/4" Square x 2"
(Superseded to 703890)

$4.99

$

In Stock, Qty 7

0
