281014BE (80635) - Snapper 28" Rear-Engine Riding Mower, 10hp Wheels - Rear Parts Diagram

28" Rear-Engine Riding Mower, 10hp

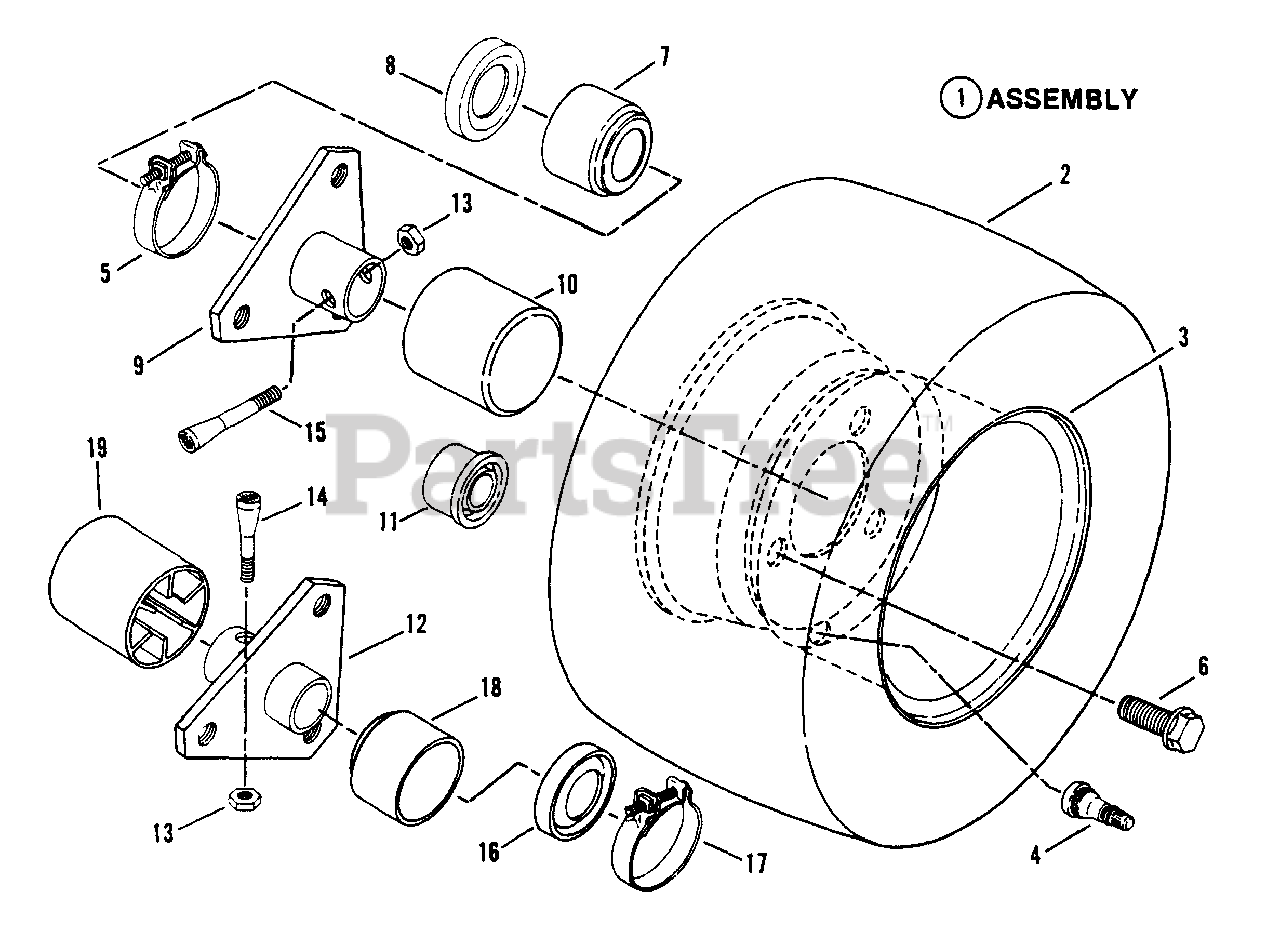

Wheels - Rear Parts Diagram

  • Title

1

Snapper 7052269

ASSEMBLY, Rear Tire & Rim
(Superseded to 7052269YP)

Note: Includes Items 2A, 3A, 4) (25" Models)

$152.99

$

In Stock, only 2 left!

0

Snapper 7052270

ASSEMBLY, Rear Tire & Rim
(Superseded to 7052270YP)

Note: Includes Items 2B, 3B, 4) (28" & 30" Models)

$207.99

$

In Stock, only 1 left!

0

Snapper 7022584

ASSEMBLY, Rear Tire & Rim
(Superseded to 7022584YP)

Note: Was 52671 (Now 22584 + 12163)(Includes 2C, 3C, 4)(33" Models)

$110.99

$

In Stock, only 1 left!

0

2A

Snapper 7023889

TIRE, Std, 16-4.80 x 8
(Superseded to 7023889YP)

Note: 25" Models

$67.99

$

Usually ships in 2-12 days

0

2B

Snapper 7046245

TIRE, Wide, 16-6.50 x 8
(Superseded to 7073584YP)

Note: Was 15968, 28" & 30" Models

$170.99

$

Usually ships in 2-12 days

0

2C

Snapper 7022584

TIRE, Ext Wide, 16-7.50 x 8
(Superseded to 7022584YP)

Note: 33" Models

$110.99

$

In Stock, only 1 left!

0

3A

Snapper 7017145

RIM, Std, 16-4.80 x 8 Tire
(Superseded to 7017145YP)

Note: Was 12162 (25" Models)

$134.99

$

Usually ships in 2-12 days

0

3B

Snapper 7012163

RIM, Wide,16-6.50 x 8 Tire
(Superseded to 7012163YP)

Note: (28" & 30" Models)

$121.99

$

Usually ships in 2-12 days

0

3C

Snapper 7012163

RIM, Ext Wide, 16/7.50 x 8 Tire
(Superseded to 7012163YP)

Note: Was 17147 (33" Models)

$121.99

$

Usually ships in 2-12 days

0

4

Snapper 7012234

VALVE, Air (Snap-in)
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper 7011037

CLAMP, Right Hand
(Superseded to 7012332YP)

Note: 8, 9 & 10 HP

$6.99

$

In Stock, Qty 15

0

Snapper 7014542

CLAMP, Right Hand

Note: 12, 13, 14 HP

$

$

Not available

6

Snapper 7091502

BOLT, 1/2-20 x 3/4" Lug
(Superseded to 703431)

$4.99

$

In Stock, Qty 20+

0

7

Snapper 7031732

CAP, Seal RH 1.0" ID x 1.67" OD (8 & 10 HP)
(Superseded to 7031732YP)

Note: (8, 9 & 10 HP)

$6.49

$

In Stock, Qty 20+

0

?7A

Snapper 7014541

CAP, Seal RH .93" ID x 2.625" OD
(Superseded to 7014541YP)

Note: (12, 13, 14 HP)

$

$

Not available

8

Snapper 7011817

SEAL, Oil
(Superseded to 7011817YP)

$5.49

$

In Stock, Qty 20+

0

9

Snapper 7040433

HUB, Wheel RH, 3 Hole 1" ID
(Superseded to 7040433YP)

$37.99

$

In Stock, Qty 13

0

10

Snapper 7023895

CAP, Hub
(Superseded to 7023895YP)

$6.99

$

In Stock, only 4 left!

0

11

Snapper 7014658

CAP, Seal L.H. 3/4"
(Superseded to 7014658YP)

Note: Was 10967 (Now 14658 + 14662 + 12332)

$7.99

$

In Stock, Qty 20+

0

12

Snapper 7040434

HUB, Wheel LH, 3 Hole 3/4" ID
(Superseded to 7040434YP)

$

$

Not available

13

Snapper 7092062

NUT, 5/16-24 Hex Center Lock
(Superseded to 703459)

Note: Was 11201

$3.49

$

In Stock, Qty 20+

0

14

Snapper 7011035

BOLT, 5/16-24 x 1-5/8" Tapered Left Hand
(Superseded to 7011035YP)

$4.99

$

In Stock, Qty 20+

0

15

Snapper 7011013

BOLT, 5/16-24 x 2" Tapered Right Hand
(Superseded to 7011013YP)

$6.49

$

In Stock, Qty 20+

0

16

Snapper 7014662

SEAL, Oil Left Hand
(Superseded to 7014662YP)

$9.49

$

Usually ships in 2-12 days

0

17

Snapper 7012332

CLAMP Left Hand
(Superseded to 7012332YP)

Note: (12, 13, 14 HP)

$6.99

$

In Stock, Qty 15

0

18

Snapper 7014658

BOOT Left Hand
(Superseded to 7014658YP)

Note: (12, 13, 14 HP)

$7.99

$

In Stock, Qty 20+

0

19

Snapper 7023522

CAP, Hub Left Hand
(Superseded to 7023522YP)

$6.49

$

Usually ships in 2-12 days

0
