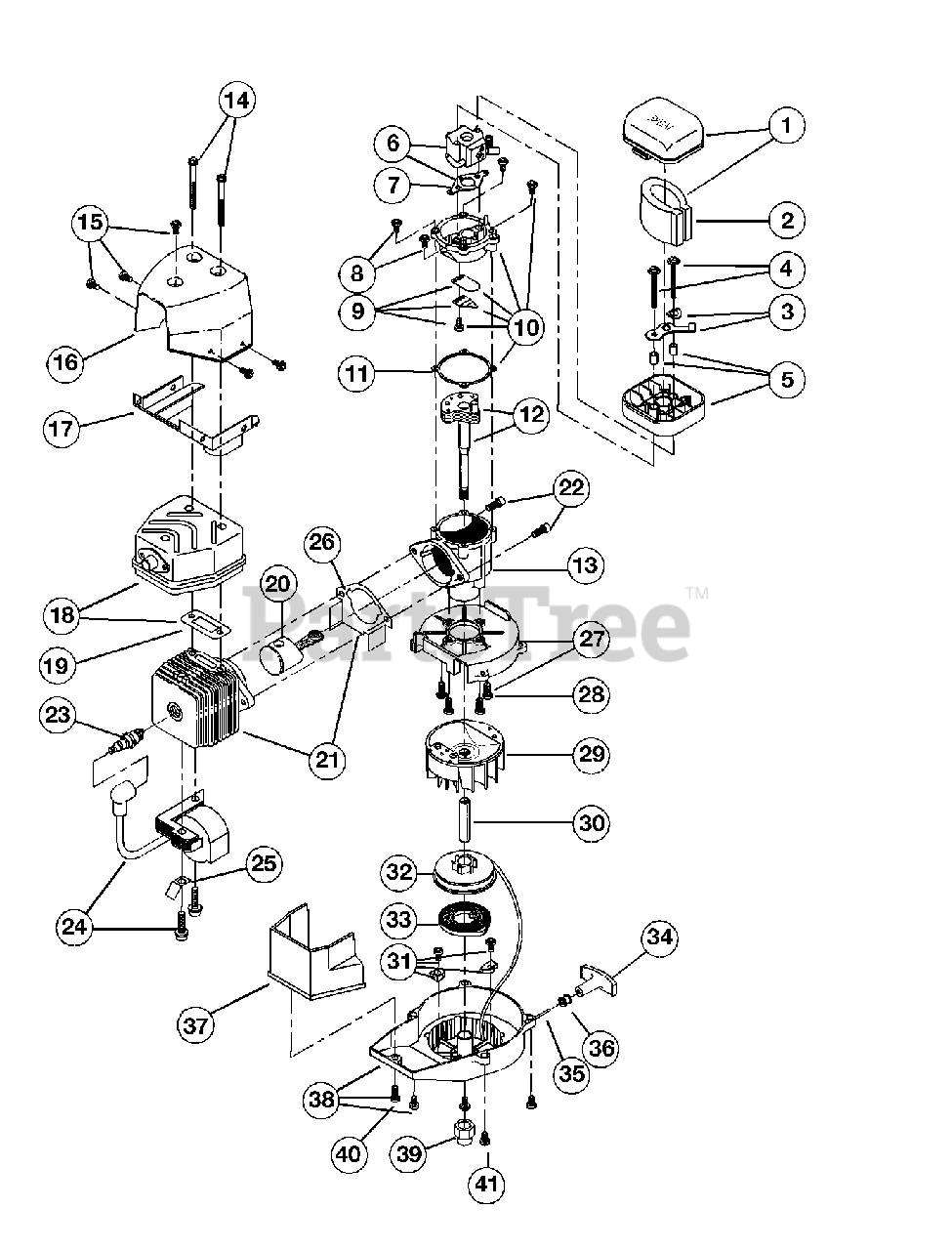

280r (41CR280G034) - Ryobi Blower Engine Parts Parts Diagram

Blower

Engine Parts Parts Diagram

  • Title

1

MTD 791-683378

Air Cleaner Cover Assembly

$

$

Not available

2

MTD 791-612111

Air Cleaner Filter

$

$

Not available

3

MTD 791-683380

Choke Lever Assembly

$

$

Not available

4

MTD 791-180351

Mounting Bolt Assembly

$

$

Not available

5

MTD 791-181512

Air Cleaner Base

$

$

Not available

6

MTD 791-182875

Carburetor Assembly

$

$

Not available

7

MTD 791-610675

Carburetor Gasket (10 pack)

$4.49

$

In Stock, Qty 18

0

8

MTD 791-180221

Reed Plate Mounting Screw

$

$

Not available

9

MTD 791-684451

Reed Assembly

$

$

Not available

10

MTD 791-684757

Complete Reed Plate Assembly

$

$

Not available

11

MTD 791-612115

Reed Plate Gasket
(Superseded to 753-1208)

$16.99

$

In Stock, only 1 left!

0

12

MTD 791-182774

Crankshaft Assembly

$

$

Not available

13

MTD 791-182775

Crankcase Service Assembly

$

$

Not available

14

MTD 791-147781

Muffler Mounting Bolt

$

$

Not available

15

MTD 791-181517

Mounting Screw Assembly

Note: (includes 14)

$

$

Not available

16

MTD 791-181522

Upper Heat Shield

$

$

Not available

17

MTD 791-181518

Lower Heat Shield

$

$

Not available

18

MTD 791-181521

Muffler Assembly

Note: (includes 14 & 19)

$

$

Not available

19

MTD 791-00027

Exhaust Gasket (10 pack)

$

$

Not available

20

MTD 791-684449

Piston and Rod Assembly
(Superseded to 753-04367)

$

$

Not available

21

MTD 791-180063

Cylinder Assembly
(Superseded to 753-04814)

Note: (includes 22 & 26)

$83.99

$

In Stock, only 1 left!

0

22

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 13

0

23

MTD 791-610311

Spark Plug
(Superseded to 791-610311B)

$14.99

$

In Stock, only 2 left!

0

24

MTD 791-181937

Module Assembly
(Superseded to 753-04125)

$

$

Not available

25

MTD 791-611063

Ground Tab

$

$

Not available

26

MTD 791-181519

Cylinder Gasket

$

$

Not available

27

MTD 791-153520

Shroud Assembly

Note: (includes 28)

$

$

Not available

28

MTD 791-181861

Shroud Screw

$4.49

$

Usually ships in 3-6 days

0

29

MTD 791-181867

Flywheel Assembly
(Superseded to 753-05240)

$76.99

$

In Stock, only 2 left!

0

30

MTD 791-181525

Spacer

$22.99

$

Usually ships in 3-6 days

0

31

MTD 791-180930

Pulley Retainer Assembly

$

$

Not available

32

MTD 791-181597

Recoil Pulley Assembly
(Superseded to 753-04232)

$

$

Not available

33

MTD 791-613102

Recoil Spring

$26.99

$

Usually ships in 3-6 days

0

34

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, Qty 11

0

35

MTD 791-613103

Rope

$10.99

$

In Stock, only 2 left!

0

36

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

37

MTD 791-181585

Shroud Extension

$

$

Not available

38

MTD 791-181931

Starter Housing Assembly

$

$

Not available

39

MTD 791-181524

Crankshaft Extension

$

$

Not available

40

MTD 791-181345

Shroud Extension Screw

$4.49

$

In Stock, Qty 20+

0

41

MTD 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 20+

0

MTD 791-180530

Piston Ring

Note: Not Shown

$

$

Not available

MTD 791-181520

Engine Gasket Kit

Note: Not Shown

$

$

Not available

MTD 791-180602

O.E.M. Carburetor Repair Kit (Walbro)

Note: Not Shown

$71.99

$

Usually ships in 3-6 days

0

MTD 791-147170

O.E.M. Carburetor Repair Kit (Tillotson)

Note: Not Shown

$

$

Not available

MTD 791-147171

Gasket-Diaphragm Repair Kit (Tillotson)

Note: Not Shown

$

$

Not available

MTD 791-610309

Crankcase Seal

Note: Not Shown

$16.99

$

Usually ships in 3-6 days

0
