280r (41CR280G034) - Ryobi Blower Blower Parts Parts Diagram

Blower

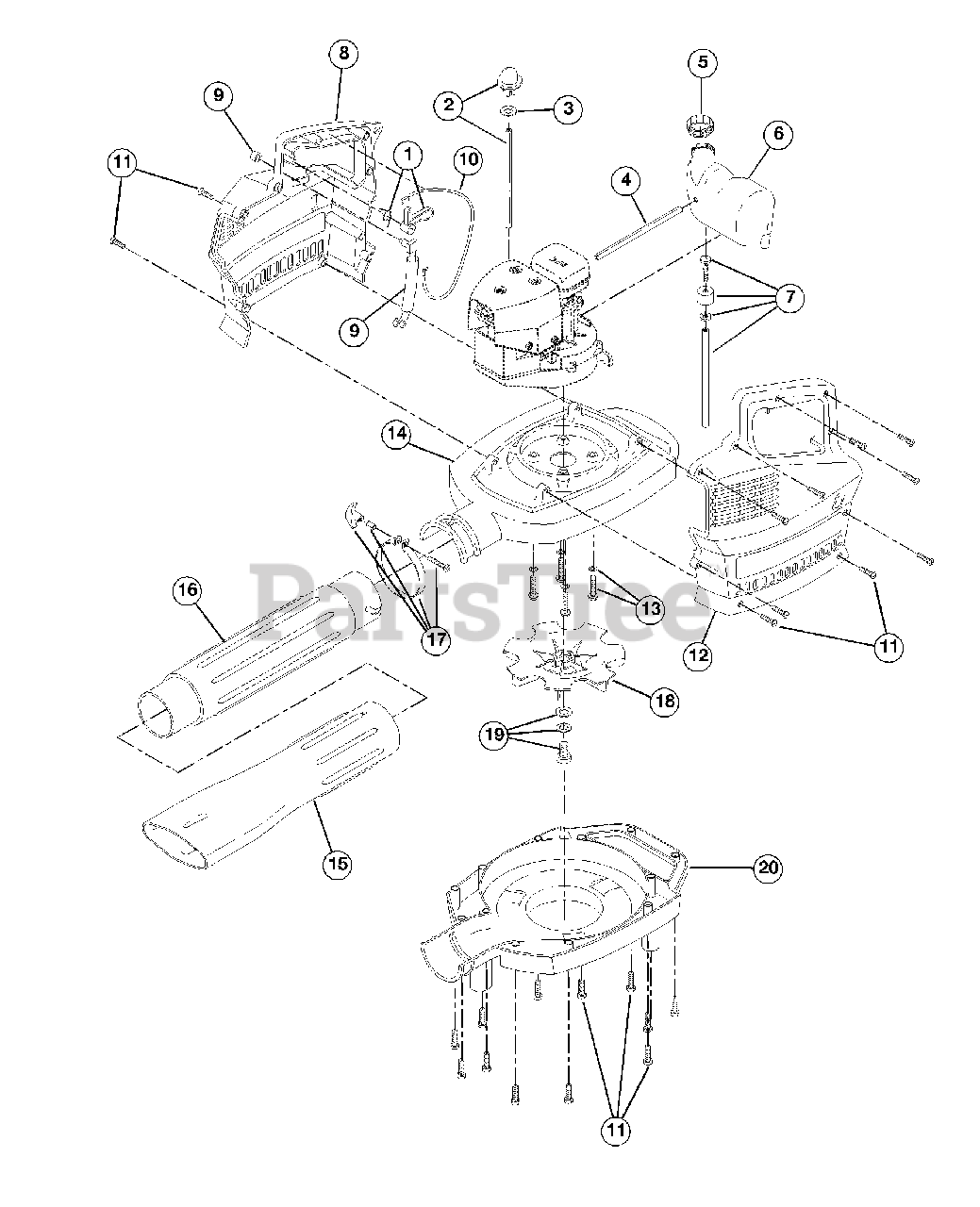

Blower Parts Parts Diagram

  • Title

1

MTD 791-00036

Trigger Assembly

$

$

Not available

2

MTD 791-147351

Primer Bulb and Hose Assembly

$

$

Not available

3

MTD 791-181671

Primer Washer

$

$

Not available

4

MTD 791-00028

Return Line

$

$

Not available

5

MTD 791-182271

Fuel Cap Assembly

$21.99

$

Usually ships in 3-6 days

0

6

MTD 791-147350

Complete Fuel Tank Assembly

Note: (includes items 4, 5 and 7)

$

$

Not available

7

MTD 791-147036

Fuel Line Assembly

$

$

Not available

8

MTD 791-180484

R.H. Engine Cover

$

$

Not available

9

MTD 791-147038

Switch and Lead Assembly

$

$

Not available

10

MTD 791-00029

Throttle Wire and Housing Assembly

$

$

Not available

11

MTD 791-147049

Mounting Screw

$16.99

$

Usually ships in 3-6 days

0

12

MTD 791-180485

L.H. Engine Cover

$

$

Not available

13

MTD 791-180058

Mounting Screw Assembly

$

$

Not available

14

MTD 791-180478

Upper Blower Housing

$

$

Not available

15

MTD 791-180469

Blower Tube W/Nozzle

$

$

Not available

16

MTD 791-180480

Blower Tube

$

$

Not available

17

MTD 791-180481

Clamp Assembly

$

$

Not available

18

MTD 791-180453

Impeller

$

$

Not available

19

MTD 791-181514

Mounting Bolt Assembly

$

$

Not available

20

MTD 791-180482

Lower Blower Housing W/Door

$

$

Not available

MTD 791-180486

Engine Cover Decal Kit

Note: Not Shown

$

$

Currently unavailable

MTD 791-682075

Shoulder Strap
(Superseded to 791-682075B)

Note: Optional Accessory; Not Shown

$38.99

$

Usually ships in 3-6 days

0

MTD 791-147541

Ryobi 2-Cycle Oil (48 - 4 oz. bottles)

Note: Optional Accessory; Not Shown

$

$

Currently unavailable
