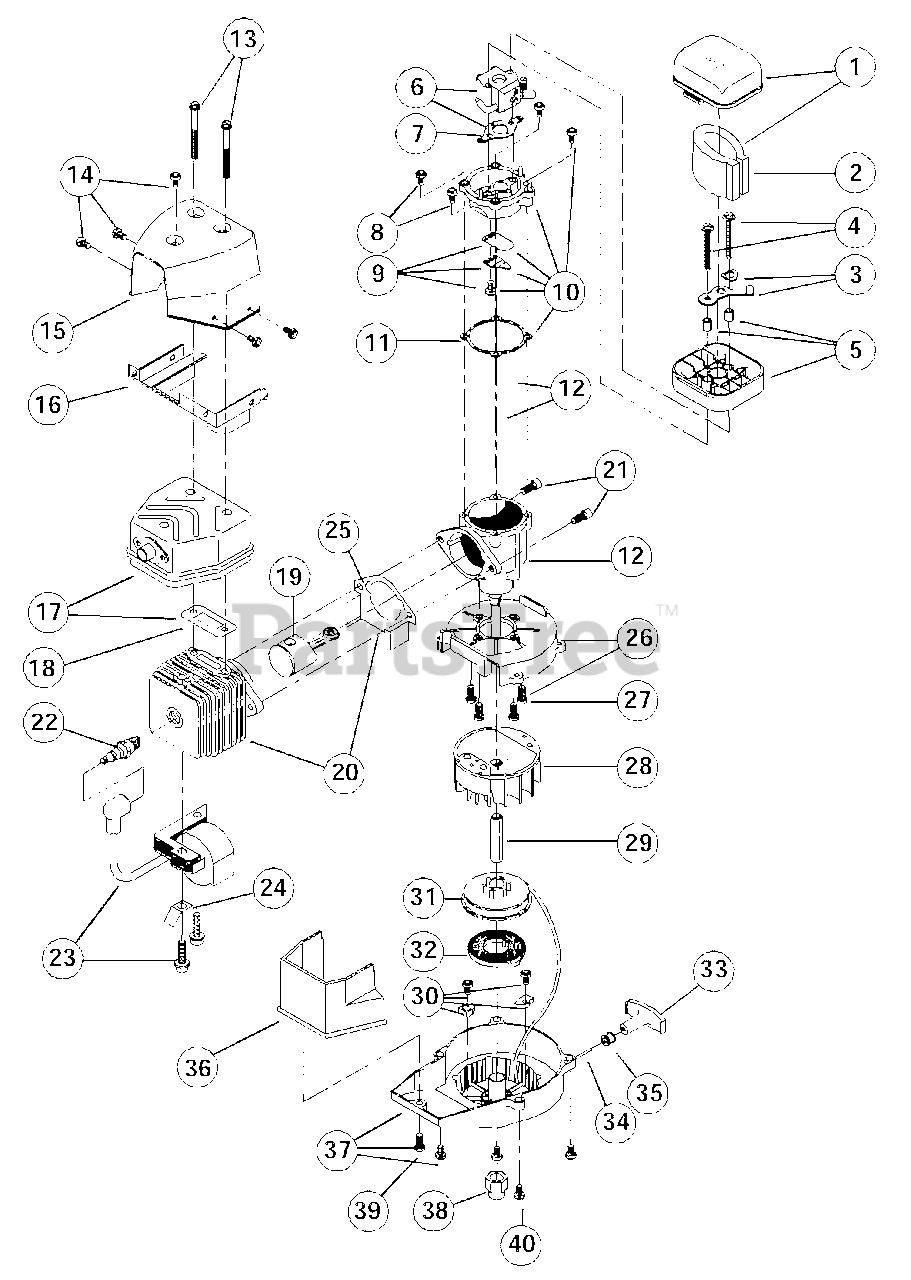

280r (41BR280C034) - Ryobi Blower Engine Parts Parts Diagram

Blower

Engine Parts Parts Diagram

  • Title
1

MTD 791-683378

Air Cleaner Cover Assembly

$

$

Not available

2

MTD 791-612111

Air Cleaner Filter

$

$

Not available

3

MTD 791-683380

Choke Lever Assembly

$

$

Not available

4

MTD 791-180351

Mounting Bolt Assembly

$

$

Not available

5

MTD 791-181512

Air Cleaner Base

$

$

Not available

6

MTD 791-182204

Carburetor Assembly

$

$

Not available

7

MTD 791-610675

Carburetor Gasket (10 pack)

$4.49

$

In Stock, Qty 19

0

8

MTD 791-180221

Reed Plate Mounting Screw

$

$

Not available

9

MTD 791-684451

Reed Assembly

$

$

Not available

10

MTD 791-684757

Complete Reed Plate Assembly

$

$

Not available

11

MTD 791-612115

Reed Plate Gasket
(Superseded to 753-1208)

$16.99

$

In Stock, only 1 left!

0

12

MTD 791-182775

Crankcase Service Assembly

$

$

Not available

13

MTD 791-147575

Muffler Mounting Bolt

$

$

Not available

14

MTD 791-181517

Mounting Screw Assembly

$

$

Not available

15

MTD 791-181522

Upper Heat Shield

$

$

Not available

16

MTD 791-181518

Lower Heat Shield

$

$

Not available

17

MTD 791-181521

Muffler Assembly

Note: (includes 13 & 18)

$

$

Not available

18

MTD 791-00027

Exhaust Gasket (10 pack)

$

$

Not available

19

MTD 753-04367

Piston and Rod Assembly

$

$

Not available

20

MTD 753-1206

Cylinder Assembly
(Superseded to 753-04814)

Note: (includes 21 & 25)

$83.99

$

In Stock, only 1 left!

0

21

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 13

0

22

MTD 791-610311B

Spark Plug

$14.99

$

In Stock, only 3 left!

0

23

MTD 753-04125

Module Assembly

$

$

Not available

24

MTD 791-611063

Ground Tab

$

$

Not available

25

MTD 791-181519

Cylinder Gasket

$

$

Not available

26

MTD 791-153520

Shroud Assembly

Note: (includes 27)

$

$

Not available

27

MTD 791-181861

Shroud Screw

$4.49

$

Usually ships in 3-6 days

0

28

MTD 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$76.99

$

In Stock, only 2 left!

0

29

$22.99

$

Usually ships in 3-6 days

0

30

MTD 791-180930

Pulley Retainer Assembly

$

$

Not available

31

MTD 753-04232

Recoil Pulley Assembly

$

$

Not available

32

MTD 791-613102

Recoil Spring

$26.99

$

Usually ships in 3-6 days

0

33

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 1 left!

0

34

$10.99

$

In Stock, only 2 left!

0

35

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

36

MTD 791-181585

Shroud Extension

$

$

Not available

37

MTD 791-181931

Starter Housing Assembly

$

$

Not available

38

MTD 791-181524

Crankshaft Extension

$

$

Not available

39

MTD 791-181345

Shroud Extension Screw

$4.49

$

In Stock, only 4 left!

0

40

MTD 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

MTD 753-1209

Piston Ring

Note: not shown

$52.99

$

Usually ships in 3-6 days

0

MTD 791-180602

O.E.M. Carburetor Repair Kit (Walbro)

Note: not shown

$71.99

$

Usually ships in 3-6 days

0
