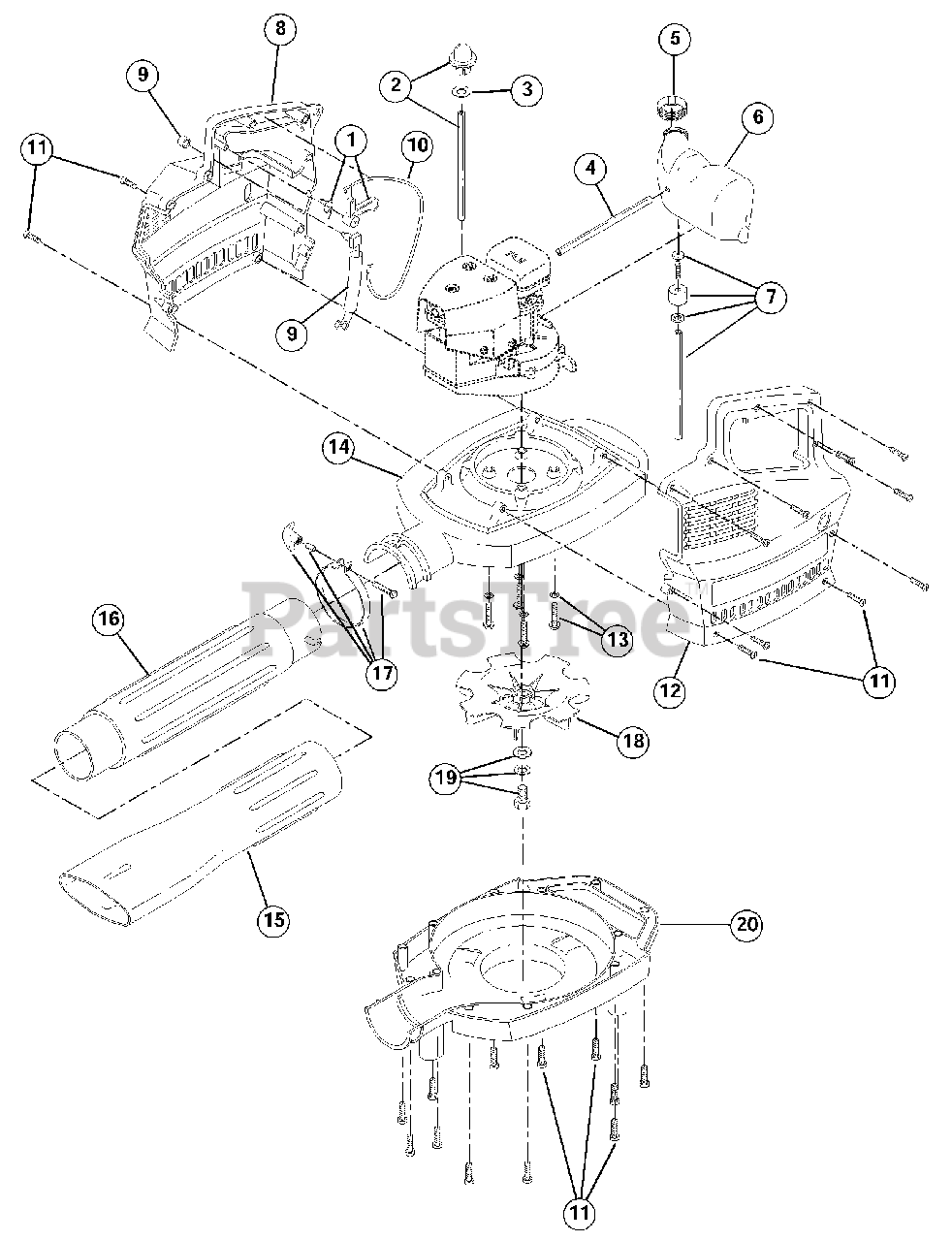

280r (41BR280C034) - Ryobi Blower Blower Parts Parts Diagram

Blower

Blower Parts Parts Diagram

  • Title

1

MTD 791-00036

Trigger Assembly

$

$

Not available

2

MTD 791-683974B

Primer Bulb and Hose Assembly

$22.99

$

In Stock, Qty 18

0

3

MTD 791-181671

Primer Washer

$

$

Not available

4

MTD 791-181168

Return Line
(Superseded to 791-181086)

$7.49

$

In Stock, Qty 20+

0

5

MTD 791-182438

Fuel Cap Assembly
(Superseded to 791-182612)

$20.99

$

In Stock, Qty 9

0

6

MTD 791-147350

Complete Fuel Tank Assembly

Note: (includes items 4, 5 and 7)

$

$

Not available

7

MTD 791-147036

Fuel Line Assembly

$

$

Not available

8

MTD 791-180484

R.H. Engine Cover

$

$

Not available

9

MTD 791-180450

Switch and Lead Assembly

$

$

Not available

10

MTD 791-181513

Throttle Wire and Housing Assembly

$

$

Not available

11

MTD 791-147049

Mounting Screw

$16.99

$

Usually ships in 3-6 days

0

12

MTD 791-180485

L.H. Engine Cover

$

$

Not available

13

MTD 791-180058

Mounting Screw Assembly

$

$

Not available

14

MTD 791-180478

Upper Blower Housing

$

$

Not available

15

MTD 791-180469

Blower Tube W/Nozzle

$

$

Not available

16

MTD 791-180480

Blower Tube

$

$

Not available

17

MTD 791-180481

Clamp Assembly

$

$

Not available

18

MTD 791-180453

Impeller

$

$

Not available

19

MTD 791-181514

Mounting Bolt Assembly

$

$

Not available

20

MTD 791-180482

Lower Blower Housing W/Door

$

$

Not available

MTD 791-682075B

Shoulder Strap

Note: Optional Accessory; not shown

$38.99

$

Usually ships in 3-6 days

0

MTD 791-147543

Ryobi 2-Cycle Oil

Note: Optional Accessory; not shown

$

$

Not available
