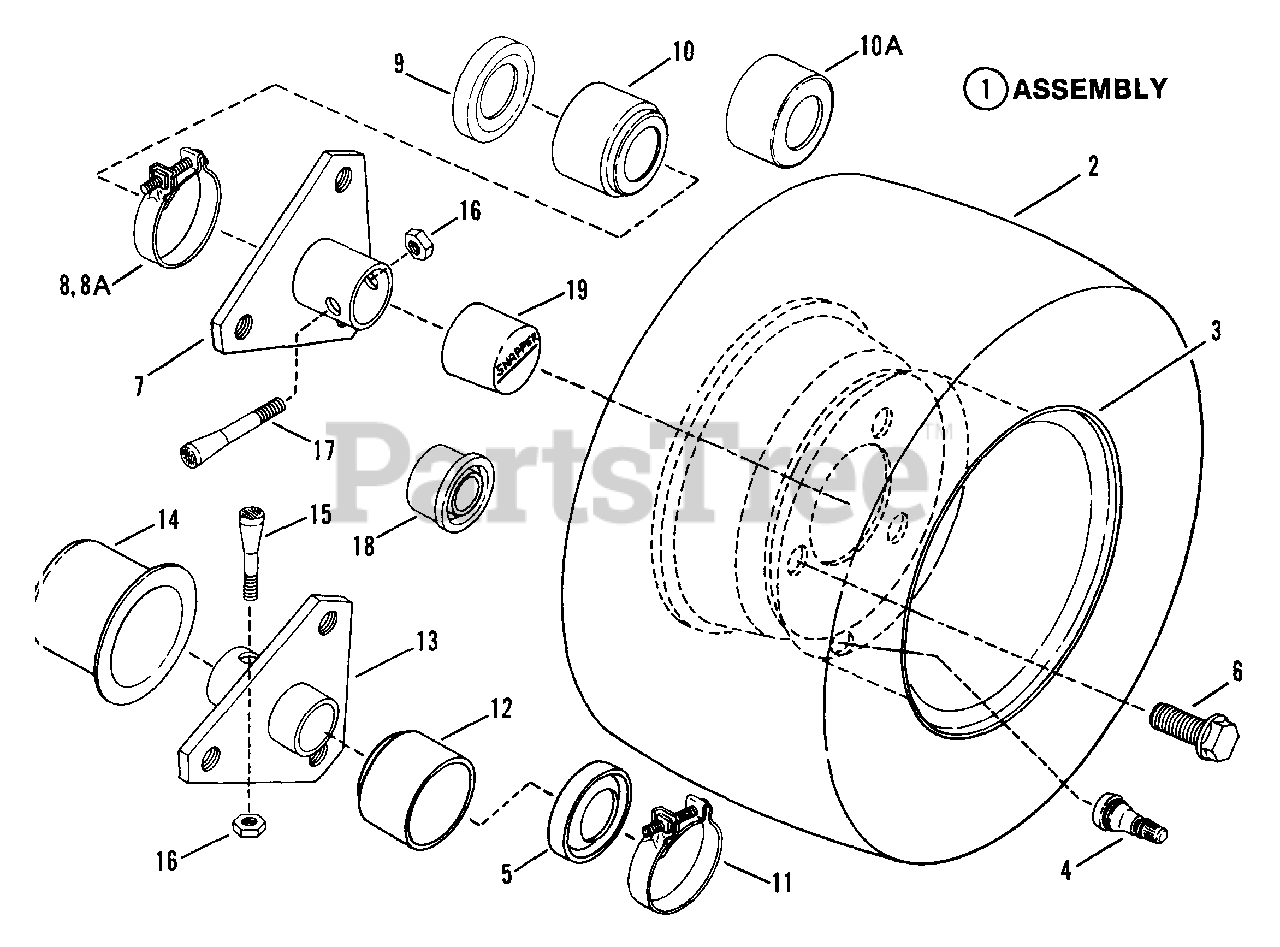

28088BE - Snapper 28" Rear-Engine Riding Mower, 8hp Wheels - Rear Parts Diagram

28" Rear-Engine Riding Mower, 8hp

Wheels - Rear Parts Diagram

  • Title

1

Snapper 7052306

ASSEMBLY, Rear Tire & Rim

Note: (Includes items 2,3, & 4); (25 & 26" Models) White

$

$

Not available

1

Snapper 7052269

ASSEMBLY, Rear Tire & Rim
(Superseded to 7052269YP)

Note: (Includes items 2,3, & 4); (25 & 26" Models) Gray

$152.99

$

In Stock, only 2 left!

0

1

Snapper 7052270

ASSEMBLY, Rear Tire & Rim
(Superseded to 7052270YP)

Note: (Includes items 2,3, & 4); (28,30 & 33" Models) Gray

$207.99

$

In Stock, only 1 left!

0

2

Snapper 7046245

TIRE, Wide, 16/6.50 x 8
(Superseded to 7073584YP)

Note: Was 15968 (For 28,30, & 33" Models)

$170.99

$

Usually ships in 2-12 days

0

2

Snapper 7023889

TIRE, Std., 16/4.80 x 8
(Superseded to 7023889YP)

Note: (For 25 & 26" Models)

$67.99

$

Usually ships in 2-12 days

0

3

Snapper 7012163

RIM, Wide, (For 16/6.50 x 8 Tire)
(Superseded to 7012163YP)

Note: (For 28, 30 & 33" Models)

$121.99

$

Usually ships in 2-12 days

0

3

Snapper 7017145

RIM, Std., (For 16/4.80 x 8 Tire)
(Superseded to 7017145YP)

Note: Was 12162 (For 25 & 26" Models)

$134.99

$

Usually ships in 2-12 days

0

4

Snapper 7012234

VALVE, Air (Snap-In)
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper 7014662

SEAL, OIL .750" ID x 1.832" OD (Left Hand)
(Superseded to 7014662YP)

$9.49

$

Usually ships in 2-12 days

0

6

Snapper 7091502

BOLT, 1/2 - 20 x 3/4" Lug
(Superseded to 703431)

Note: Was 90367

$4.99

$

In Stock, Qty 20+

0

7

Snapper 7040433

HUB, Wheel RH, 3 Hole 1" ID
(Superseded to 7040433YP)

$37.99

$

In Stock, Qty 13

0

8

Snapper 7014542

CLAMP, Right Hand 2.69"

Note: (For 12 & 14 HP Models)

$

$

Not available

8A

Snapper 7011037

CLAMP, Right Hand 1.875"
(Superseded to 7012332YP)

Note: (For 6.5 & 8 HP Models)

$6.99

$

In Stock, Qty 15

0

9

Snapper 7011817

SEAL 1.22" ID x 1.875" OD
(Superseded to 7011817YP)

$5.49

$

In Stock, Qty 20+

0

10

Snapper 7014541

BOOT, Right Hand (2.625" OD, 1" Hole)
(Superseded to 7014541YP)

Note: (For 12 & 14 HP Models)

$

$

Not available

10A

Snapper 7031732

BOOT, Right Hand (1.687" OD, 1" Hole)
(Superseded to 7031732YP)

Note: (For 6.5 & 8 HP Models)

$6.49

$

In Stock, Qty 20+

0

11

Snapper 7012332

CLAMP, 2" (Left Hand)
(Superseded to 7012332YP)

Note: (For 12 & 14 HP Models)

$6.99

$

In Stock, Qty 15

0

12

Snapper 7014658

BOOT, LH Ball Bearing Models 3/4"
(Superseded to 7014658YP)

Note: (For 12 & 14 HP Models)

$7.99

$

In Stock, Qty 20+

0

13

Snapper 7040434

HUB, Wheel LH, 3 Hole 3/4" ID
(Superseded to 7040434YP)

$

$

Not available

14

Snapper 7023522

HUB-CAP, Left Hand
(Superseded to 7023522YP)

$6.49

$

Usually ships in 2-12 days

0

15

Snapper 7011035

BOLT, 5/16 - 24 x 1-5/8" Tapered, Left Hand
(Superseded to 7011035YP)

$4.99

$

In Stock, Qty 20+

0

16

Snapper 7092062

NUT, 5/16 - 24 Lock
(Superseded to 703459)

Note: Was 11201

$3.49

$

In Stock, Qty 20+

0

17

Snapper 7011013

BOLT, 5/16
(Superseded to 7011013YP)

$6.49

$

In Stock, Qty 20+

0

18

Snapper 7014658

CAP, Seal L.H. Ball Bearing Models, 3/4"
(Superseded to 7014658YP)

Note: Was 10967 (Now 14658 + 14662 + 12332)

$7.99

$

In Stock, Qty 20+

0

19

Snapper 7023895

HUB-CAP, Right Hand
(Superseded to 7023895YP)

$6.99

$

In Stock, only 4 left!

0
