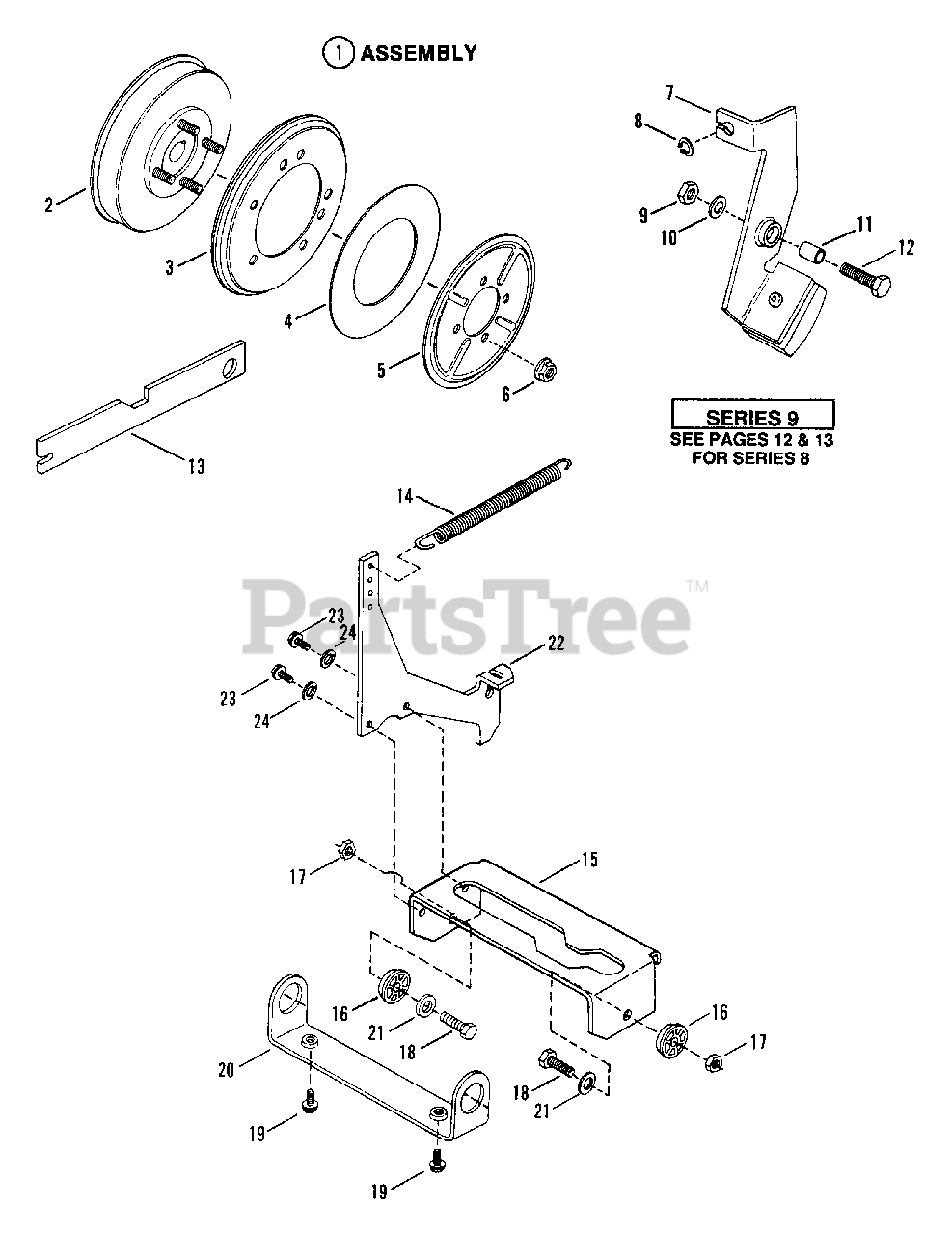

28088BE - Snapper 28" Rear-Engine Riding Mower, 8hp Smooth Clutch Assembly - Series 9 Parts Diagram

28" Rear-Engine Riding Mower, 8hp

Smooth Clutch Assembly - Series 9 Parts Diagram

  • Title

1

Snapper 7053114

ASSEMBLY, Smooth Clutch
(Superseded to 7600208YP)

Note: (Includes items 2 thru 6); Cannot be ordered as Assembly. Order parts separately.

$

$

Not available

2

Snapper 7059443

HUB, Driven Disc
(Superseded to 7600142YP)

Note: Was 57338

$42.99

$

In Stock, Qty 20+

0

3

Snapper 7053103

DISC, Driven
(Superseded to 7600135YP)

Note: Was 57423

$42.99

$

In Stock, Qty 20+

0

4

Snapper 7014523

WASHER, Thrust
(Superseded to 7014523YP)

$4.99

$

In Stock, Qty 20+

0

5

Snapper 7032331

PLATE
(Superseded to 7032331YP)

$18.99

$

In Stock, Qty 20+

0

6

Snapper 7091601

NUT, 5/16 - 18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

7

Snapper 7052497

ASSEMBLY, Brake Lever
(Superseded to 7052497YP)

Note: (Includes Brake Lining & Rivet)

$13.99

$

In Stock, Qty 20+

0

8

Snapper 7012313

RING, Retaining
(Superseded to 7012313SM)

$3.99

$

In Stock, Qty 14

0

9

Snapper 7090303

NUT, 1/4 - 28 Hex Lock
(Superseded to 703972)

$3.49

$

In Stock, Qty 8

0

10

Snapper 7091294

WASHER, 1/4 Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7010916

SPACER
(Superseded to 7010916YP)

$5.49

$

In Stock, Qty 10

0

12

Snapper 7090535

SCREW, 1/4 - 28 x 1" Hex Head Cap
(Superseded to 7090535YP)

$4.49

$

In Stock, only 2 left!

0

13

Snapper 7032392

* TOOL, Smooth Clutch

$31.99

$

In Stock, only 1 left!

0

14

Snapper 7012264

SPRING, Clutch Brake
(Superseded to 7012264YP)

$6.99

$

In Stock, Qty 18

0

15

Snapper 7033292

LIFT, Yoke
(Superseded to 7033292YP)

Note: Was 32985 (Now 33291 + 33292)

$38.99

$

In Stock, Qty 11

0

16

Snapper 7011048

BEARING, Yoke
(Superseded to 7011048YP)

$4.49

$

In Stock, Qty 20+

0

17

Snapper 7092062

NUT, 5/16 - 24 Hex Lock
(Superseded to 703459)

Note: Was 11201

$3.49

$

In Stock, Qty 20+

0

18

Snapper 7090233

SCREW, 5/16-24 x 3/4" Hex Head Cap
(Superseded to 703336)

$4.49

$

In Stock, Qty 5

0

19

Snapper 7090815

SCREW, 3/8 - 16 x 1/2" Self-Tapping
(Superseded to 703950)

Note: Was 90506

$5.49

$

In Stock, only 3 left!

0

20

Snapper 7033291

COLLAR, Yoke
(Superseded to 7033291YP)

Note: Was 38296

$56.99

$

In Stock, only 1 left!

0

21

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

22

Snapper 7032984

ARM, Yoke

$

$

Not available

23

Snapper 7090858

SCREW, 5/16 - 18 x 1/2" Hex Head Self-Tapping
(Superseded to 703985)

$4.49

$

In Stock, only 4 left!

0

24

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0
