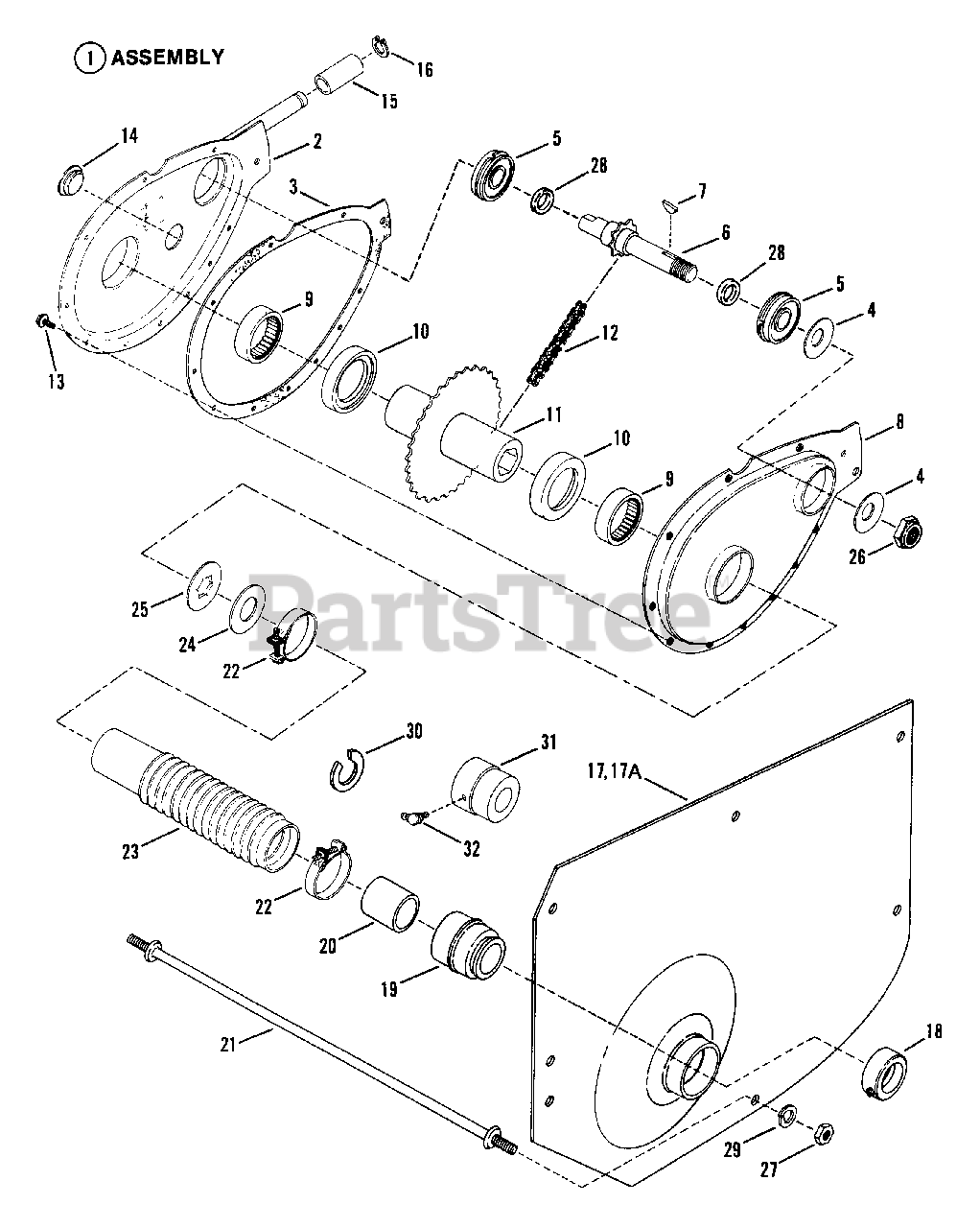

28088BE - Snapper 28" Rear-Engine Riding Mower, 8hp Chain Case, L.H. Fender Parts Diagram

28" Rear-Engine Riding Mower, 8hp

Chain Case, L.H. Fender Parts Diagram

  • Title

1

Snapper 7052160

ASSEMBLY, Chain Case

Note: (Includes items 2 thru 13, 15, 16, 33 thru 37)

$

$

Not available

2

Snapper 7047970

CASE, Sprocket
(Superseded to 7047970YP)

$76.99

$

Usually ships in 2-12 days

0

3

Snapper 7028761

GASKET, Case-Cover
(Superseded to 7028761YP)

Note: Was 18059

$24.99

$

In Stock, Qty 20+

0

4

Snapper 7011121

WASHER, .640 I.D. Belleville
(Superseded to 7011121SM)

$3.49

$

In Stock, Qty 20+

0

5

Snapper 7010756

BEARING, Ball
(Superseded to 7010756YP)

$11.99

$

In Stock, Qty 20+

0

6

Snapper 7018963

SPROCKET & SHAFT
(Superseded to 7018963YP)

$96.99

$

In Stock, only 3 left!

0

7

Snapper 7010614

KEY, Woodruff
(Superseded to 7010614YP)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 7039778

COVER, Chain Case
(Superseded to 7039778YP)

$43.99

$

Usually ships in 2-12 days

0

9

Snapper 7010942

BEARING, Needle
(Superseded to 7010942YP)

$13.99

$

In Stock, Qty 20+

0

10

Snapper 7011086

WASHER, Nylon Thrust
(Superseded to 7011086YP)

$4.49

$

In Stock, Qty 12

0

11

Snapper 7040355

HUB & SPROCKET
(Superseded to 7040355YP)

$245.99

$

Usually ships in 2-12 days

0

12

Snapper 7010941

CHAIN
(Superseded to 7010941YP)

$14.99

$

In Stock, Qty 20+

0

13

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

Note: Was 90307

$3.49

$

In Stock, Qty 11

0

14

Snapper 7011024

PLUG, Oil Fill & Check
(Superseded to 7011024YP)

$2.99

$

In Stock, Qty 20+

0

15

Snapper 7020908

ROLLER
(Superseded to 7020908YP)

$4.49

$

In Stock, only 3 left!

0

16

Snapper 7010776

RING, Retaining
(Superseded to 7010776YP)

$3.99

$

In Stock, only 1 left!

0

17

Snapper 7037958

FENDER, Left Hand (1.744" I.D. Hole)

Note: (For 12 & 14 HP Models)

$

$

Not available

17A

Snapper 7037285

FENDER, Left Hand (1.628" I.D. Hole)
(Superseded to 7301302YP)

Note: (For 6.5 & 8 HP Models)

$0.00

$

Usually ships in 2-12 days

0

18

Snapper 7014625

COLLAR, Lock
(Superseded to 7014625YP)

Note: (Includes 1/4C x 1/4" Set Screw #9-0776)

$11.99

$

In Stock, Qty 11

0

19

Snapper 7014624

BEARING, Left Hand Fender
(Superseded to 7014624YP)

Note: (For 12 & 14 HP Models)

$

$

Not available

20

Snapper 7023447

SPACER, Left Hand
(Superseded to 7023447YP)

Note: Was 32114 (For 12 & 14 HP Models)

$4.49

$

In Stock, Qty 20+

0

21

Snapper 7011070

ROD, Cross-Tie
(Superseded to 7011070YP)

$20.99

$

In Stock, only 3 left!

0

22

Snapper 7011037

CLAMP, Boot
(Superseded to 7012332YP)

$6.99

$

In Stock, Qty 15

0

23

Snapper 7075115

BOOT, Oil Seal
(Superseded to 7075115YP)

Note: Was 17084

$10.99

$

In Stock, Qty 20+

0

24

Snapper 7011071

WASHER, Thrust Nylon
(Superseded to 7011071YP)

$3.99

$

In Stock, Qty 20+

0

25

Snapper 7011072

WASHER, Thrust
(Superseded to 7011072YP)

$5.99

$

In Stock, Qty 20+

0

26

Snapper 7091505

NUT, 5/8 - 18 Hex, E.E.S.
(Superseded to 703432)

Note: Was 91062

$

$

Not available

27

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

28

Snapper 7019260

"O" - RING
(Superseded to 7019260YP)

$3.49

$

In Stock, Qty 20+

0

29

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

30

Snapper 7012271

WASHER, Shim
(Superseded to 7011071YP)

Note: (As Required)

$3.99

$

In Stock, Qty 20+

0

31

Snapper 7050918

BEARING, Left Hand Fender
(Superseded to 7050918YP)

Note: (Includes item 32); (For 6.5 & 8 HP Models)

$

$

Not available

32

Snapper 7013324

FITTING, Lube
(Superseded to 7013324YP)

Note: (For 6.5 & 8 HP Models)

$7.99

$

In Stock, Qty 6

0

?33

Snapper 7052143

ASSEMBLY, Brake Lever
(Superseded to 7052497YP)

$13.99

$

In Stock, Qty 20+

0

?34

Snapper 7010916

SPACER, Split
(Superseded to 7010916YP)

$5.49

$

In Stock, Qty 9

0

?35

Snapper 7090535

SCREW, 1/4-28 x 1" Hex Head Cap
(Superseded to 7090535YP)

$4.49

$

In Stock, only 1 left!

0

?36

Snapper 7091294

WASHER, 1/4" Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

?37

Snapper 7090303

NUT, 1/4-28 Hex Lock
(Superseded to 703972)

$3.49

$

In Stock, Qty 7

0

Snapper 7051451

ASSEMBLY, Left Hand Fender

$

$

Not available

Snapper 7090776

SET SCREW
(Superseded to 7090776YP)

$4.49

$

In Stock, Qty 15

0
