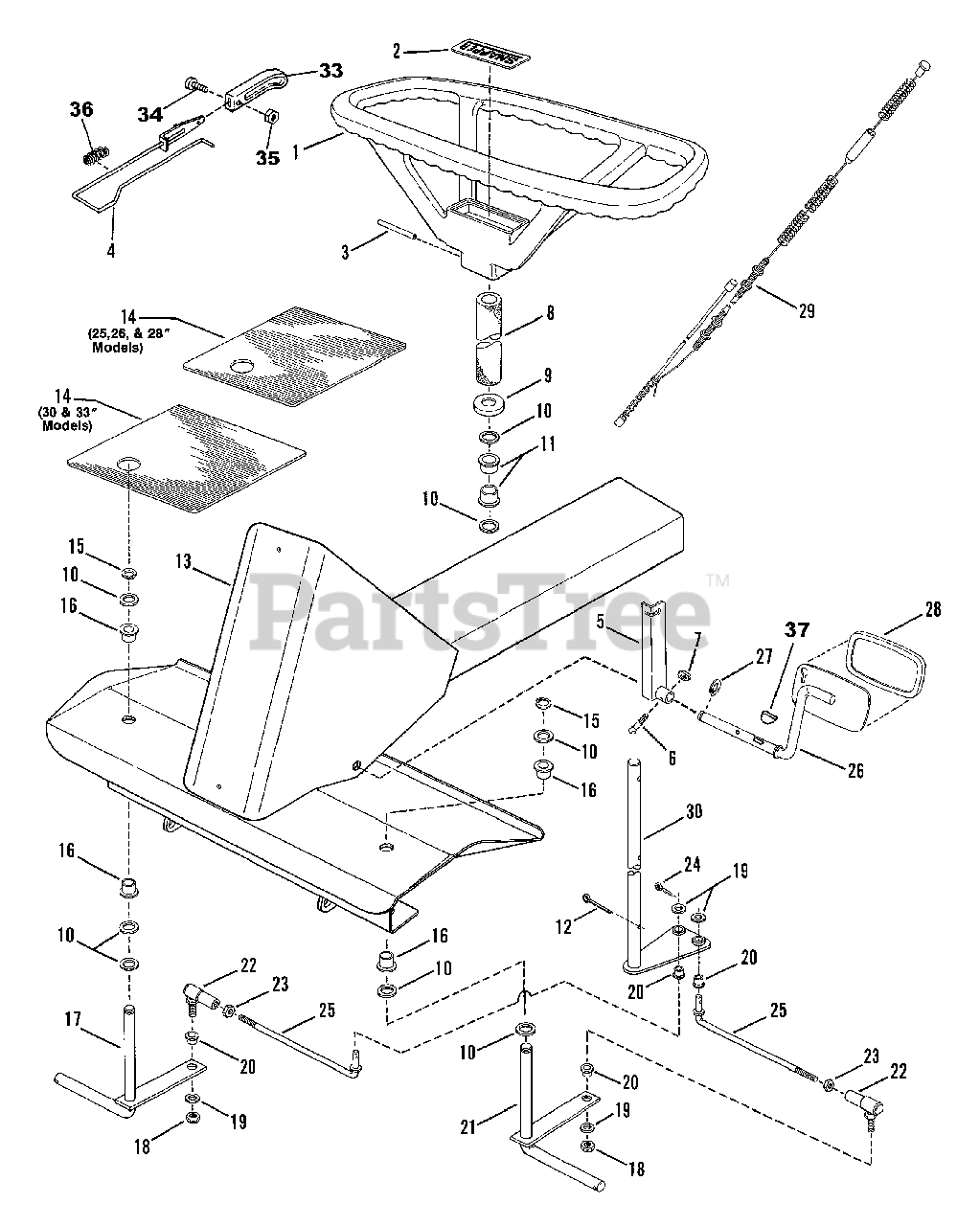

28087B (81850) - Snapper 28" Rear-Engine Riding Mower, 8hp Front End Steering (Part 1) Parts Diagram

28" Rear-Engine Riding Mower, 8hp

Front End Steering (Part 1) Parts Diagram

  • Title

1

Snapper 7051941

ASS'Y, Steering Wheel
(Superseded to 7051941YP)

Note: (Incl. Item 2)(60950, Conversion Kit)

$179.99

$

In Stock, only 1 left!

0

2

Snapper 7023781

DECAL, Snapper
(Superseded to 7023781YP)

$15.99

$

In Stock, only 1 left!

0

3

Snapper 7013862

PIN, 1/4 x 1-1/2" Roll
(Superseded to 7013862YP)

$4.49

$

In Stock, Qty 12

0

4

Snapper 7040636

BRACKET, Clutch/Brake
(Superseded to 7040636YP)

$26.99

$

Usually ships in 2-12 days

0

5

Snapper 7040955

ARM, Clutch/Brake

Note: (61148, Pedal Arm Kit)

$

$

Currently unavailable

6

Snapper 7023821

BOLT, #10-32 x 1-3/8" Tapered

$

$

Not available

7

Snapper 7090885

NUT, #10-32 Hex Lock

$

$

Not available

8

Snapper 7023667

COVER, Steering Shaft (Foam)
(Superseded to 7023667YP)

$8.49

$

In Stock, only 3 left!

0

9

Snapper 7023671

COVER
(Superseded to 7023671YP)

$4.49

$

In Stock, Qty 5

0

10

Snapper 7010935

WASHER, 3/4 Flat
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

11

Snapper 7019166

BUSHING, 3/4" Steering Shaft
(Superseded to 7019166YP)

$4.49

$

In Stock, Qty 5

0

12

Snapper 7091515

COTTER-PIN 3/16 x 1-1/2"
(Superseded to 703983)

Note: Was 90753

$4.49

$

In Stock, Qty 9

0

13

Snapper 7040592

FRAME, Front (25, 26 & 28" Models)

$

$

Not available

Snapper 7040589

FRAME, Front (30 & 33" Models)
(Superseded to 7040589YP)

$569.99

$

Usually ships in 2-12 days

0

14

Snapper 7023660

PAD, Foot, Right Side Shown (25, 26 & 28" Models)

$

$

Not available

Snapper 7023663

PAD, Foot, Right Side Shown (30 & 33" Models)
(Superseded to 7023663YP)

$9.49

$

Usually ships in 2-12 days

0

Snapper 7023659

PAD, Foot, Left Side (25, 26 & 28" Models)

Note: (Not Shown)

$

$

Not available

Snapper 7023662

PAD, Foot, Left Side (30 & 33" Models)

Note: (Not Shown)

$

$

Not available

15

Snapper 7010746

RING, Retaining 92)
(Superseded to 703975)

$3.99

$

In Stock, Qty 19

0

16

Snapper 7010986

BEARING
(Superseded to 7010986YP)

$4.49

$

In Stock, Qty 20+

0

17

Snapper 7041730

King Pin, R.H.

Note: Was 40361

$

$

Not available

18

Snapper 7090289

NUT, 3/8-24 Hex Lock
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

19

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

20

Snapper 7013321

BUSHING
(Superseded to 7013321YP)

$4.49

$

In Stock, Qty 20+

0

21

Snapper 7041731

King Pin, L.H.

Note: Was 40362

$

$

Not available

22

Snapper 7010745

BALL JOINT, 3/8-24 Thread
(Superseded to 1669567SM)

$15.99

$

In Stock, Qty 10

0

23

Snapper 7091630

NUT, 3/8-24 Hex
(Superseded to 703895)

Note: Was 90155

$4.49

$

In Stock, only 1 left!

0

24

Snapper 7091598

COTTER-PIN, 1/8 x 3/4"
(Superseded to 703958)

Note: Was 90365

$4.49

$

In Stock, only 4 left!

0

25

Snapper 7023819

TIE-ROD (30 & 33" Models)
(Superseded to 7023819YP)

$

$

Not available

26

Snapper 7040975

PEDAL, Clutch/Brake
(Superseded to 7040975YP)

Note: Was 40590

$74.99

$

Usually ships in 2-12 days

0

27

Snapper 7010776

RING, Retaining
(Superseded to 7010776YP)

$3.99

$

In Stock, only 2 left!

0

28

Snapper 7011815

PAD, Clutch/Brake Pedal
(Superseded to 7011815YP)

$11.99

$

In Stock, only 3 left!

0

29

Snapper 7016754

CABLE, Clutch/Brake
(Superseded to 7016754YP)

Note: Was 19238

$51.99

$

In Stock, only 1 left!

0

30

Snapper 7040593

SHAFT, Steering

$93.99

$

Usually ships in 2-12 days

0

33

Snapper 7023655

KNOB
(Superseded to 7023655YP)

$

$

Not available

34

Snapper 7091017

SCREW, #8-32 x 3/8" Rec. Filister Head
(Superseded to 7091017YP)

$3.99

$

In Stock, only 4 left!

0

35

Snapper 7091018

NUT, #8-32 Hex
(Superseded to 7091018YP)

$3.99

$

In Stock, Qty 9

0

36

Snapper 7023666

SPRING
(Superseded to 7023666YP)

$4.49

$

Usually ships in 2-12 days

0

37

Snapper 7010008

KEY, (#6) 5/32 x 5/8" Woodruff
(Superseded to 7010008YP)

Note: (Included in 61148 Clutch/Brake Pedal Conversion Kit)

$4.49

$

Usually ships in 2-12 days

0

Snapper 7061148

Clutch/Brake Pedal Conversion Kit

$

$

Not available
