28083 (89594) - Snapper 28" Rear-Engine Riding Mower, 8hp Exhaust - 8HP Engines Parts Diagram

28" Rear-Engine Riding Mower, 8hp

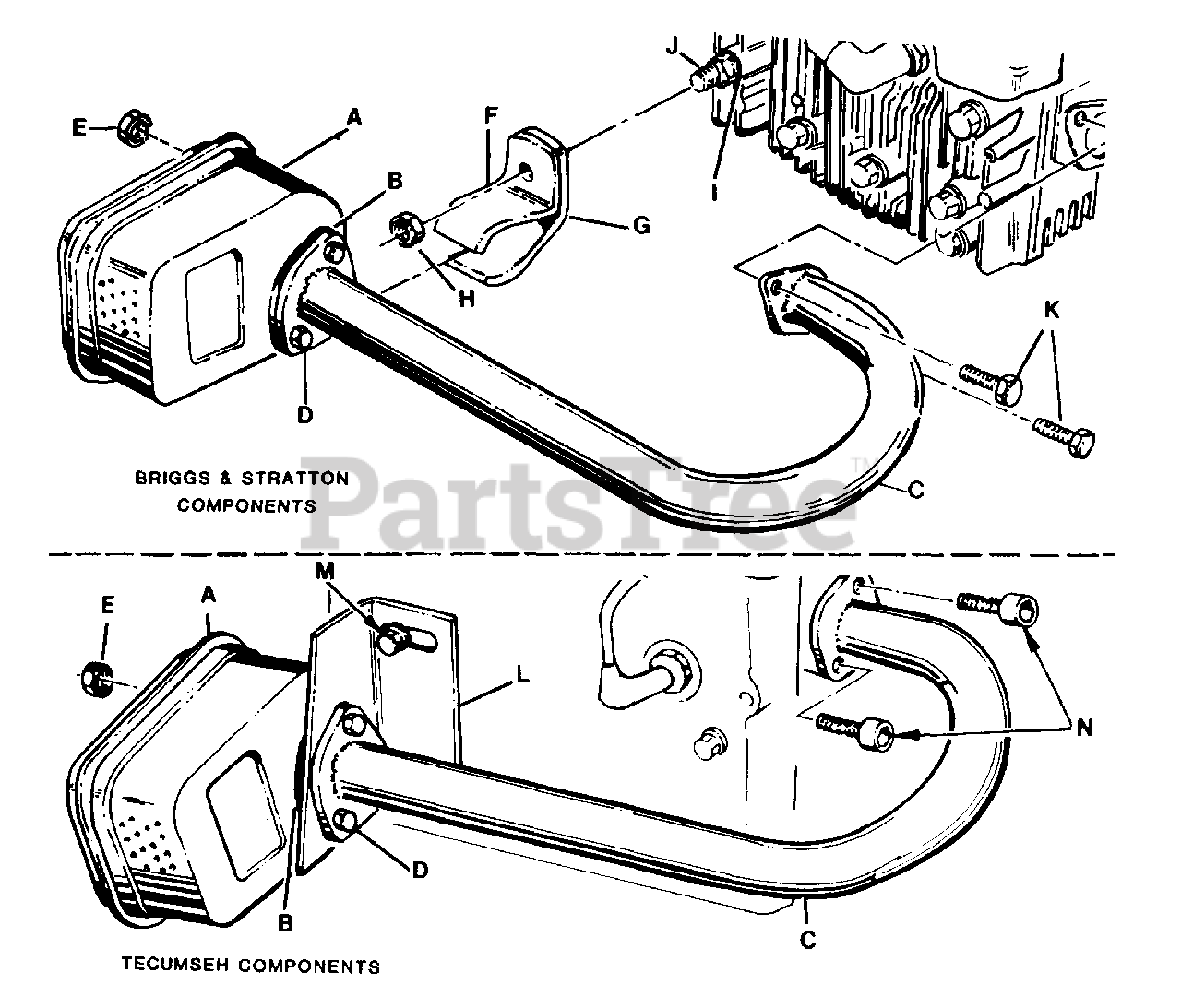

Exhaust - 8HP Engines Parts Diagram

  • Title

A

Snapper 7018198

MUFFLER
(Superseded to 7018198YP)

$32.99

$

Usually ships in 2-12 days

0

B

Snapper 7012422

GASKET

$3.49

$

Usually ships in 2-12 days

0

C

Snapper 7018197

TUBE, EXHAUST
(Superseded to 7018197YP)

$137.99

$

In Stock, only 1 left!

0

D

Snapper 7091830

CAPSCREW, 5/16C x 3" HEX HEAD
(Superseded to 703870)

Note: Was 90553

$4.49

$

Usually ships in 2-12 days

0

E

Snapper 7091575

LOCKNUT, 5/16C HEX
(Superseded to 703164)

Note: Was 90184

$3.49

$

In Stock, Qty 17

0

F

Snapper 7032414

CLIP, TOP
(Superseded to 7032414YP)

Note: Was 31959 (FOR B&S ENGINE)

$25.99

$

In Stock, only 2 left!

0

G

Snapper 7032414

CLIP, BOTTOM
(Superseded to 7032414YP)

Note: Was 31957 (FOR B&S ENGINE)

$25.99

$

In Stock, only 2 left!

0

H

Snapper 7091511

NUT, 5/16-18 HEX
(Superseded to 7091511SM)

Note: Was 90196 (FOR B&S ENGINE)

$3.49

$

In Stock, Qty 20+

0

I

Snapper 7012418

WASHER, FLAT

Note: (FOR B&S ENGINE)

$

$

Not available

J

Snapper 7012419

STUD, CYLINDER HEAD
(Superseded to 7012419YP)

Note: (FOR B&S ENGINE)

$8.49

$

Usually ships in 2-12 days

0

K

Snapper 7090072

CAPSCREW, 1/4-20 x 5/8 HEX HEAD
(Superseded to 001X38MA)

Note: (FOR B&S ENGINE)

$4.49

$

In Stock, Qty 10

0

L

Snapper 7031958

CLIP, MOUNTING
(Superseded to 7031958YP)

Note: (FOR TECUMSEH ENGINE)

$23.99

$

In Stock, only 1 left!

0

M

Snapper 7091819

SCREW, 1/4C x 5/8 SELF-TAPPING
(Superseded to 703054)

Note: Was 90362 (FOR TECUMSEH ENGINE)

$4.49

$

In Stock, Qty 5

0

N

Snapper 7091318

SETSCREW, 5/16C x 3/4 FLANGE
(Superseded to 704287)

Note: Was 12438 (FOR TECUMSEH ENGINE)

$3.99

$

In Stock, Qty 8

0

Snapper 7060316

MUFFLER KIT

$182.99

$

In Stock, only 1 left!

0
