280813BE (80566) - Snapper 28" Rear-Engine Riding Mower, 8hp Throttle Control Parts Diagram

28" Rear-Engine Riding Mower, 8hp

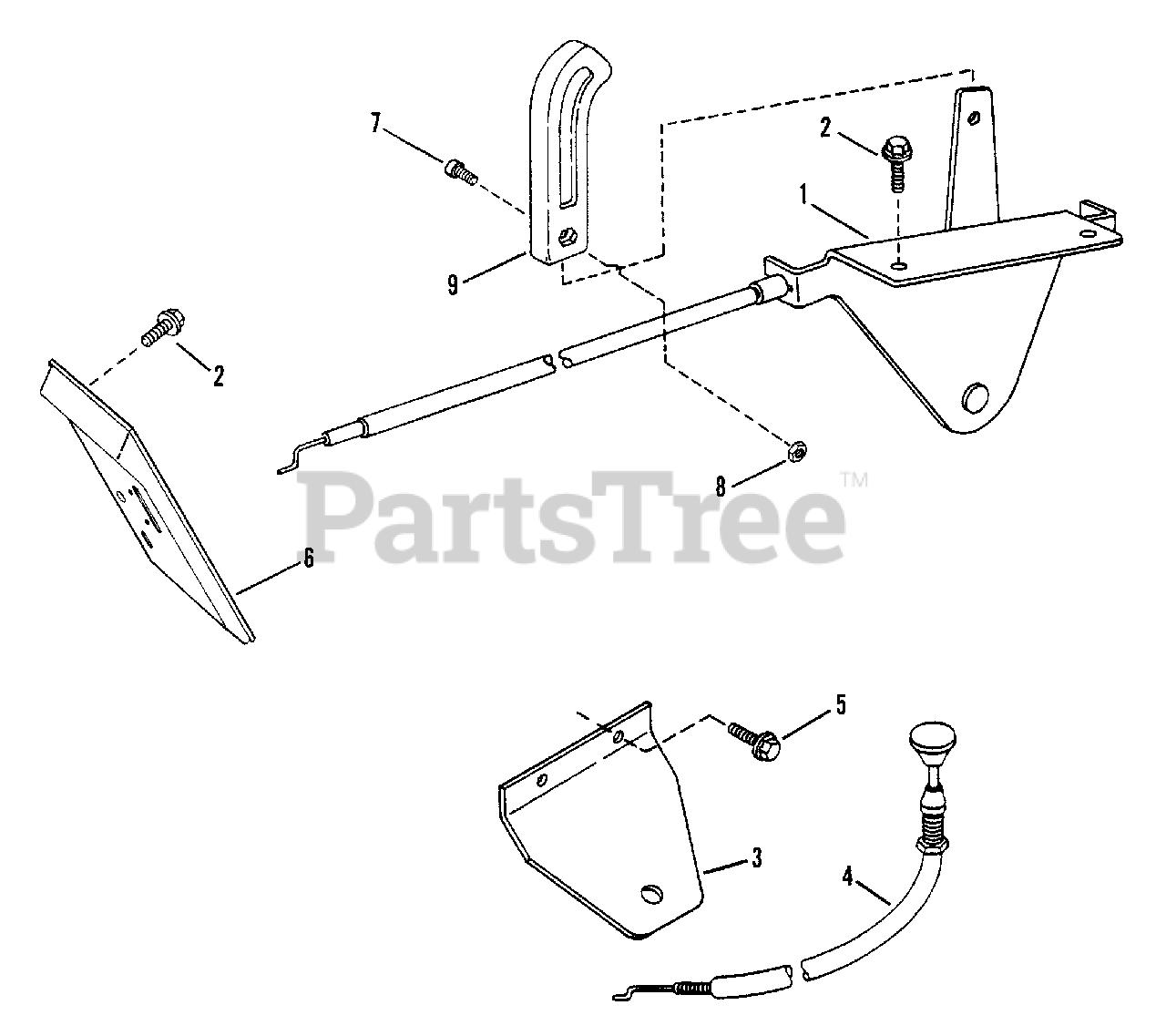

Throttle Control Parts Diagram

  • Title
1

Snapper 7024155

CONTROL, Throttle
(Superseded to 7024155YP)

$36.99

$

In Stock, only 3 left!

0

Snapper 7022483

CONTROL, Throttle
(Superseded to 7022483YP)

Note: (14 HP Kohler)

$35.99

$

In Stock, only 2 left!

0

Snapper 7024242

CONTROL, Throttle
(Superseded to 7024242YP)

Note: (16 HP Briggs)

$

$

Not available

2

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 11

0

3

Snapper 7033569

PLATE, Throttle Control
(Superseded to 7033569YP)

Note: (41" Models Only)

$39.99

$

Usually ships in 2-12 days

0

4

Snapper 7024185

CONTROL, Choke
(Superseded to 7024185YP)

Note: (41" Models Only)

$31.99

$

In Stock, only 1 left!

0

5

Snapper 7091819

SCREW, 1/4-20 x 5/8" Self-Tapping
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, Qty 5

0

6

Snapper 7023665

COVER, Dash Panel

$

$

Not available

7

Snapper 7091017

SCREW, #8-32 x 3/8" Cross Recess Filister
(Superseded to 7091017YP)

$3.99

$

In Stock, only 4 left!

0

8

Snapper 7091018

NUT, #8-32 Hex
(Superseded to 7091018YP)

$3.99

$

In Stock, Qty 9

0

9

Snapper 7023655

KNOB, Throttle Control
(Superseded to 7023655YP)

$

$

Not available
