280812BE (80422) - Snapper 28" Rear-Engine Riding Mower, 8hp Exhaust Muffler & Engines Parts Diagram

28" Rear-Engine Riding Mower, 8hp

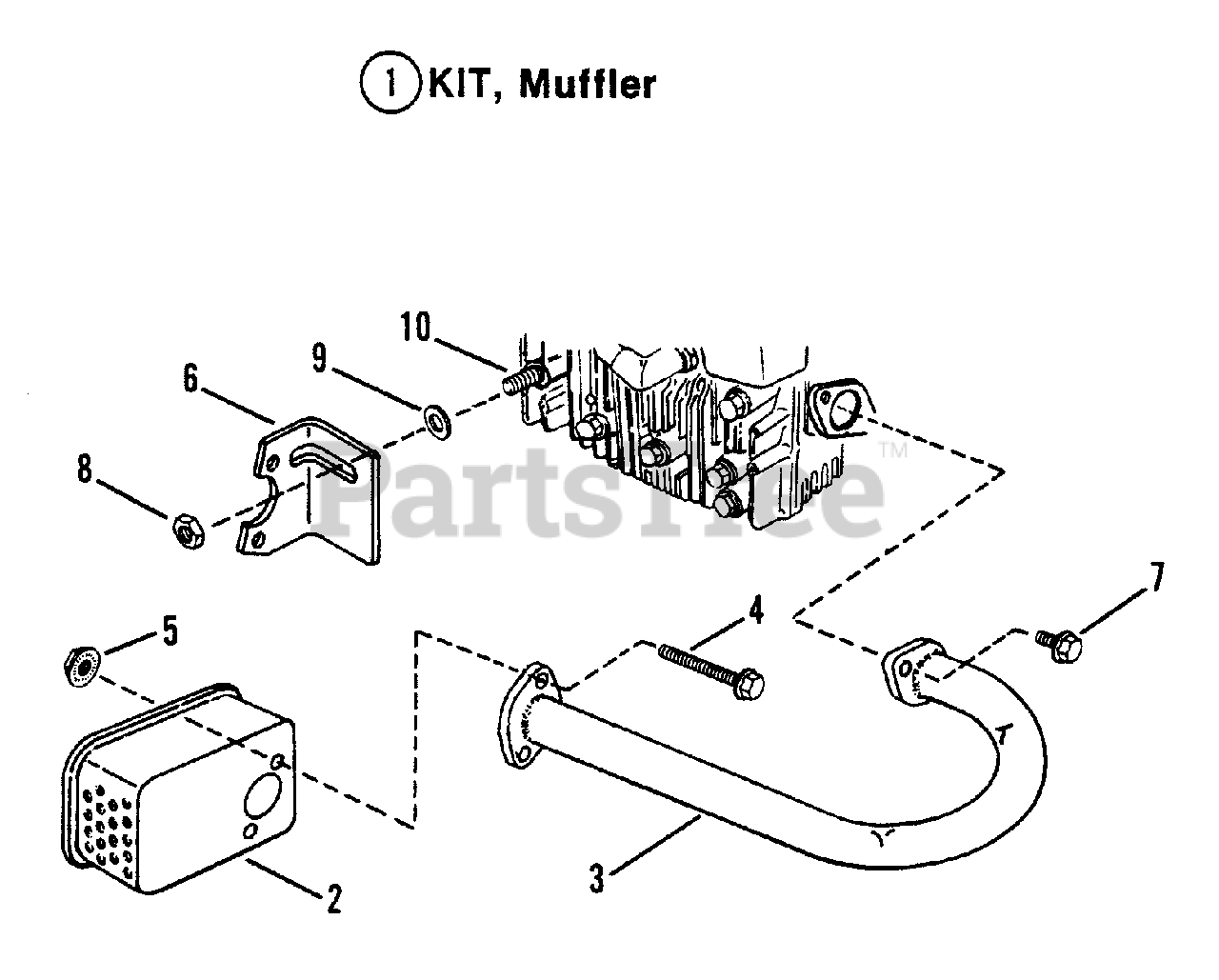

Exhaust Muffler & Engines Parts Diagram

  • Title

1

Snapper 7060316

KIT, Muffler

Note: (Includes Items 2 Thru 10)

$182.99

$

In Stock, only 1 left!

0

2

Snapper 7018198

MUFFLER
(Superseded to 7018198YP)

$32.99

$

Usually ships in 2-12 days

0

3

Snapper 7018197

TUBE, Exhaust
(Superseded to 7018197YP)

$137.99

$

In Stock, only 1 left!

0

Snapper 7060489

BAG Hardware

Note: (Includes Items 4 Thru 10)

$

$

Not available

4

Snapper 7091830

SCREW, 5/16-18 x 3" Hex Head Cap
(Superseded to 703870)

Note: Was 90553

$4.49

$

Usually ships in 2-12 days

0

5

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

6

Snapper 7032414

BRACKET, Muffler
(Superseded to 7032414YP)

$25.99

$

In Stock, only 2 left!

0

7

Snapper 7090072

SCREW, 1/4-20 x 5/8" Hex Head Cap
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

8

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

9

Snapper 7012418

WASHER, 21/64 Flat

$

$

Not available

10

Snapper 7012419

STUD, Cylinder Head
(Superseded to 7012419YP)

$8.49

$

Usually ships in 2-12 days

0

ENGINE, 8 HP Electric Start (B&S 195707-0133-01)

$

$

Not available

ENGINE, 8 HP (B&S 195702-0140-01)

$

$

Not available

Snapper 7022263

6 H.P. Tec. Engine, Recoil Start

$

$

Currently unavailable
