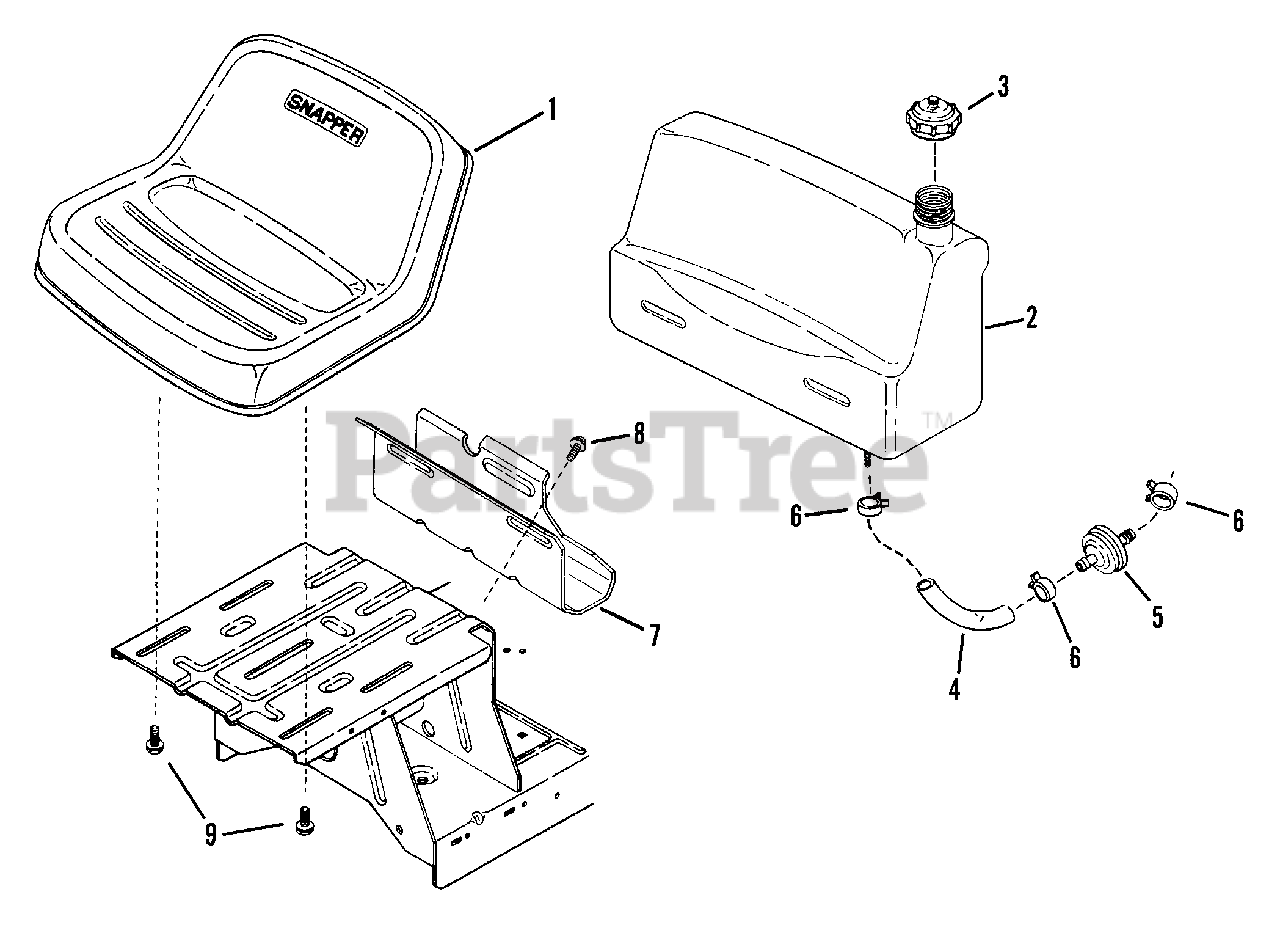

280810T (80249) - Snapper 28" Rear-Engine Riding Mower, 8hp Fuel Tank & Operators Seat Parts Diagram

28" Rear-Engine Riding Mower, 8hp

Fuel Tank & Operators Seat Parts Diagram

  • Title

1

Snapper 7028650

SEAT, Operator
(Superseded to 7028650YP)

Note: Was 16749

$262.99

$

Usually ships in 2-12 days

0

2

Snapper 7051905

ASSEMBLY, Fuel Tank
(Superseded to 7051905YP)

Note: (Includes Item 3)

$201.99

$

In Stock, only 2 left!

0

3

Snapper 7012515

CAP, Fuel Tank
(Superseded to 7012515YP)

$19.99

$

In Stock, only 3 left!

0

4

Snapper 7032015

HOSE, Fuel (7" Long)
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

Snapper 7073240

HOSE, Fuel (5" Long)
(Superseded to 7073240SM)

Note: Was 32038

$24.99

$

Usually ships in 2-12 days

0

Snapper 7076272

HOSE, Fuel (8-1/2" Long)
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

5

Snapper 7014359

FILTER, Fuel (In-Line)
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

6

Snapper 7029900

CLAMP, Fuel Line
(Superseded to 791850)

Note: Was 12222

$3.49

$

In Stock, Qty 20+

0

7

Snapper 7033377

BRACKET, Fuel Tank (Rear)
(Superseded to 7033377BMYP)

$

$

Not available

8

Snapper 7091001

SCREW, 5/16-18 x 5/8" Self-Tapping
(Superseded to 1960086SM)

$4.99

$

In Stock, only 2 left!

0

9

Snapper 7091038

BOLT, 5/16-18 x 1/2" Hex Flange Lock
(Superseded to 7091038YP)

$4.49

$

In Stock, Qty 9

0
