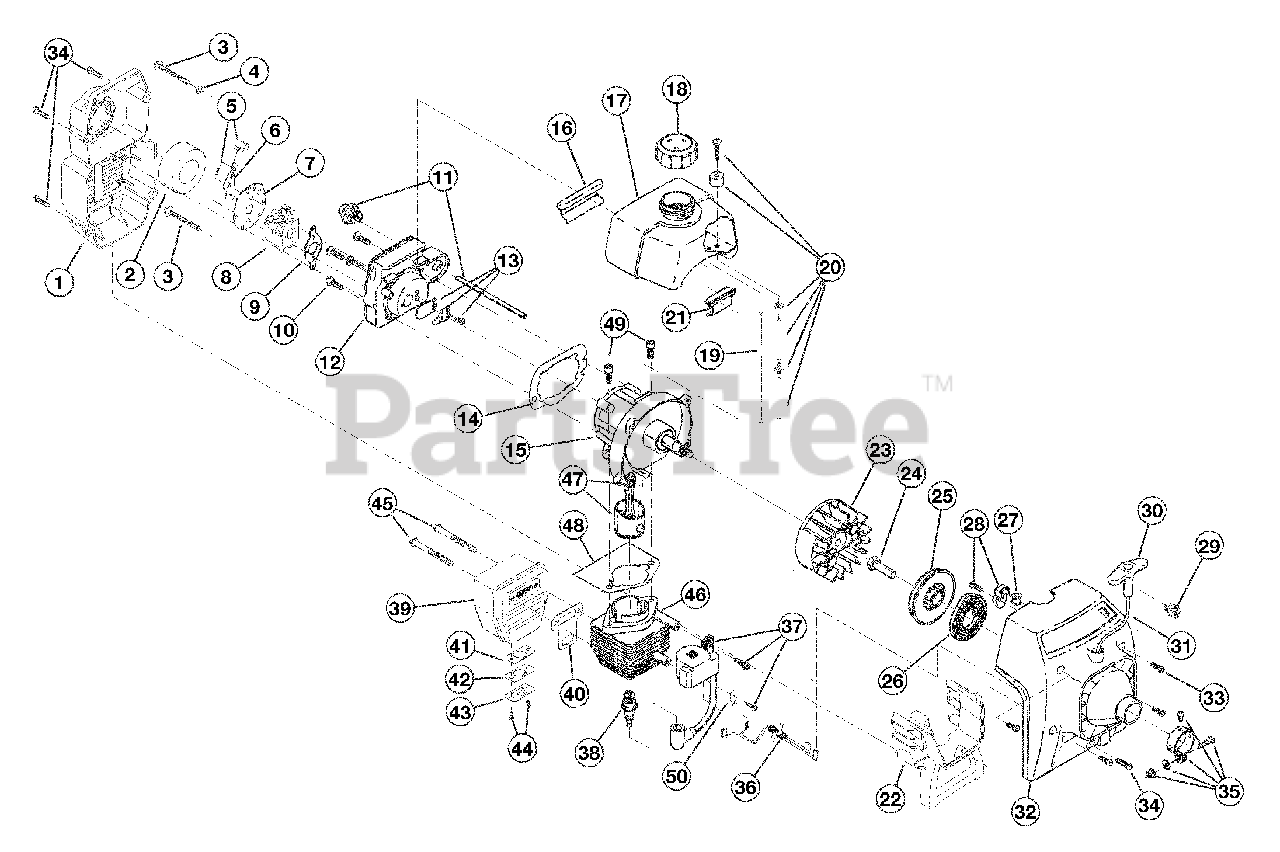

2800m (41BD280G700) - Ryobi String Trimmer Engine Parts Parts Diagram

String Trimmer

Engine Parts Parts Diagram

  • Title

1

MTD 753-04511

Air Cleaner/Muffler Cover Assembly

Note: (includes 2 & 34)

$38.99

$

Usually ships in 3-6 days

0

2

MTD 791-180350B

Air Cleaner Filter

$9.99

$

In Stock, only 1 left!

0

3

MTD 791-180351

Carburetor Mounting Screws

$

$

Not available

4

MTD 791-180226

Wavey Washer
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

5

MTD 791-182161

Choke Knob & Screw
(Superseded to 791-182202)

$

$

Not available

6

MTD 753-04418

Choke Lever Assembly

Note: (includes 5)

$

$

Not available

7

MTD 753-04419

Choke Lever & Plate

Note: (includes 6)

$

$

Not available

8

MTD 753-04106

Carburetor Assembly

Note: (includes 9)

$69.99

$

In Stock, only 1 left!

0

9

MTD 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 19

0

10

MTD 791-181860

Carb Mount Screw

$

$

Not available

11

MTD 791-683974B

Primer and Hose Assembly

$22.99

$

In Stock, Qty 18

0

12

MTD 753-1196

Carburetor Mount Assembly

Note: (includes 10, 13 & 14)

$

$

Not available

13

MTD 791-684451

Reed Assembly

$

$

Not available

14

MTD 753-1208

Carburetor Mount Gasket

$16.99

$

In Stock, only 1 left!

0

15

MTD 753-04321

Crankcase Service Assembly

Note: (includes 10)

$

$

Not available

16

MTD 791-612134

Rear Mounting Pad

$

$

Not available

17

MTD 791-181152

Fuel Tank Assembly

Note: (includes 18-20)

$

$

Not available

18

MTD 791-182612

Fuel Cap Assembly

$20.99

$

In Stock, Qty 9

0

19

MTD 791-181086

Fuel Return Line

$7.49

$

In Stock, Qty 20+

0

20

MTD 791-683398

Fuel Line Assembly

$

$

Not available

21

MTD 791-145308

Front Mounting Pad

$

$

Not available

22

MTD 753-04702

Shroud Extension and Stand

Note: (includes 34)

$29.99

$

Usually ships in 3-6 days

0

23

MTD 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$76.99

$

In Stock, only 2 left!

0

24

MTD 791-610303

Square Nut Drive

$

$

Not available

25

MTD 753-04232

Recoil Pulley

$

$

Not available

26

MTD 791-613102

Recoil Spring

$26.99

$

Usually ships in 3-6 days

0

27

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

28

MTD 791-181889

Pulley Retainer Assembly

$6.49

$

Usually ships in 3-6 days

0

29

MTD 753-04241

Switch Assembly

Note: (includes 36)

$

$

Not available

30

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 1 left!

0

31

MTD 791-613103

Rope

$10.99

$

In Stock, only 2 left!

0

32

MTD 753-04329

Starter Housing Assembly

Note: (includes 23-31, 33 & 34)

$

$

Not available

33

MTD 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

34

MTD 791-181345

Cover Screw

$4.49

$

In Stock, only 4 left!

0

35

MTD 791-153597

Upper Clamp Assembly

$

$

Not available

36

MTD 753-04242

Wire Lead
(Superseded to 794-00028)

$9.49

$

Usually ships in 3-6 days

0

37

MTD 753-04324

Module Assembly

$110.99

$

In Stock, only 1 left!

0

38

MTD 791-610311B

Spark Plug

$14.99

$

In Stock, only 3 left!

0

39

MTD 753-04618

Muffler Assembly
(Superseded to 753-05169)

Note: (includes 40-45)

$112.99

$

Usually ships in 3-6 days

0

40

MTD 753-04619

Exhaust Gasket

$9.49

$

In Stock, only 1 left!

0

41

MTD 753-04689

Spark Arrestor

$

$

Not available

42

MTD 753-04690

Exhaust Hood Diverter

$

$

Not available

43

MTD 753-04691

Exhaust Hood

$

$

Not available

44

MTD 753-04315

Screw
(Superseded to 753-04110)

$

$

Not available

45

MTD 753-04620

Muffler Mounting Bolt Assembly
(Superseded to 710-04188A)

$4.49

$

Usually ships in 3-6 days

0

46

MTD 753-04323

Cylinder Assembly
(Superseded to 753-04814)

Note: (includes 48 & 49)

$83.99

$

In Stock, only 1 left!

0

47

MTD 753-04367

Piston & Rod Assembly

$

$

Not available

48

MTD 753-1197

Cylinder Gasket

$

$

Not available

49

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 13

0

50

MTD 791-611063

Ground Tab

$

$

Not available

MTD 753-1209

Piston Ring

Note: not shown

$52.99

$

Usually ships in 3-6 days

0

MTD 753-04322

Short Block Assembly

Note: (includes 15, 38, 46-49) not shown

$

$

Not available
