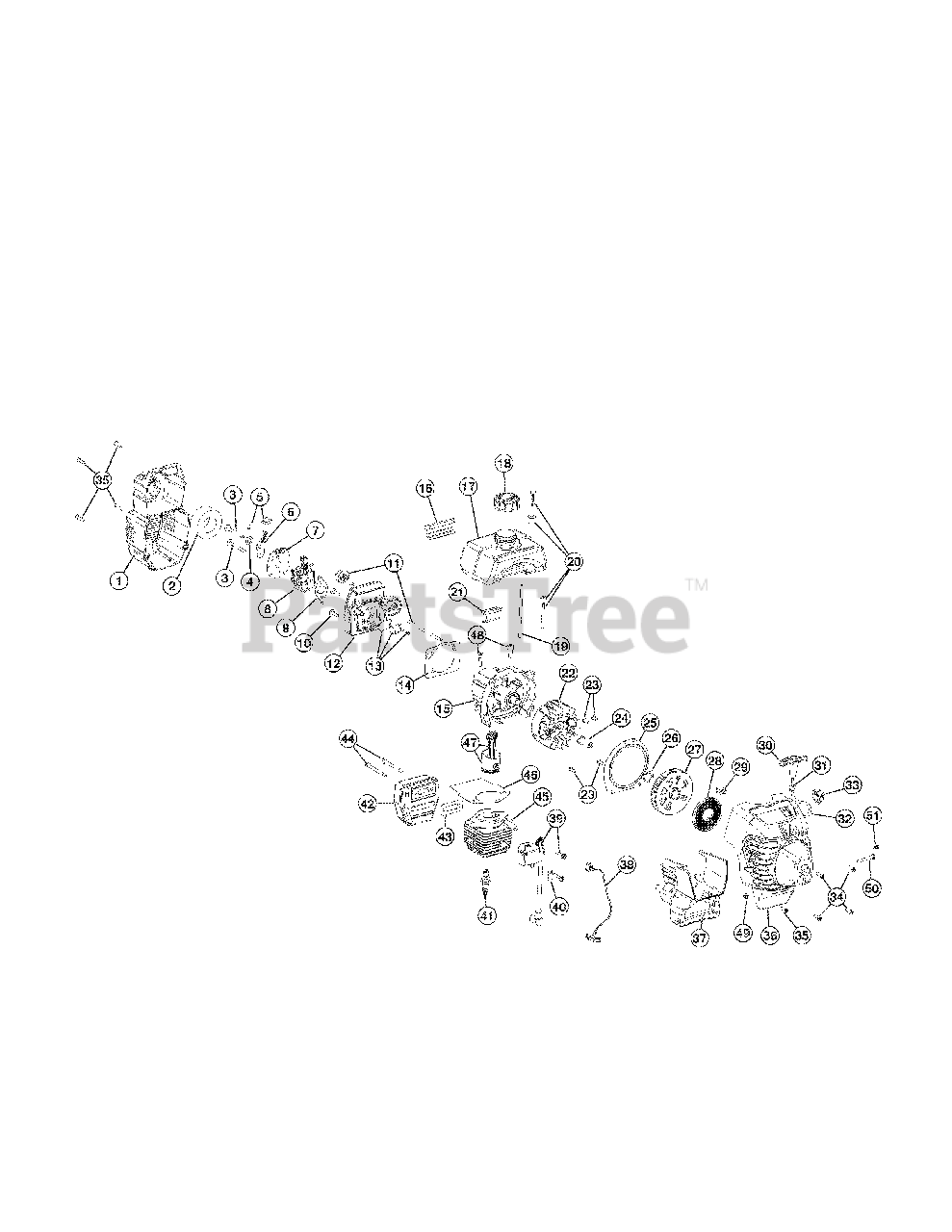

2800m (41AD280G900) - Yard Machines String Trimmer Engine Parts Parts Diagram

String Trimmer

Engine Parts Parts Diagram

  • Title

1

MTD 753-04511

Air Cleaner Cover Assembly (includes 2 & 35)

$38.99

$

Usually ships in 3-6 days

0

2

MTD 791-180350B

Air Cleaner Filter

$9.99

$

In Stock, only 1 left!

0

3

MTD 791-180351

Carburetor Mounting Screws

$

$

Not available

4

MTD 791-180226

Wavey Washer
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

5

MTD 791-182202

Choke Knob & Screw

$

$

Not available

6

MTD 753-04418

Choke Lever Assembly (includes 5)

$

$

Not available

7

MTD 753-04419

Choke Lever & Plate (includes 6)

$

$

Not available

8

MTD 753-04408

Carburetor Assembly (includes 9 & 20)

$71.99

$

In Stock, only 2 left!

0

9

MTD 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 19

0

10

MTD 791-181860

Carb Mount Screw

$

$

Not available

11

MTD 791-683974B

Primer and Hose Assembly

$22.99

$

In Stock, Qty 18

0

12

MTD 753-1196

Carburetor Mount Assembly (includes 10, 13 & 14)

$

$

Not available

13

MTD 791-684451

Reed Assembly

$

$

Not available

14

MTD 753-1208

Carburetor Mount Gasket

$16.99

$

In Stock, only 1 left!

0

15

MTD 753-04321

Crankcase Service Assembly (includes 10 & 23)

$

$

Not available

16

MTD 791-612134

Rear Mounting Pad

$

$

Not available

17

MTD 791-182767

Fuel Tank Assembly (includes 18 & 20)

$

$

Not available

18

MTD 791-182612

Fuel Cap Assembly

$20.99

$

In Stock, Qty 9

0

19

MTD 791-181086

Fuel Return Line

$7.49

$

In Stock, Qty 20+

0

20

MTD 791-682039

Fuel Line Assembly

$16.99

$

In Stock, Qty 11

0

21

MTD 791-145308

Front Mounting Pad

$

$

Not available

22

MTD 791-182736

Flywheel Assembly
(Superseded to 753-05240)

$76.99

$

In Stock, only 2 left!

0

23

MTD 753-1202

Plate Screw
(Superseded to 1755)

$3.99

$

Usually ships in 3-6 days

0

24

MTD 791-610303

Square Nut Drive

$

$

Not available

25

MTD 753-04928

Pressure Plate (includes 23 & 29)

$

$

Not available

26

MTD 753-04288

Palnut

$10.99

$

Usually ships in 3-6 days

0

27

MTD 753-04823

Recoil Pulley Assembly

$33.99

$

In Stock, Qty 8

0

28

MTD 753-04286

Recoil Spring

$26.99

$

In Stock, Qty 5

0

29

MTD 753-04824

Eyelet Retainer

$

$

Not available

30

MTD 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, only 1 left!

0

31

MTD 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

32

MTD 791-613103

Rope

$10.99

$

In Stock, only 2 left!

0

33

MTD 753-04241

Switch Assembly (includes 38)

$

$

Not available

34

MTD 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

35

MTD 791-181345

Cover Screw

$4.49

$

In Stock, only 4 left!

0

36

MTD 753-04890

Starter Housing Assembly (includes 23, 25-32, 34 & 34)

$

$

Not available

37

MTD 753-04702

Shroud Extension and Stand (includes 35)

$29.99

$

Usually ships in 3-6 days

0

38

MTD 753-04242

Wire Lead
(Superseded to 794-00028)

$9.49

$

Usually ships in 3-6 days

0

39

MTD 753-04324

Module Assembly

$110.99

$

In Stock, only 1 left!

0

40

MTD 791-611063

Ground Tab

$

$

Not available

41

MTD 791-610311B

Spark Plug

$14.99

$

In Stock, only 3 left!

0

42

MTD 753-04618

Muffler Assembly (includes 43 & 44)
(Superseded to 753-05169)

$112.99

$

Usually ships in 3-6 days

0

43

MTD 753-04619

Exhaust Gasket

$9.49

$

In Stock, only 1 left!

0

44

MTD 753-04620

Muffler Mounting Bolt Assembly
(Superseded to 710-04188A)

$4.49

$

Usually ships in 3-6 days

0

45

MTD 753-04814

Cylinder Assembly (includes 47 & 48)

$83.99

$

In Stock, only 1 left!

0

46

MTD 753-04367

Piston & Rod Assembly

$

$

Not available

47

MTD 753-04182

Cylinder Gasket

$16.99

$

Usually ships in 3-6 days

0

48

MTD 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 13

0

49

MTD 791-180217

Clamping Nut
(Superseded to 712-0161)

$4.49

$

In Stock, only 2 left!

0

50

MTD 753-04003

Clamping Screw
(Superseded to 9689A)

$11.99

$

Usually ships in 3-6 days

0

51

MTD 753-04466

Anti-Rotation Screw

$

$

Not available

MTD 753-1209

Piston Ring (NOT SHOWN)

$52.99

$

Usually ships in 3-6 days

0

MTD 753-04689

Spark Arrestor (NOT SHOWN)

$

$

Not available

MTD 753-04826

Short Block Assembly (includes 10, 15, 41, 45-48) (NOT SHOWN)

$195.99

$

Usually ships in 3-6 days

0
