280 (125-280-100) - Cub Cadet Walk-Behind Mower (1985) Parts For Rotary Mower Parts Diagram

Walk-Behind Mower

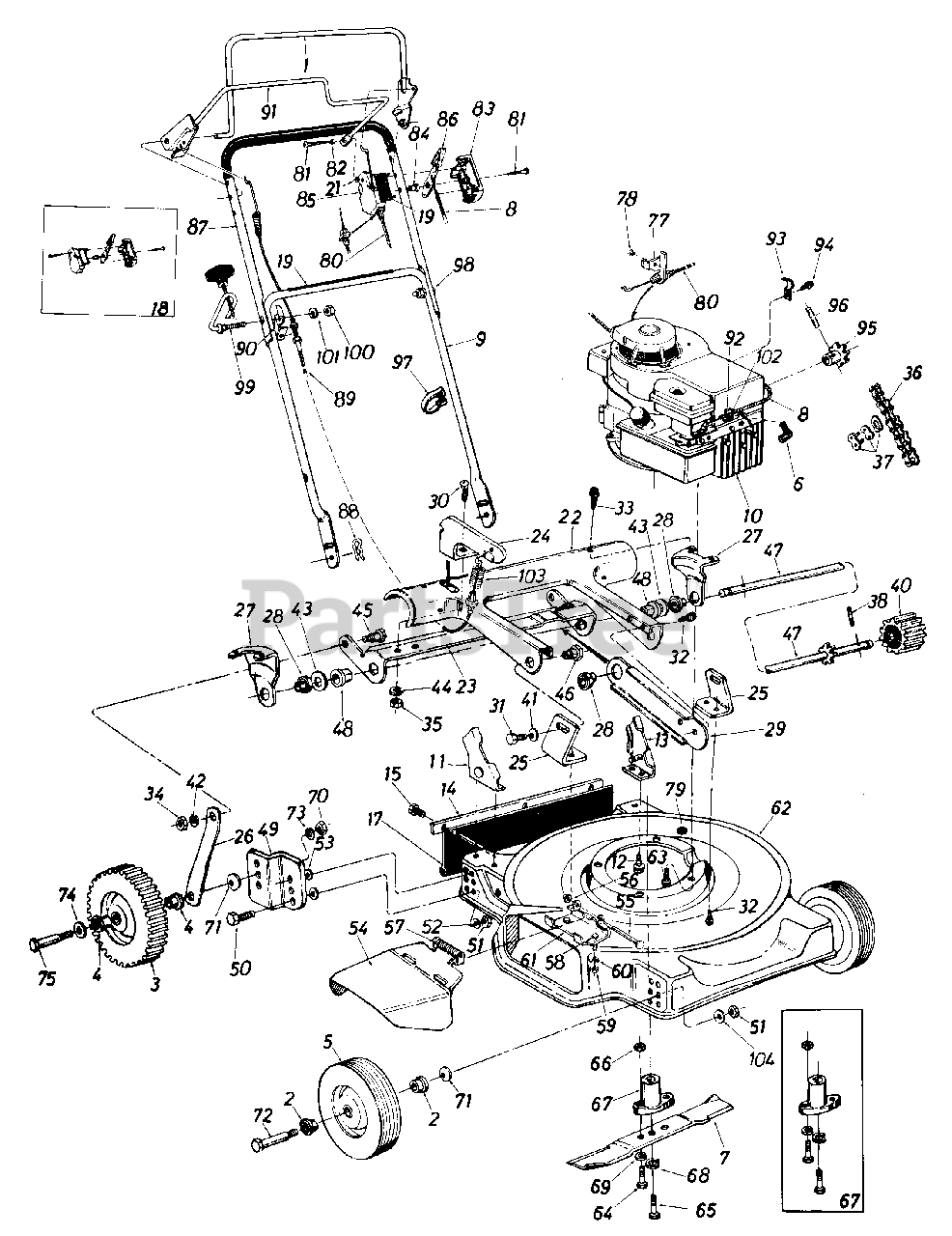

Parts For Rotary Mower Parts Diagram

  • Title

1

Cub Cadet 14321

HANDLE ASSY-CONTROL-LH

$

$

Not available

2

Cub Cadet 741-0262

BEARING-FORTIFLEX

$8.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 734-1026

WHEEL ASSY W/TIRE

$

$

Not available

4

Cub Cadet 741-0180

BEARING-BALL
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 734-0877

WHEEL ASSY W/TIRE-7 X 1.5 T LINE

$

$

Not available

6

Cub Cadet 735-0639

INSULATOR-SPARK PLUG

$

$

Not available

7

Cub Cadet 742-0125

BLADE-22IN
(Superseded to 942-0125B)

$

$

Not available

8

Cub Cadet 746-0474

WIRE-THROTTLE
(Superseded to 946-0671A)

$14.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 749-0373

LOWER HANDLE
(Superseded to 749-0928A)

$33.99

$

In Stock, only 3 left!

0

10

Engine

$

$

Not available

11

Cub Cadet 12936

BRACKET ASSY-HDLE

$

$

Not available

12

Cub Cadet 710-0603

SCREW-HEX WASH HD 5/16-18X1/2

$4.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 12935

BRACKET ASSY-HDLE

$

$

Not available

14

Cub Cadet 14846

STRIP-RETAINING

$

$

Not available

15

Cub Cadet 710-0776

SCREW-HEX WASH HD
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 731-0575

FLAP-RR
(Superseded to 731-1029)

$26.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 753-0360

KIT-THROTTLE CONTROL

$

$

Not available

19

Cub Cadet 777-5168

LABEL

$

$

Not available

21

Cub Cadet 736-0931

WASHER-FL-.203 ID X .41 OD X .040

$4.99

$

In Stock, only 1 left!

0

22

Cub Cadet 16319

COVER-PINION PIVOT

Note: Color Code 499

$

$

Not available

23

Cub Cadet 16332

CAM

$

$

Not available

24

Cub Cadet 16318

ARM-ENGAGEMENT

$

$

Currently unavailable

25

Cub Cadet 14759

BRACKET-PIVOT LH

$

$

Not available

26

Cub Cadet 14760

LINK

$

$

Not available

27

Cub Cadet 14757

BRACKET-AXLE

$

$

Not available

28

Cub Cadet 741-0180

BEARING-BALL
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 14877

SUPPORT-BEARING

$

$

Currently unavailable

30

Cub Cadet 710-0167

BOLT-CARRIAGE 1/4-20 X .50
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

31

Cub Cadet 710-0168

SCREW-HEX 3/8-16 X .50

$3.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 710-0352

SCREW-HEX B-TAP 1/4 X .38

$4.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 710-0776

SCREW-HEX WASH HD
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 713-0311

#48 CHAIN 1/2 PITCH X 50 LINKS
(Superseded to 913-0311)

$31.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 713-0116

#48 MASTER LINK 1/2 PITCH TYPE 11

Note: (Service Only)

$

$

Not available

38

Cub Cadet 715-0246

PIN-SPRING SPIR 3/16 X 1.25
(Superseded to 915-0246)

$6.99

$

In Stock, Qty 7

0

40

Cub Cadet 731-0393

PINION-DRIVE
(Superseded to 931-0393)

$

$

Not available

41

Cub Cadet 736-0105

WASHER-BELL .400 ID X .88 X .060

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

43

Cub Cadet 736-0160

WASHER-FL-.531 X .930 OD X .050

$4.49

$

In Stock, only 2 left!

0

44

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

45

Cub Cadet 738-0155

SCREW-SHLD .437 DIA X .162
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 738-0529

NUT-SHLD
(Superseded to 938-0529)

$11.99

$

In Stock, only 2 left!

0

47

Cub Cadet 738-0530

SHAFT-PINION

$

$

Not available

48

Cub Cadet 741-0484

BEARING-BALL
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

49

Cub Cadet 14761

BRACKET-WHEEL

$

$

Currently unavailable

50

Cub Cadet 710-0216

SCREW-HEX 3/8-16 X .75

$4.49

$

In Stock, Qty 16

0

51

Cub Cadet 712-0798

NUT-HEX 3/8-16

$4.49

$

In Stock, only 2 left!

0

52

Cub Cadet 736-0105

WASHER-BELL .400 ID X .88 X .060

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 736-0117

WASHER-FL-.385 ID X .62 OD X .033
(Superseded to 936-0117)

$7.49

$

In Stock, only 1 left!

0

54

Cub Cadet 14944

DEFLECTOR ASSY-CHUTE
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 6

0

55

Cub Cadet 711-0555

PIN-PIVOT

$

$

Not available

56

Cub Cadet 726-0106

NUT-PUSH

$3.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 732-0253

SPRING-TORSION

$

$

Not available

58

Cub Cadet 710-0289

SCREW-HEX 1/4-20 X .50
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

59

Cub Cadet 712-0287

NUT-HEX 1/4-20
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 736-0329

LOCK WASHER 1/4 DIA
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

61

Cub Cadet 11130

PLATE-ADAPTER

$

$

Not available

62

Cub Cadet 14999

DECK ASSEMBLY-22IN

Note: Color Code 499

$

$

Not available

63

Cub Cadet 710-0654

SCREW-HEX
(Superseded to 710-0654A)

$4.49

$

In Stock, only 3 left!

0

64

Cub Cadet 710-0888

SCREW-HEX SPECIAL 5/16-24X1.0

$4.49

$

In Stock, Qty 5

0

65

Cub Cadet 710-0331

SCREW-HEX 3/8-24 X 2.25

$6.99

$

In Stock, Qty 7

0

64

Cub Cadet 710-0888

SCREW-HEX SPECIAL 5/16-24 X 1.0

Note: (Grade 5)

$4.49

$

In Stock, Qty 5

0

66

Cub Cadet 712-0123

NUT-5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

67

Cub Cadet 753-0348

KIT-BLADE ADAPTER

$

$

Currently unavailable

68

Cub Cadet 736-0217

WASHER-HDL 3/8

$4.49

$

In Stock, Qty 9

0

69

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

70

Cub Cadet 712-0798

NUT-HEX 3/8-16

$4.49

$

In Stock, only 2 left!

0

71

Cub Cadet 736-0105

WASHER-BELL .400 ID X .88 X .060

$4.49

$

In Stock, Qty 20+

0

72

Cub Cadet 738-0213

SCREW-SHLD .498 DIA X 1.450-THD

$7.99

$

In Stock, only 2 left!

0

73

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.99

$

In Stock, Qty 20+

0

74

Cub Cadet 736-0192

WASHER-FL-.531 ID X .93 OD X .090

$4.49

$

In Stock, Qty 8

0

75

Cub Cadet 738-0533

BOLT-SHLD

$7.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 14924

BRACKET-CABLE

$

$

Not available

78

Cub Cadet 728-0171

RIVET

$

$

Not available

79

Cub Cadet 731-0564

PLUG

$

$

Not available

80

Cub Cadet 746-0476

WIRE-THROTTLE
(Superseded to 946-0476A)

$

$

Not available

81

Cub Cadet 710-0796

SCREW-TRUSS MACH

$5.49

$

In Stock, only 1 left!

0

82

Cub Cadet 750-0649

SPACER

$

$

Not available

83

Cub Cadet 731-0523

PANEL HALF-CONTROL

$

$

Not available

84

Cub Cadet 731-0524

PIN-CONTROL DISC

$

$

Not available

85

Cub Cadet 731-0526

PANEL HALF-CONTROL

$

$

Not available

86

Cub Cadet 731-0528

LEVER-THROTTLE CONT-REV
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

87

Cub Cadet 749-0536

HANDLE-UPPER
(Superseded to 749-0538E-0637)

$

$

Not available

88

Cub Cadet 714-0104

PIN-INTERN COT-5/16 DIA

$4.49

$

In Stock, Qty 20+

0

89

Cub Cadet 746-0549

CABLE-CLUTCH

$

$

Currently unavailable

90

Cub Cadet 16309

BRACKET-CABLE MTG
(Superseded to 16309A)

$

$

Not available

91

Cub Cadet 16391

HANDLE ASSY-CONTROL

$

$

Not available

92

Cub Cadet 751-0369

CLAMP-CONDUIT

$

$

Not available

93

Cub Cadet 12894

CLAMP-CASING

$

$

Not available

94

Cub Cadet 710-0429

SCREW-HEX B-TAP #10 X .38
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

95

Cub Cadet 713-0308

SPROCKET-10T

$

$

Not available

96

Cub Cadet 715-0247

PIN-SPRING SPIR 3/16 X 1.00
(Superseded to 915-0247)

$

$

Not available

96

Cub Cadet 715-0247

PIN-SPRING SPIR 3/16 X 1.00
(Superseded to 915-0247)

$

$

Not available

97

Cub Cadet 726-0192

TIE-CABLE

$

$

Not available

98

Cub Cadet 710-0671

BOLT-CARRIAGE-CURV 5/16-18 X 1.38

$

$

Not available

99

Cub Cadet 710-0842

SCREW-RECOIL HANDLE GUIDE

$

$

Not available

100

Cub Cadet 712-0267

NUT-HEX 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

101

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

102

Cub Cadet 710-0227

SCREW-HEX WASH HD AB-TAPP #8 X .38

$4.49

$

In Stock, Qty 15

0

103

Cub Cadet 732-0306

SPRING-COMPRESSION
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

104

Cub Cadet 736-0331

WASHER-BELL

$3.99

$

In Stock, Qty 16

0

Cub Cadet 8280-100-5

HARDWARE PACK

$

$

Currently unavailable
