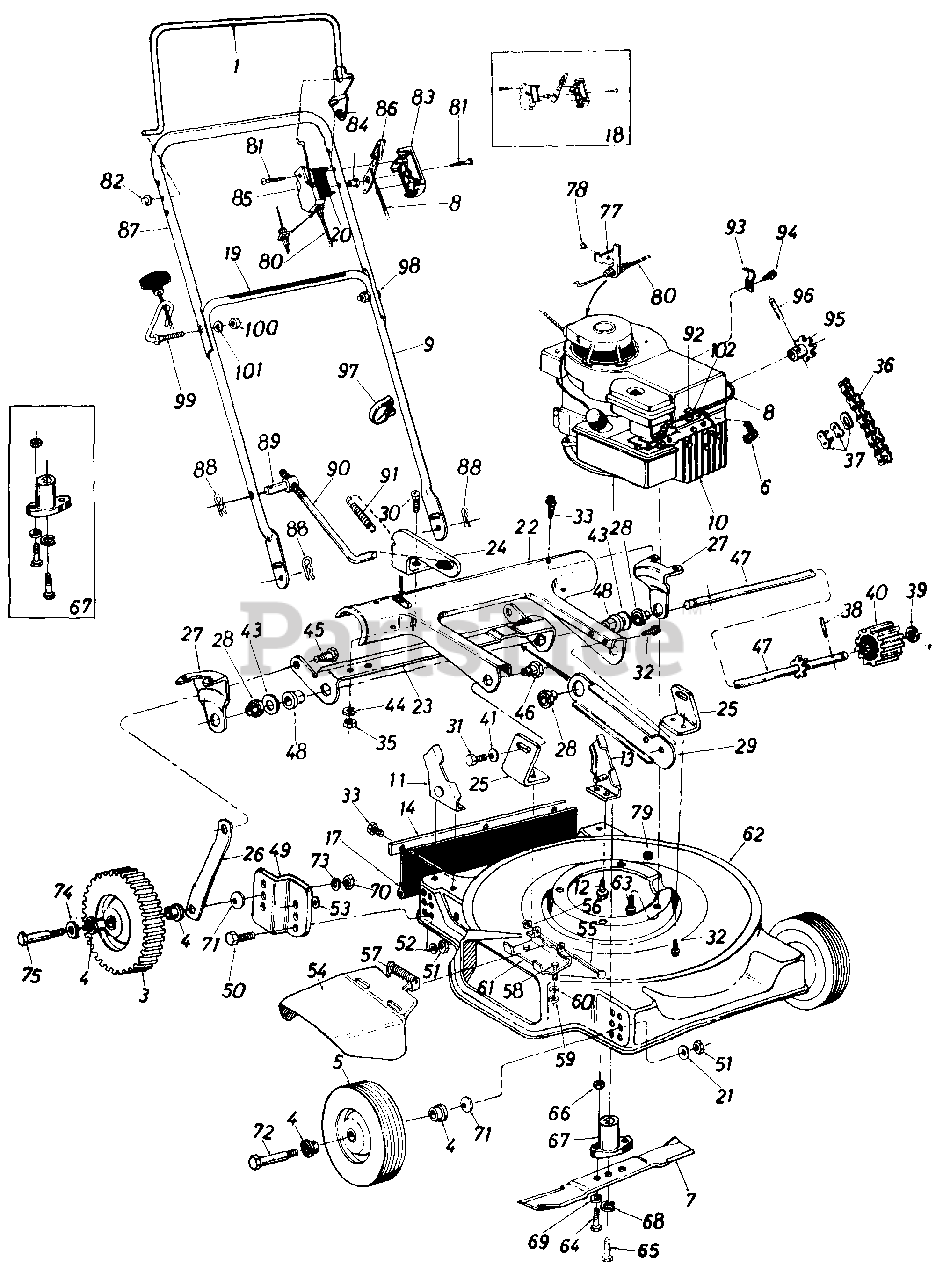

280 (124-280-100) - Cub Cadet Walk-Behind Mower (1984) Rotary Mower Parts Diagram

Walk-Behind Mower

Rotary Mower Parts Diagram

  • Title

1

Cub Cadet 14321

Control Handle Ass'y.- L.H.

$

$

Not available

3

Cub Cadet 734-0538

Wheel Ass'y. Comp. - Rear 8 x 1.75

$

$

Not available

4

Cub Cadet 741-0262

Flange Brg. - Plastic 1/2" I.D.

$8.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 734-0877

Wheel Ass'y. Comp. - Front 7 x 1.50

$

$

Not available

6

Cub Cadet 735-0639

Spark Plug Boot

$

$

Not available

7

Cub Cadet 742-0125

Blade 22"
(Superseded to 942-0125B)

$

$

Not available

8

Cub Cadet 746-0474

Throttle Wire - 53.0"
(Superseded to 946-0671A)

$14.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 749-0522

Lower Handle

$

$

Not available

10

Engine

$

$

Not available

11

Cub Cadet 14164

Handle Brkt. Ass'y. - R.H.

$

$

Currently unavailable

12

Cub Cadet 710-0603

Hex Wash. Hd. "B" - Tap Scr. 5/16-18 x .50" Lg.

$4.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 14165

Handle Brkt. Ass'y. - L.H.

$

$

Not available

14

Cub Cadet 14846

Retainer Strip

Note: Code N

$

$

Not available

17

Cub Cadet 731-0575

Rear Flap Ass'y.
(Superseded to 731-1029)

$26.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 753-0360

Kit - Control Housing Comp.

$

$

Not available

19

Cub Cadet 777-3455

Instruction Label - Handle

$

$

Not available

20

Cub Cadet 777-3458

Control Label - Throttle

$

$

Currently unavailable

21

Cub Cadet 736-0331

Bell - Wash. .39 I.D. x 1.13

$3.99

$

In Stock, Qty 16

0

22

Cub Cadet 14755

Pinion Pivot Cover 22"

Note: Color Code - 499

$

$

Not available

23

Cub Cadet 14756

Cam

$

$

Currently unavailable

24

Cub Cadet 14758

Engagement Arm

$

$

Currently unavailable

25

Cub Cadet 14759

Pivot Brkt.

$

$

Not available

26

Cub Cadet 14760

Link 4.58 x .88

$

$

Not available

27

Cub Cadet 14757

Axle Brkt.

$

$

Not available

28

Cub Cadet 741-0180

Flanged Ball Brg. .500" I.D.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 14877

Brg. Support

$

$

Currently unavailable

30

Cub Cadet 710-0167

Carriage Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

31

Cub Cadet 710-0168

Hex Bolt 3/8-16 x .50" Lg.

$3.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 710-0352

Hex "B"-Tap Scr. 1/4" x .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 710-0776

Hex Wash. Hd. "AB"-Tap Scr. 1/4" x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

?34

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 713-0311

#48 Chain 1/2" Pitch 50 Links - E.
(Superseded to 913-0311)

$31.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 713-0116

#48 Master Link

Note: (Service Only)

$

$

Not available

38

Cub Cadet 715-0246

Spring Pin Spir. 3/16" Dia. x 1.25" Lg.
(Superseded to 915-0246)

$6.99

$

In Stock, Qty 7

0

39

Cub Cadet 716-0104

"E"-Ring for .500" Dia. Shaft
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 15

0

40

Cub Cadet 731-0393

Drive Pinion
(Superseded to 931-0393)

$

$

Not available

41

Cub Cadet 736-0105

Bell-Wash. .400" I.D. x .88" O.D. x .060

$4.49

$

In Stock, Qty 20+

0

?42

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

43

Cub Cadet 736-0160

Fl-Wash. .531" I.D. x .930" O.D. x .050

$4.49

$

In Stock, only 2 left!

0

44

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

45

Cub Cadet 738-0155

Shld. Bolt .437" Dia. x .162
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 738-0529

Shld. Nut .625" Dia. x .162
(Superseded to 938-0529)

$11.99

$

In Stock, only 2 left!

0

47

Cub Cadet 738-0530

Pinion Shaft w/7 Tooth Sprocket

$

$

Not available

48

Cub Cadet 741-0324

Hex Flange Brg. x .506" I.D. Plastic
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 5

0

49

Cub Cadet 14761

Wheel Brkt.

$

$

Currently unavailable

50

Cub Cadet 710-0216

Hex Bolt 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 16

0

51

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

52

Cub Cadet 736-0105

Bell-Wash. .400" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 736-0117

Fl-Wash. .38" I.D. x .620"
(Superseded to 936-0117)

$7.49

$

In Stock, only 1 left!

0

54

Cub Cadet 14944

Chute Deflector Ass'y. Comp
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 6

0

55

Cub Cadet 711-0555

Pivot Pin

$

$

Not available

56

Cub Cadet 726-0106

Cap Speed Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 732-0253

Torsion Spring

$

$

Not available

58

Cub Cadet 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

59

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

61

Cub Cadet 11130

Hinge Plate

$

$

Not available

62

Cub Cadet 14999

22" Deck Ass'y.

Note: Color Code - 499

$

$

Not available

63

Cub Cadet 710-0654

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.0" Lg.
(Superseded to 710-0654A)

$4.49

$

In Stock, only 3 left!

0

64

Cub Cadet 710-0888

Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5) Special

$4.49

$

In Stock, Qty 5

0

65

Cub Cadet 710-0331

Hex Bolt 3/8-24 x 2.25" Lg. (Grade 5)

$6.99

$

In Stock, Qty 7

0

66

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

67

Cub Cadet 753-0348

Blade Adapter Kit

$

$

Currently unavailable

68

Cub Cadet 736-0217

L-Wash. 3/8" I.D. - H.D.

$4.49

$

In Stock, Qty 9

0

69

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

70

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

71

Cub Cadet 736-0105

Bell-Wash. .400" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

72

Cub Cadet 738-0213

Front Axle Bolt

$7.99

$

In Stock, only 2 left!

0

73

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

74

Cub Cadet 736-0192

Fl-Wash. .531" I.D. x .93"

$4.49

$

In Stock, Qty 8

0

75

Cub Cadet 738-0533

Rear Axle Bolt

$7.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 14924

Cable Bracket

$

$

Not available

78

Cub Cadet 728-0171

Pop Rivet .156" Dia. x .379

$

$

Not available

79

Cub Cadet 731-0564

Plug

$

$

Not available

80

Cub Cadet 746-0476

Control Cable - 39.0"
(Superseded to 946-0476A)

$

$

Not available

81

Cub Cadet 710-0796

Truss Mach. Self - Tap Scr. #12 x 1.50" Lg.

$5.49

$

In Stock, only 1 left!

0

82

Cub Cadet 726-0135

Cap Speed Nut 5/16" Rod

$6.99

$

In Stock, only 1 left!

0

83

Cub Cadet 731-0523

Control Panel Half

$

$

Not available

84

Cub Cadet 731-0524

Control Disc Pin

$

$

Not available

85

Cub Cadet 731-0526

Clutch Panel Half

$

$

Not available

86

Cub Cadet 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

87

Cub Cadet 749-0536

Upper Handle
(Superseded to 749-0538E-0637)

$

$

Not available

88

Cub Cadet 714-0104

Hairpin Cotter

$4.49

$

In Stock, Qty 20+

0

89

Cub Cadet 711-0570

Ferrule

$

$

Not available

90

Cub Cadet 747-0392

Clutch Rod

$

$

Not available

91

Cub Cadet 732-0418

Extension Spring - 3/8" O.D. x 2.10" Lg.

$10.99

$

In Stock, only 1 left!

0

92

Cub Cadet 751-0369

Casing Clamp

Note: Code N

$

$

Not available

93

Cub Cadet 12894

Casing Clamp

$

$

Not available

94

Cub Cadet 710-0429

Hex "B"-Tap Scr. #10 x .38"
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

95

Cub Cadet 713-0308

10 Tooth Sprocket Ass'y.

$

$

Not available

96

Cub Cadet 715-0247

Spiral Pin 3/16" Dia. x 1.00"
(Superseded to 915-0247)

$

$

Not available

97

Cub Cadet 726-0192

Cable Tie

$

$

Not available

98

Cub Cadet 710-0671

Curved Hd. Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

99

Cub Cadet 710-0842

Rope Guide Bolt

Note: Code N

$

$

Not available

100

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

101

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

102

Cub Cadet 710-0227

Hex AB-Tap Scr. #8 x .38"

$4.49

$

In Stock, Qty 15
