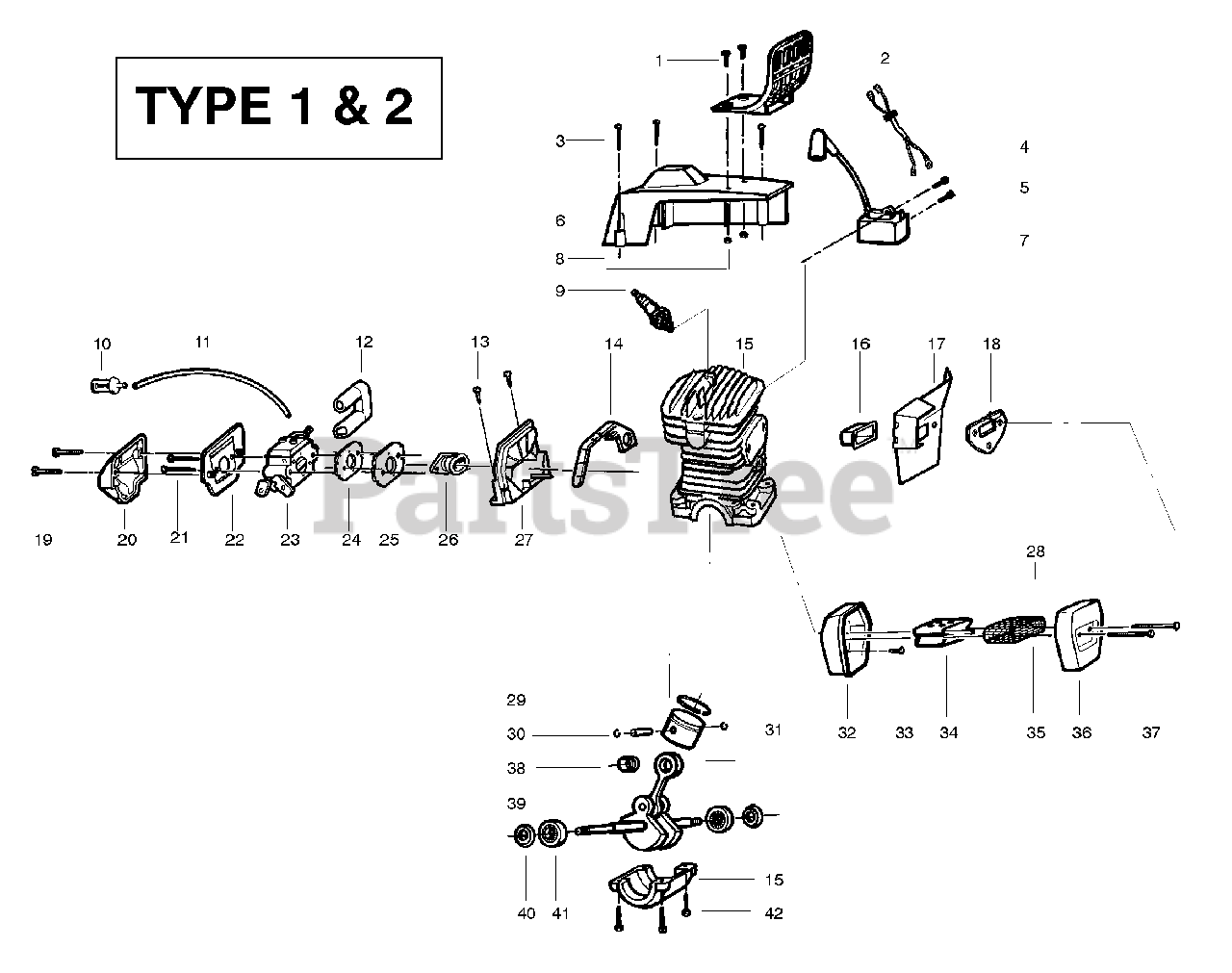

2775 - Poulan Chainsaw, Type 1 Engine Assembly Type 1 & 2 Parts Diagram

Chainsaw, Type 1

Engine Assembly Type 1 & 2 Parts Diagram

  • Title

1

Poulan 530015871

Screw
(Superseded to 530015650)

Note: (Type 1 only)

$

$

Not available

2

Poulan 530047382

Handguard

Note: (Type 1 only)

$

$

Not available

3

Poulan 530016154

Screw

$3.99

$

In Stock, Qty 14

0

4

Poulan 530037467

Switch Wire Ass'y.

$30.99

$

Usually ships in 3-10 days

0

5

Poulan 530015895

Screw

$3.99

$

Usually ships in 3-10 days

0

6

Poulan 530069700

Cylinder Shield Kit

$

$

Not available

7

Poulan 530039143

Ignition Module
(Superseded to 575803501)

$22.99

$

In Stock, Qty 9

0

8

Poulan 534235901

Nut
(Superseded to 530403094)

Note: (Type 1 only)

$3.99

$

Usually ships in 3-10 days

0

9

Poulan 952030150

Spark Plug

Note: (RCJ-7Y)

$3.99

$

In Stock, Qty 20+

0

10

Poulan 530047004

Fuel Pick-up Assy.
(Superseded to 530095646)

$6.99

$

In Stock, Qty 19

0

11

Poulan 530069247

Kit - Line Carb / Purge

$7.99

$

In Stock, Qty 20+

0

12

Poulan 530037530

Carb. Grommet
(Superseded to 530037464)

$

$

Not available

13

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 16

0

14

Poulan 530019251

Super Clean Seal

$4.99

$

Usually ships in 3-10 days

0

15

Poulan 530014943

C'case&Cylinder Assy

$

$

Not available

16

Poulan 530037652

Heat Insulator

$

$

Not available

17

Poulan 530047801

Muffler Plate
(Superseded to 530056256)

$12.99

$

Usually ships in 3-10 days

0

18

Poulan 530019205

Muffler Gasket

$6.49

$

In Stock, only 3 left!

0

19

Poulan 530015899

Screw

$6.49

$

In Stock, Qty 11

0

20

Poulan 530036141

Air Filter
(Superseded to 545057701)

Note: (Top)

$5.99

$

In Stock, only 2 left!

0

21

Poulan 530015970

Screw

$

$

Not available

22

Poulan 530037478

Air Filter
(Superseded to 530059738)

Note: (Bottom)

$

$

Not available

23

Poulan 530071345

Carburetor
(Superseded to 545013503)

Note: (WT-529)

$

$

Not available

24

Poulan 530019172

Carburetor Gasket

$6.49

$

In Stock, Qty 9

0

25

Poulan 530037872

Carburetor Plate

$6.49

$

In Stock, Qty 6

0

26

Poulan 530037668

Intake Boot
(Superseded to 530071654)

$22.99

$

Usually ships in 3-10 days

0

27

Poulan 530053396

Carb. Adaptor

$66.99

$

Usually ships in 3-10 days

0

28

Poulan 530069707

Muffler Kit

Note: (Incl. 32,34,36,37)

$

$

Not available

29

Poulan 530037380

Piston Ring

$7.49

$

In Stock, only 1 left!

0

30

Poulan 530015697

Piston Pin Retainer

$6.49

$

In Stock, Qty 6

0

31

Poulan 530069548

Piston Kit

Note: (Incl. 29, 30 & 38)

$

$

Not available

32

Poulan 530037728

Muffler Body

$

$

Not available

33

Poulan 530015902

Bolt

$4.99

$

In Stock, Qty 6

0

34

Poulan 530037813

Diffuser

$4.99

$

In Stock, only 1 left!

0

35

Poulan 530036103

Spark Screen

$

$

Not available

36

Poulan 530037249

Muffler Cover

$4.99

$

Usually ships in 3-10 days

0

37

Poulan 530016170

Muffler Bolt

$

$

Not available

38

Poulan 530032117

Piston Pin Bearing

$

$

Not available

39

Poulan 530029794

C'shaft & Rod Ass'y.
(Superseded to 503920801)

$

$

Not available

40

C'shaft Seal

Note: (Refer to Service Reference)

$

$

Not available

41

C'shaft Bearing

Note: (Refer to Service Reference)

$

$

Not available

42

Poulan 530015897

Screw

$6.49

$

In Stock, Qty 19

0

42

Poulan 530087840

Operator Manual Type 1

Note: Not Shown

$

$

Not available

42

Poulan 530088787

Operator Manual Type 2

Note: Not Shown

$4.49

$

Usually ships in 3-10 days

0

Poulan 530047658

Decal-Kickback

Note: Not Shown

$

$

Not available

Poulan 530031135

Scrench
(Superseded to 530031163)

Note: Not Shown

$9.99

$

In Stock, Qty 12

0

Poulan 530031136

Worm Gear Puller

Note: Not Shown

$

$

Not available

Poulan 530031112

Clutch Assy. Tool

Note: Not Shown

$20.99

$

In Stock, only 1 left!

0

Poulan 530055298

Decal-Instruction

Note: Not Shown

$3.99

$

Usually ships in 3-10 days

0

Poulan 530038653

Decal - On/Stop

Note: Not Shown

$3.99

$

In Stock, only 1 left!

0
