2754 GTHI (960430191-00) - Jonsered Garden Tractor (2013-12) ENGINE Parts Diagram

Garden Tractor

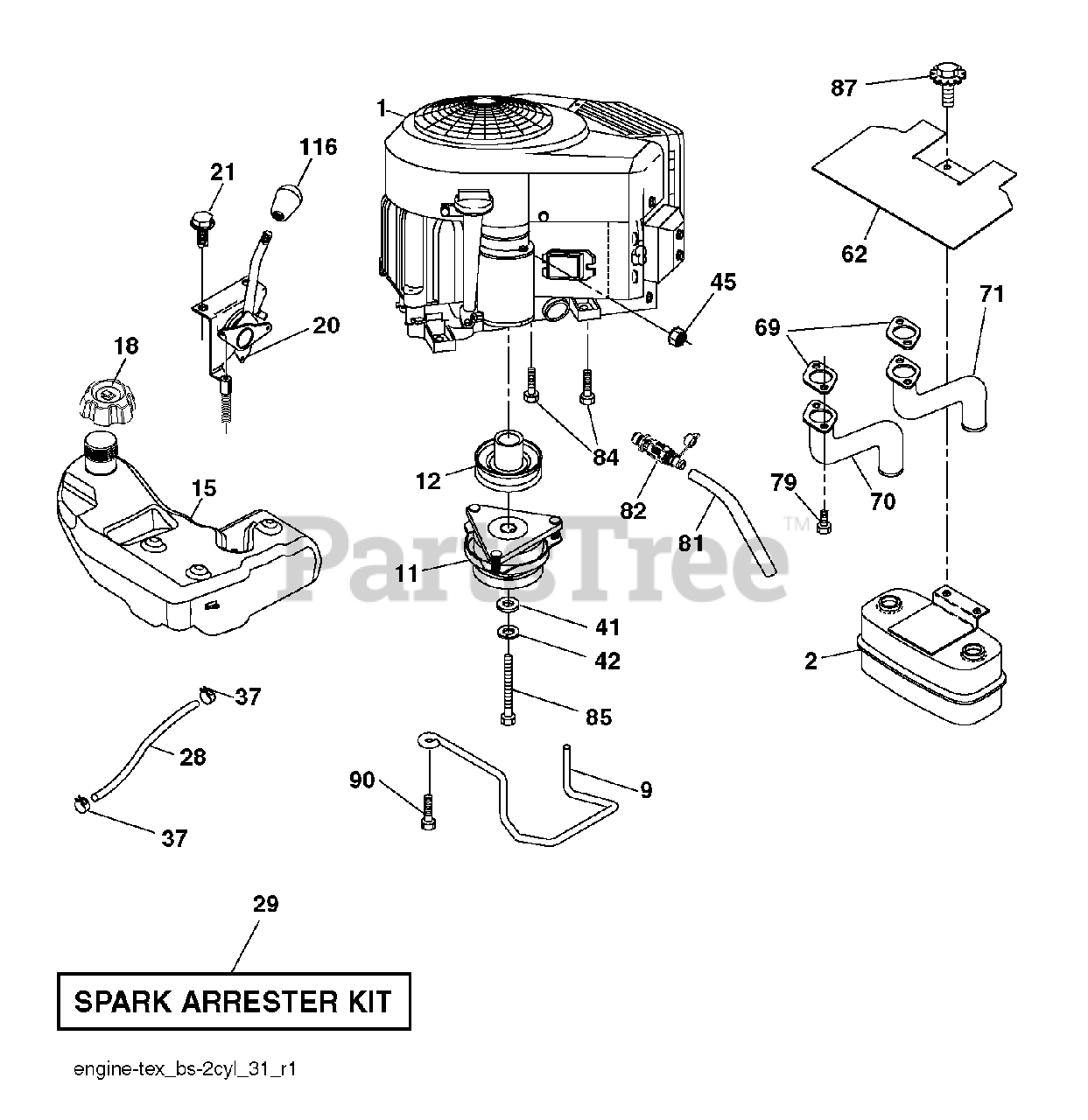

ENGINE Parts Diagram

  • Title
1

Jonsered 000000000

No Description Available

Note: ENGINE B S MODEL NO 49S877-0005-G1 (586441801)

$

$

Not available

2

Jonsered 532149723

MUFFLER.TWIN.CYL.LOW.TONE

$74.99

$

Usually ships in 3-10 days

0

9

Jonsered 532408667

KEEPER BELT ENGINE

$13.99

$

Usually ships in 3-10 days

0

11

Jonsered 532179335

CLUTCH ELECTRIC
(Superseded to 532414737)

$338.99

$

In Stock, Qty 20+

0

12

Jonsered 532194343

PULLEY ENGINE

$74.99

$

Usually ships in 3-10 days

0

15

Jonsered 532414152

RP TANK.ASM.FUEL.4GA.CARB
(Superseded to 532420723)

$303.99

$

Usually ships in 3-10 days

0

18

Jonsered 532430214

CAP ASM.FL.RTCHT.3"GRY.E10

$40.99

$

Usually ships in 3-10 days

0

20

Jonsered 586219601

Throttle and Choke Control

$80.99

$

Usually ships in 3-10 days

0

21

Jonsered 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

28

Jonsered 532401135

LINE.FUEL.64"REAR.EMIS

$27.99

$

Usually ships in 3-10 days

0

29

Jonsered 532137180

ARRESTER SPARK (OPTIONAL)

$182.99

$

In Stock, only 1 left!

0

37

Jonsered 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

41

$8.99

$

In Stock, only 3 left!

0

42

Jonsered 810040700

LOCKWASHER
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

45

Jonsered 873510400

NUT
(Superseded to 873640400)

$

$

Not available

62

Jonsered 532434017

SHIELD.HEAT.MUFFLER

$15.99

$

Usually ships in 3-10 days

0

69

Jonsered 532165391

GASKET.MUFFLER

Note: GASKET ORDER FROM ENGINE MFG

$4.99

$

In Stock, Qty 20+

0

70

Jonsered 581881101

Exhaust Tube, LH.Bs/Twin
(Superseded to 532159955)

$44.99

$

In Stock, only 1 left!

0

71

Jonsered 581881001

Exhaust Tube, RH B&S Twin Intek
(Superseded to 532160589)

$27.99

$

In Stock, only 1 left!

0

79

Jonsered 532183906

SCREW.SOCKET.HEAD.5/16-18

$6.49

$

Usually ships in 3-10 days

0

81

Jonsered 532148456

TUBE, DRAIN OIL ASM.

$6.99

$

In Stock, Qty 5

0

82

Jonsered 532428287

VALUE.OIL.DRAIN

$18.99

$

In Stock, only 2 left!

0

84

Jonsered 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

85

Jonsered 532179953

BOLT HEX 7/16-20 X 3.75 GR. 5

$7.49

$

Usually ships in 3-10 days

0

87

Jonsered 532198239

BOLT.5/16-18UNCX1.W/SEMS.BLK

$7.49

$

In Stock, only 4 left!

0

90

Jonsered 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 1 left!

0

116

Jonsered 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 7
