2754 GTHI (960430191-00) - Jonsered Garden Tractor (2013-11) CHASSIS ENCLOSURES Parts Diagram

Garden Tractor

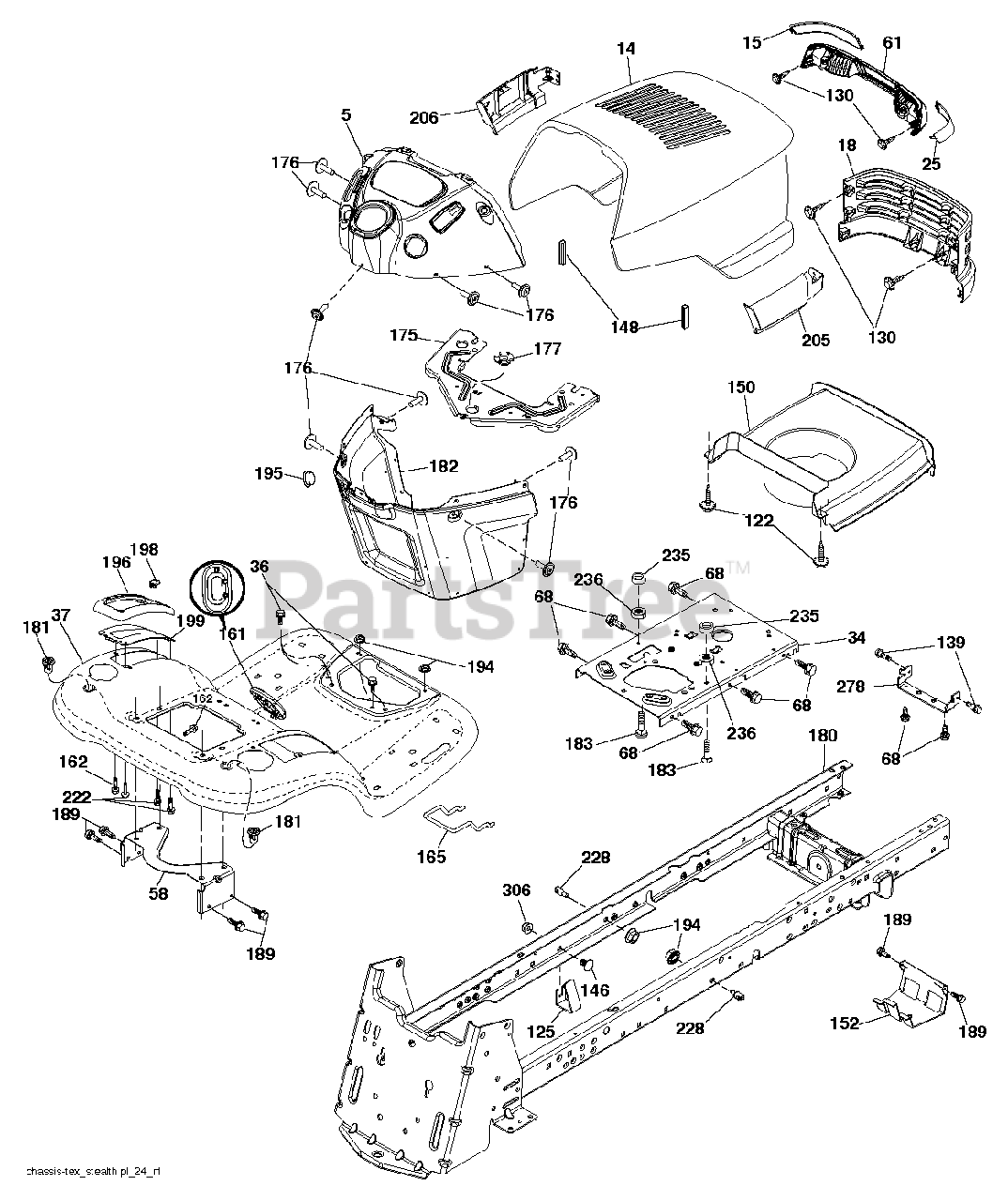

CHASSIS ENCLOSURES Parts Diagram

  • Title
5

Jonsered 586398601

DASH.STEALTH.SRV.RS.428

$

$

Not available

14

Jonsered 586414601

HOOD ASM.STEALTH.HOR-LOUV.667

$

$

Not available

15

Jonsered 532161841

LENS LH
(Superseded to 532179763)

Note: LH

$

$

Not available

18

Jonsered 532187114

GRILLE.STEALTH.GT.BLACK

$

$

Not available

25

Jonsered 532161842

LENS RH
(Superseded to 532179763)

Note: RH

$

$

Not available

34

Jonsered 580910801

No Description Available

$68.99

$

In Stock, only 1 left!

0

36

Jonsered 817060512

SCREW 5/16"
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

37

Jonsered 532443816

No Description Available

$241.99

$

Usually ships in 3-10 days

0

58

Jonsered 532194314

BRKT.SUPPORT.FNDR/TANK

$27.99

$

Usually ships in 3-10 days

0

61

532179763

$

$

Not available

68

$6.49

$

Usually ships in 3-10 days

0

122

Jonsered 532192512

SCREW.WSHD.HEX10-32X5/8

$5.99

$

Usually ships in 3-10 days

0

125

Jonsered 581684801

Fuel Line Clip

$3.99

$

Usually ships in 3-10 days

0

130

Jonsered 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

139

Jonsered 532171873

BOLT, SHOULDER 5/16-18
(Superseded to 532179032)

$5.99

$

Usually ships in 3-10 days

0

146

Jonsered 581857901

BOLT.RDHD.SHT.SQNK.3

$6.49

$

Usually ships in 3-10 days

0

148

Jonsered 532164655

EXTRUSION BUMPER

$8.99

$

Usually ships in 3-10 days

0

150

Jonsered 532190308

(Superseded to 583192101)

$34.99

$

Usually ships in 3-10 days

0

152

Jonsered 532199535

SHIELD BROWNING

$

$

Not available

161

Jonsered 532411879

CONSOLE.FUEL.WINDOW.STGT.BLACK

$8.99

$

Usually ships in 3-10 days

0

162

Jonsered 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

165

Jonsered 532196826

SUPPORT.TANK.REAR.W/TE

$26.99

$

Usually ships in 3-10 days

0

175

Jonsered 532193236

CROSSMEMBER.

$34.99

$

Usually ships in 3-10 days

0

176

Jonsered 532400776

SCREW.#10-24X5/8.RN.QU

$10.99

$

Usually ships in 3-10 days

0

177

Jonsered 532195227

BUSHING,STEERING

$6.99

$

In Stock, Qty 11

0

180

Jonsered 532195477

CHASSIS.GT.SLOPED.DRAWBAR.
(Superseded to 582033001)

$284.99

$

Usually ships in 3-10 days

0

181

Jonsered 532404796

FEND/FTRST.PCH.CPH.NFW
(Superseded to 532403025)

$

$

Not available

182

Jonsered 532192551

DASH.LOWER.

$60.99

$

Usually ships in 3-10 days

0

183

Jonsered 874520520

BOLT.5/16-18X1-1/4 FULL THD

$4.99

$

Usually ships in 3-10 days

0

189

Jonsered 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

194

Jonsered 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

195

Jonsered 532404137

PLUG.HOLE.DASH.LOWER.12V.BLK

$6.49

$

Usually ships in 3-10 days

0

196

Jonsered 532411878

No Description Available

$34.99

$

Usually ships in 3-10 days

0

198

Jonsered 532441552

INDICATOR.DECK.LIFT.RED

$15.99

$

Usually ships in 3-10 days

0

199

Jonsered 532196377

PLATE DECK LIFT

$24.99

$

Usually ships in 3-10 days

0

205

Jonsered 532187111

SKIRT.GRILLE.STEALTH.RH

Note: RH

$39.99

$

Usually ships in 3-10 days

0

206

Jonsered 532187112

SKIRT.GRILLE.STEALTH.LH

Note: LH

$

$

Not available

222

Jonsered 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

228

Jonsered 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

235

Jonsered 532406129

SPACER FENDER

$4.99

$

Usually ships in 3-10 days

0

236

Jonsered 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0

278

Jonsered 532196394

BRKT.HOOD/MUFF.STEALTH

$9.99

$

Usually ships in 3-10 days

0

306

Jonsered 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

--

Jonsered 532400944

No Description Available
(Superseded to 531307007)

$83.99

$

Usually ships in 3-10 days

0
