2754 GLS (960430066-00) - Husqvarna 54" Lawn Tractor (2009-04) Engine Parts Diagram

54" Lawn Tractor

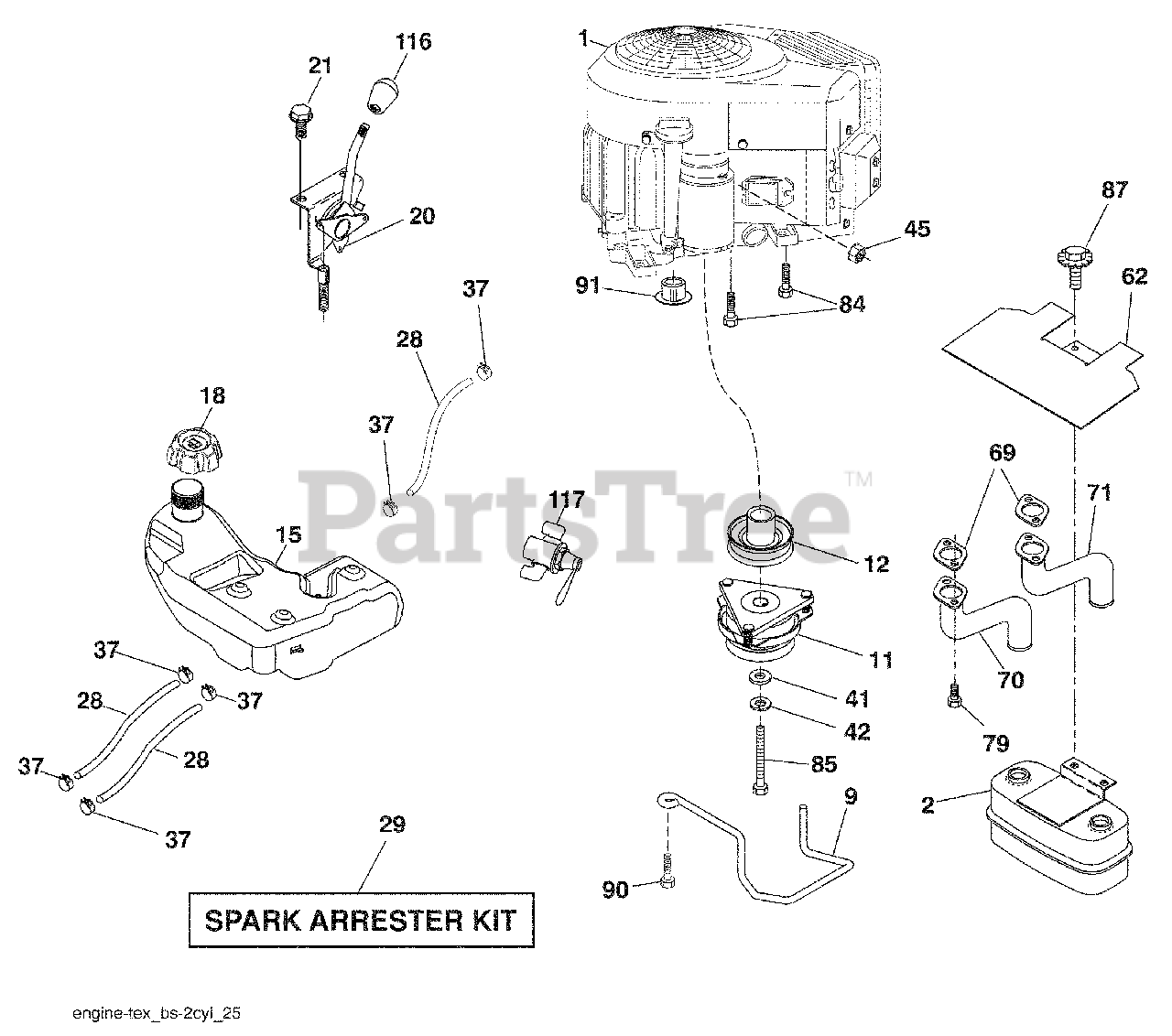

Engine Parts Diagram

  • Title

1

Engine B&S Model No. 44Q777-1039-B1

$

$

Not available

2

Husqvarna 532149723

Muffler

$74.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532408667

Keeper Belt Engine

$13.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532179335

Clutch Electric

$341.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532194343

Pulley Engine

$74.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532422804

Tank Fuel

$206.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532194267

Cap Asm
(Superseded to 584248702)

$17.99

$

In Stock, only 1 left!

0

20

Husqvarna 532424341

Control Throttle

$93.99

$

In Stock, only 3 left!

0

21

Husqvarna 532416358

Screw #10 x 0.750 BOS Thread

$

$

Not available

28

Husqvarna 532400414

Fuel Line
(Superseded to 587044864)

$20.99

$

In Stock, only 2 left!

0

29

Husqvarna 532137180

Spark Arrester Kit

$182.99

$

In Stock, only 1 left!

0

37

Husqvarna 532123487

Clamp Hose

$7.49

$

In Stock, only 4 left!

0

41

Husqvarna 532126197

Washer 1-1/2 OD x 15/32 ID x .250

$8.99

$

In Stock, only 3 left!

0

42

Husqvarna 810040700

Washer Lock 7/16
(Superseded to 539990247)

$

$

Not available

45

Husqvarna 873510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873680400)

$4.99

$

In Stock, Qty 18

0

62

Husqvarna 532146629

Shield Heat Muffler
(Superseded to 532434017)

$15.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532165391

Gasket

$4.99

$

In Stock, Qty 20+

0

70

Husqvarna 532159955

Tube Exhaust LH
(Superseded to 581881101)

$44.99

$

In Stock, only 1 left!

0

71

Husqvarna 532160589

Tube Exhaust RH
(Superseded to 581881001)

$27.99

$

In Stock, only 1 left!

0

79

Husqvarna 532183906

Screw Socket Head

$6.49

$

Usually ships in 3-10 days

0

84

Husqvarna 817060620

Screw 3/8-16 x 1-1/4

$7.49

$

In Stock, Qty 11

0

85

Husqvarna 532179953

Bolt Hex 7/16-20 x 3.75 Gr. 5
(Superseded to 501606601)

$4.99

$

In Stock, only 1 left!

0

87

Husqvarna 532198239

Bolt 5/16-18 unc x 1 w/Sems

$7.49

$

In Stock, only 4 left!

0

90

Husqvarna 817000616

Screw 3/8-16 x 1

$7.49

$

In Stock, only 2 left!

0

91

Husqvarna 532187495

Bushing 1.375 OD

$6.49

$

In Stock, only 1 left!

0

116

Husqvarna 532424659

Knob Soft Touch
(Superseded to 539132624)

$7.99

$

In Stock, Qty 7

0

117

Husqvarna 532420828

Valve Fuel Reserve

$47.99

$

In Stock, only 2 left!

0
