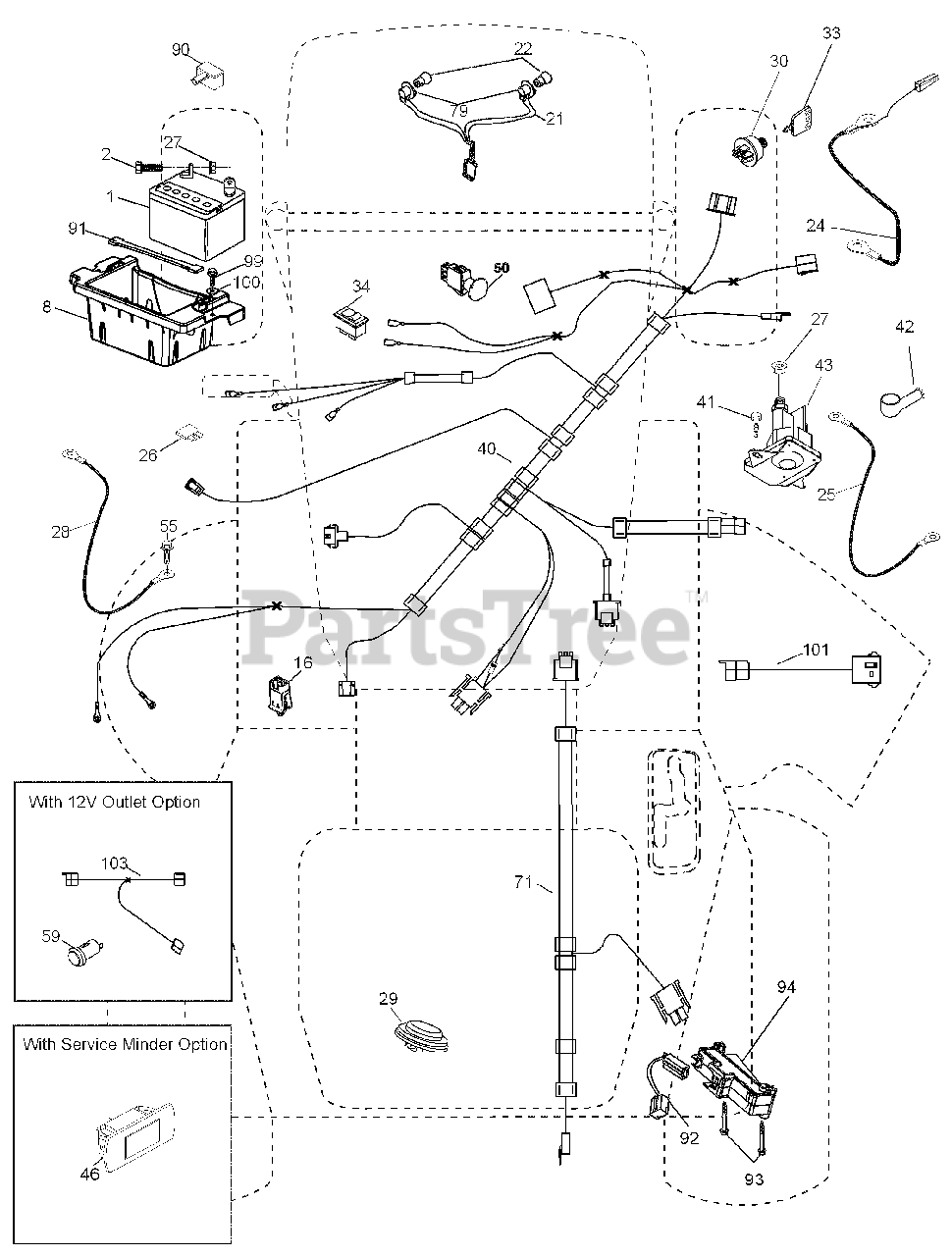

2754 GLS (960430047-00) - Husqvarna 54" Lawn Tractor (2008-01) Electrical Parts Diagram

54" Lawn Tractor

Electrical Parts Diagram

  • Title
1

Husqvarna 532163465

Battery
(Superseded to 532123899)

$194.99

$

In Stock, only 1 left!

0

2

Husqvarna 874760412

Bolt Hex Head 1/4-20 x 3/4

$7.49

$

In Stock, only 1 left!

0

8

Husqvarna 532186491

Box Battery

$

$

Not available

16

Husqvarna 532176138

Switch Interlock Push-In

$22.99

$

In Stock, Qty 9

0

21

Husqvarna 532183759

Harness Socket Light w/4152J

$47.99

$

Usually ships in 3-10 days

0

22

Husqvarna 5324152J

Bulb, Light

$

$

Currently unavailable

24

Husqvarna 532400253

Cable Battery
(Superseded to 585555601)

$9.49

$

In Stock, only 4 left!

0

25

Husqvarna 532412895

Cable Start Red 17.5"
(Superseded to 585555501)

$9.49

$

In Stock, only 3 left!

0

$7.49

$

In Stock, only 3 left!

0

27

Husqvarna 873510400

Nut Keps Hex 1/4-20 unc
(Superseded to 873680400)

$4.99

$

In Stock, Qty 18

0

28

Husqvarna 532145491

Cable, Ground

$10.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532401545

Switch, Seat

$39.99

$

In Stock, Qty 6

0

30

Husqvarna 532193350

Switch Ignition

$22.99

$

Usually ships in 3-10 days

0

33

$10.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532110712

Switch Light/Reset

$9.49

$

In Stock, only 4 left!

0

40

Husqvarna 532401104

Harness Ign Dash

$120.99

$

In Stock, only 3 left!

0

41

Husqvarna 817720408

Screw Thd Cut 1/4-20 x 1/2
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532131563

Cover Terminal
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Husqvarna 532192507

Solenoid
(Superseded to 582042802)

$26.99

$

In Stock, Qty 20+

0

46

Husqvarna 532401763

Gauge Hourmeter
(Superseded to 594919101)

$24.99

$

In Stock, Qty 6

0

50

Husqvarna 532174651

Switch, PTO
(Superseded to 582107601)

$28.99

$

In Stock, Qty 9

0

55

Husqvarna 817060512

Screw Thdrol 5/16-18 x 3/4 TYTT
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532400303

Outlet 12-Volt

$27.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532194276

Harness Ignition, Chassis

$40.99

$

Usually ships in 3-10 days

0

79

Husqvarna 532175242

Bulbholder Asm. Incandescent

$18.99

$

Usually ships in 3-10 days

0

90

Husqvarna 532400724

Cover Terminal Battery

$4.99

$

Usually ships in 3-10 days

0

91

Husqvarna 532190270

Strap Battery Mount Front

$9.99

$

In Stock, Qty 13

0

92

Husqvarna 532196615

Harness Pigtail

$18.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

94

Husqvarna 532191834

Module Reverse

$37.99

$

Usually ships in 3-10 days

0

99

Husqvarna 817670412

Screw Hexwsh Thdrol 1/4-20 x 3/4

$6.49

$

In Stock, only 2 left!

0

100

Husqvarna 819091416

Washer 9/32 x 7/8 x 16 Ga.

$6.49

$

Usually ships in 3-10 days

0

101

Husqvarna 532198317

Pigtail MATNLK

$9.99

$

Usually ships in 3-10 days

0

103

Husqvarna 532407962

Harness Pigtail 12V Outlet

$15.99

$

Usually ships in 3-10 days

0
