2750 - Poulan Chainsaw Carburetor Assembly - WT-202, WT-285, WT-239 & WT-289 Parts Diagram

Chainsaw

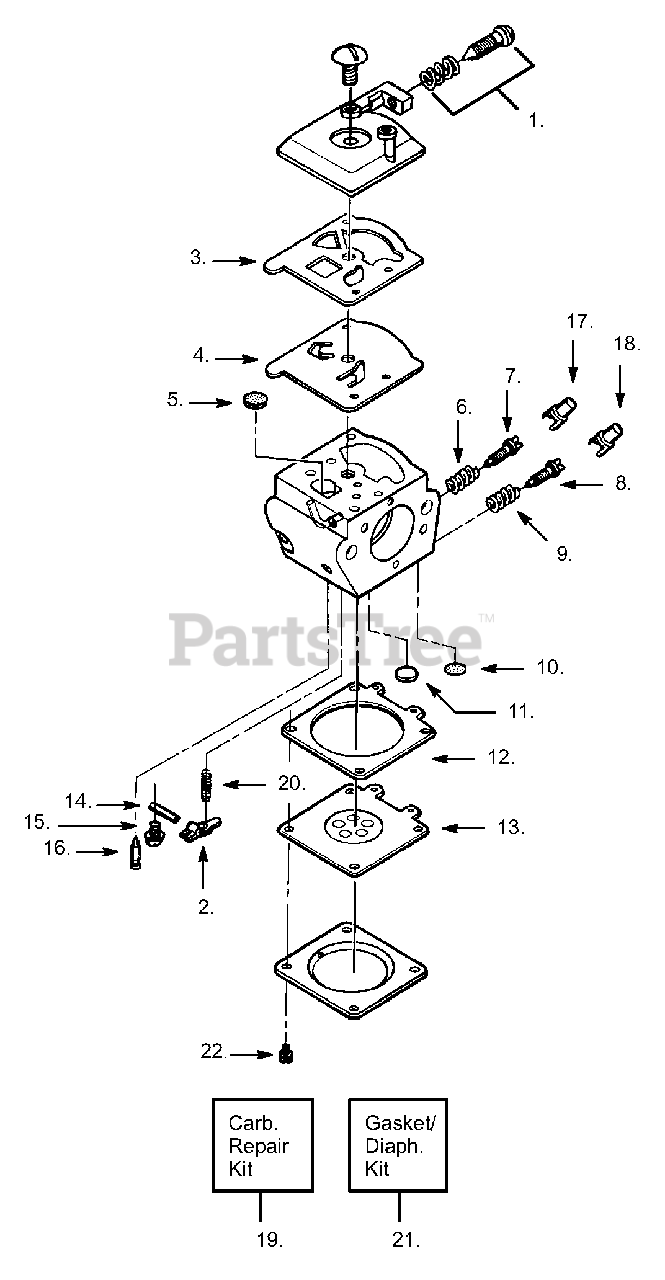

Carburetor Assembly - WT-202, WT-285, WT-239 & WT-289 Parts Diagram

  • Title

1

Poulan 530035296

Idle Adv. Screw Kit

$10.99

$

Usually ships in 3-10 days

0

2

Poulan 530035303

Metering Lever

$

$

Not available

3

Poulan 530035164

Fuel Pump Gasket
(Superseded to 504130906)

$11.99

$

In Stock, only 3 left!

0

4

Poulan 530035166

Fuel Pump Diaphragm
(Superseded to 504130807)

$31.99

$

In Stock, Qty 6

0

5

Poulan 530035300

Fuel Inlet Screen
(Superseded to 530035249)

$14.99

$

In Stock, Qty 5

0

6

Poulan 530035293

Needle Spring (Low Speed)

$4.99

$

Usually ships in 3-10 days

0

7

Poulan 530035281

Low Speed Needle WT-202, 239 & 285

$9.99

$

In Stock, only 1 left!

0

7

Poulan 530035383

Low Speed Needle WT-289

$

$

Not available

8

Poulan 530037294

High Speed Needle WT-202, 239 & 285

$7.49

$

Usually ships in 3-10 days

0

8

Poulan 530037259

High Speed Needle WT-239

$

$

Not available

8

Poulan 530035384

High Speed Needle WT-289

$7.49

$

Usually ships in 3-10 days

0

9

Poulan 530035295

Needle Spring (High Speed)

$3.99

$

In Stock, only 1 left!

0

10

Poulan 530035162

Welch Plug (5/16)

$

$

Not available

11

Poulan 530035299

Cup Plug

$

$

Not available

12

Poulan 530035165

Metering Diaphragm Gasket

$

$

Not available

13

Poulan 530035014

Metering Diaphragm
(Superseded to 503896701)

$51.99

$

In Stock, Qty 10

0

14

Poulan 530035028

Metering Lever Pin
(Superseded to 505520125)

$7.99

$

In Stock, only 3 left!

0

15

Poulan 530035016

Metering Lever Pin Screw

$7.99

$

In Stock, Qty 6

0

16

Poulan 530035301

Inlet Needle Valve

$

$

Not available

17

Poulan 530038318

Limiter Cap - High WT-289 only

$3.99

$

In Stock, Qty 20+

0

18

Poulan 530038317

Limiter Cap - Low WT-289 only

$3.99

$

Usually ships in 3-10 days

0

19

Poulan 530035298

Carburetor Repair Kit
(Superseded to 530069826)

Note: (Incl. 3-5 & 10-18)

$34.99

$

In Stock, only 1 left!

0

20

Poulan 530035302

Metering Lever Spring

$

$

Not available

21

Poulan 530035173

Gasket/Diaphragm Kit
(Superseded to 530069844)

Note: (Incl. 3, 4, 12 & 13)

$20.99

$

In Stock, only 3 left!

0

22

Poulan 530035021

Metering Cover Screw Ass'y

$3.99

$

Usually ships in 3-10 days

0

Poulan 530031157

Limiter Cap Removal Tool
(Superseded to 540068201)

Note: Not Shown

$13.99

$

Usually ships in 3-10 days

0

Poulan 530031161

Limiter Cap Insertion Tool

Note: Not Shown

$

$

Not available

Poulan 530035330

Carburetor Assy. - WT-202, WT-285 & WT-239
(Superseded to 545013503)

$51.99

$

Usually ships in 3-10 days

0

Poulan 530069629

Carburetor Assy. w/Limiter Caps - WT-289
(Superseded to 545013503)

$51.99

$

Usually ships in 3-10 days

0
