272 XP - Husqvarna Chainsaw (SN: 20163200001 - 20173200000) CLUTCH & OIL PUMP Parts Diagram

Chainsaw

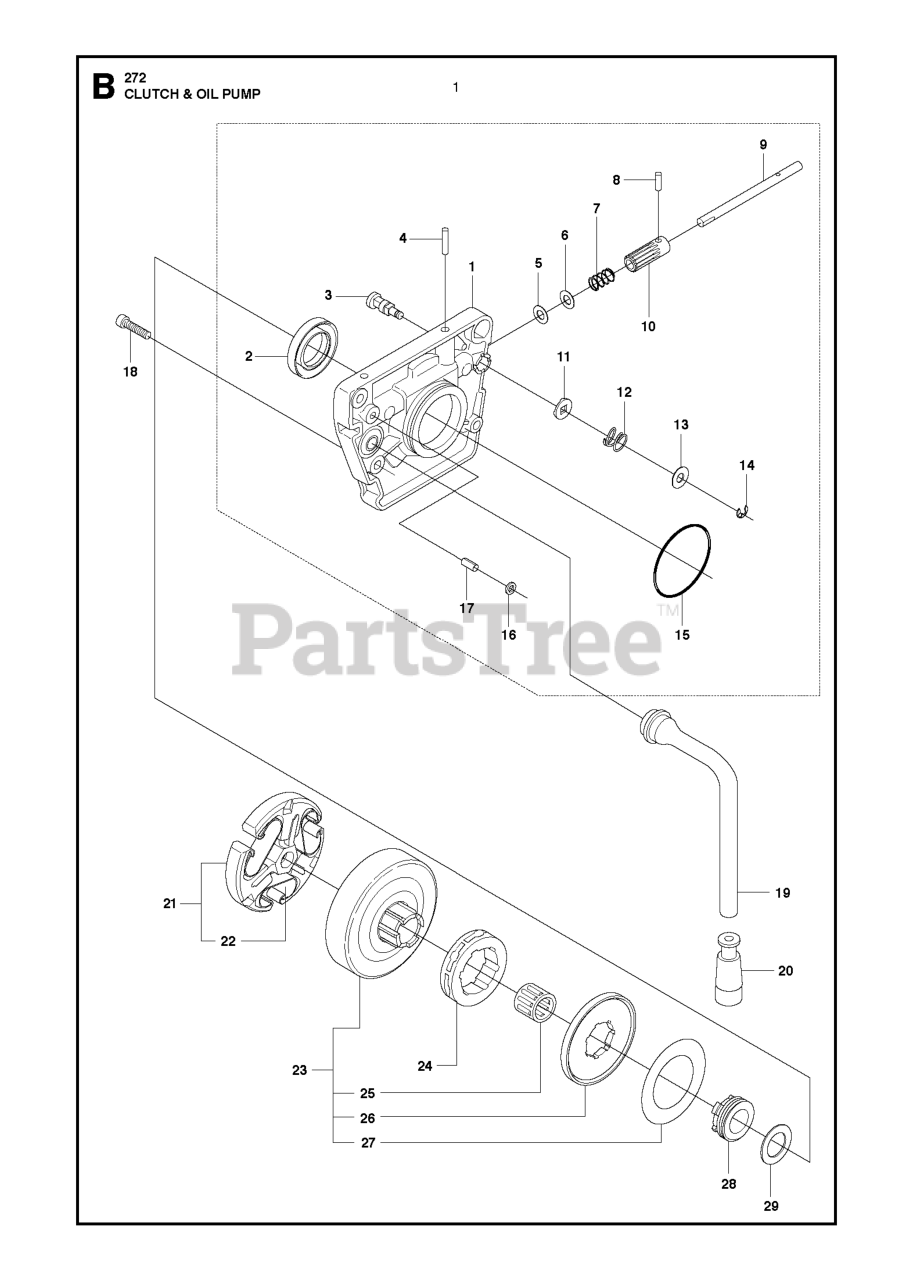

CLUTCH & OIL PUMP Parts Diagram

  • Title

16

Husqvarna 501288501

X-RING

$8.99

$

In Stock, only 1 left!

0

20

Husqvarna 501544102

OIL SCREEN

$17.99

$

In Stock, only 2 left!

0

21

Husqvarna 503744402

CLUTCH

$60.99

$

Usually ships in 3-10 days

0

14

Husqvarna 735310720

E-RING 3.2

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 501513701

WASHER

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 505303661

22273 Sprocket 3/8"x8T
(Superseded to 640200216)

$7.99

$

Usually ships in 3-10 days

0

29

Husqvarna 503230013

WASHER 13.1X20

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 721420325

SPRING PIN 3X6

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 740422100

O-RING

$4.99

$

In Stock, only 3 left!

0

3

Husqvarna 501513601

CONTROL SCREW

$3.49

$

In Stock, only 2 left!

0

23

Husqvarna 501831504

CLUTCH DRUM ASSY
(Superseded to 640300032)

$

$

Not available

2

Husqvarna 503260204

SEALING RING

$14.99

$

In Stock, only 1 left!

0

5

Husqvarna 503231001

WASHER 5.1X8.5

$

$

Not available

22

Husqvarna 537360601

SPRING

$5.99

$

Usually ships in 3-10 days

0

28

Husqvarna 501513801

WORM WHEEL

$7.99

$

In Stock, Qty 7

0

7

Husqvarna 501513401

SPRING

$5.99

$

Usually ships in 3-10 days

0

6

Husqvarna 503230016

WASHER 5.1X8.5

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 501513201

SHAFT

$9.49

$

Usually ships in 3-10 days

0

4

Husqvarna 720123750

PARALLEL PIN 3X18

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 501598002

68210 RIMSPROCKET
(Superseded to 640200215)

$8.49

$

In Stock, Qty 7

0

25

Husqvarna 503253401

SUPPORT BUSHING

$21.99

$

In Stock, Qty 20+

0

23

Husqvarna 501831503

CLUTCH DRUM

$62.99

$

In Stock, only 1 left!

0

27

Husqvarna 501535901

WASHER

$5.99

$

In Stock, Qty 7

0

12

Husqvarna 501513901

SPRING

$5.99

$

Usually ships in 3-10 days

0

26

Husqvarna 501831701

DUST PROTECTION

$7.99

$

In Stock, only 4 left!

0

8

Husqvarna 501513301

SCREW

$3.49

$

Usually ships in 3-10 days

0

1

Husqvarna 501512501

OIL PUMP

$113.99

$

In Stock, only 1 left!

0

10

Husqvarna 501513101

GEAR WHEEL

$33.99

$

In Stock, only 1 left!

0

13

Husqvarna 734484801

WASHER

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 725529356

SCREW MC6S 4X16

$5.99

$

In Stock, only 2 left!

0

19

Husqvarna 501519901

OIL HOSE

$11.99

$

Usually ships in 3-10 days

0

29
