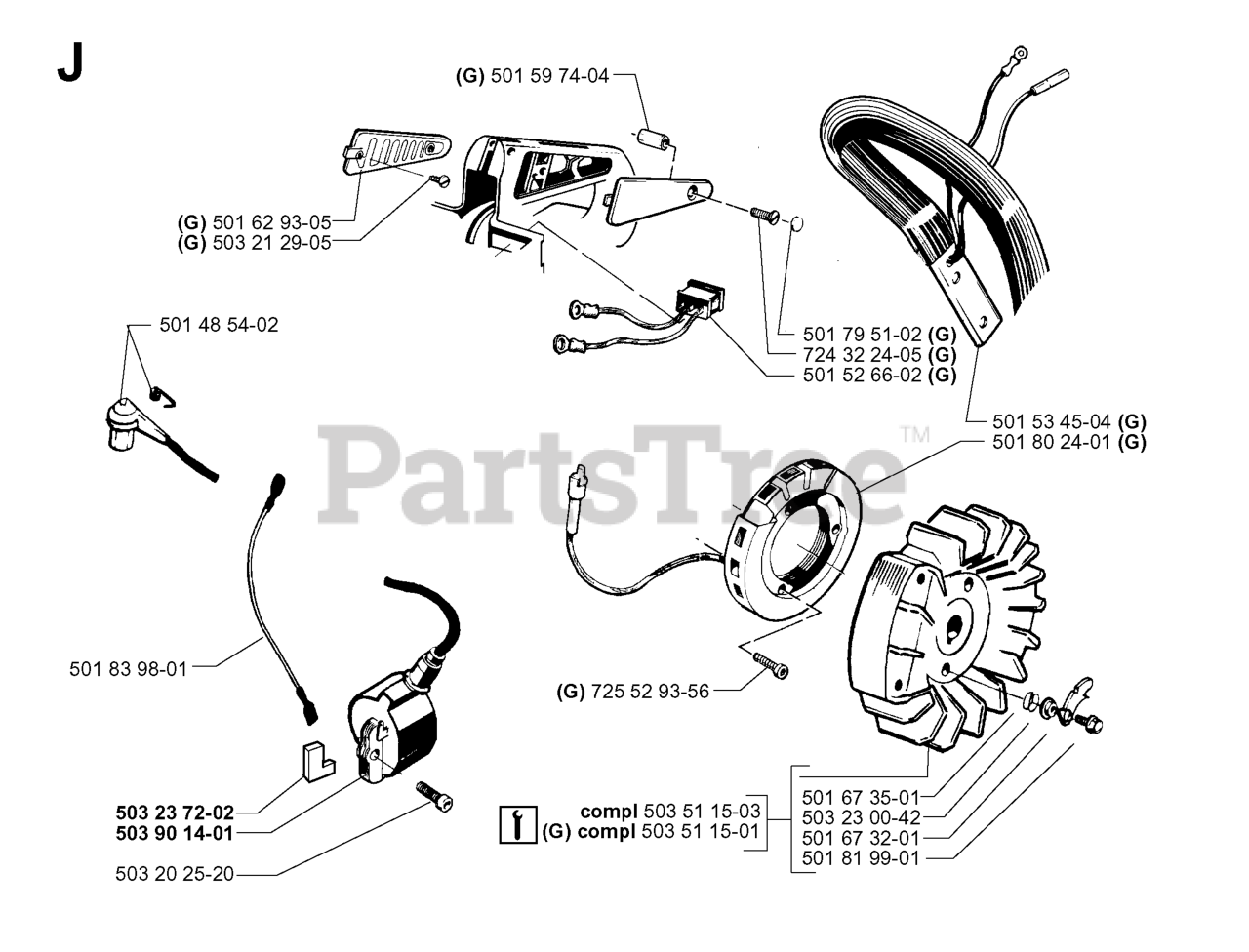

272 XP - Husqvarna Chainsaw (SN: 19994500001 - 20070100000) ELECTRICAL Parts Diagram

Chainsaw

ELECTRICAL Parts Diagram

  • Title

725 52 93-56

Husqvarna 725529356

SCREW MC6S 4X16

Note: G

$5.99

$

In Stock, only 2 left!

0

501 53 45-04

Husqvarna 501534504

FRONT HANDLE/G

Note: G

$

$

Not available

501 83 98-01

Husqvarna 501839801

SHORTING LEAD

$13.99

$

In Stock, only 1 left!

0

503 20 25-20

Husqvarna 503202520

SCREW

$6.49

$

In Stock, Qty 10

0

503 51 15-03

Husqvarna 503511503

FLYWHEEL
(Superseded to 537051602)

$241.99

$

Usually ships in 3-10 days

0

501 62 93-05

Husqvarna 501629305

HANDLE CIRCUIT

Note: G

$

$

Not available

501 59 74-04

Husqvarna 501597404

SPACER

Note: G

$

$

Not available

501 80 24-01

Husqvarna 501802401

GENERATOR

Note: G

$

$

Not available

501 52 66-02

Husqvarna 501526602

SWITCH HEATING

Note: G

$

$

Not available

501 81 99-01

Husqvarna 501819901

SCREW M5X14

$6.49

$

In Stock, Qty 6

0

503 23 00-42

Husqvarna 503230042

WASHER

$6.49

$

In Stock, only 2 left!

0

501 48 54-02

Husqvarna 501485402

SPARK PLUG CONN. KIT

$13.99

$

In Stock, only 3 left!

0

503 51 15-01

Husqvarna 503511501

FLYWHEEL (G)

Note: G

$

$

Not available

724 32 24-05

Husqvarna 724322405

SCREW 3X10

Note: G

$4.99

$

In Stock, Qty 5

0

503 21 29-05

Husqvarna 503212905

SCREW

Note: G

$

$

Not available

503 90 14-01

Husqvarna 503901401

IGNITION MODULE
(Superseded to 544018401)

$

$

Not available

503 23 72-02

Husqvarna 503237202

INSULATING CAP

$4.99

$

In Stock, only 1 left!

0

501 67 32-01

Husqvarna 501673201

PAWL

$8.99

$

Usually ships in 3-10 days

0

501 79 51-02

Husqvarna 501795102

WASHER

Note: G

$3.49

$

In Stock, only 1 left!

0

501 67 35-01

Husqvarna 501673501

SPRING

$7.49

$

In Stock, Qty 10

0
