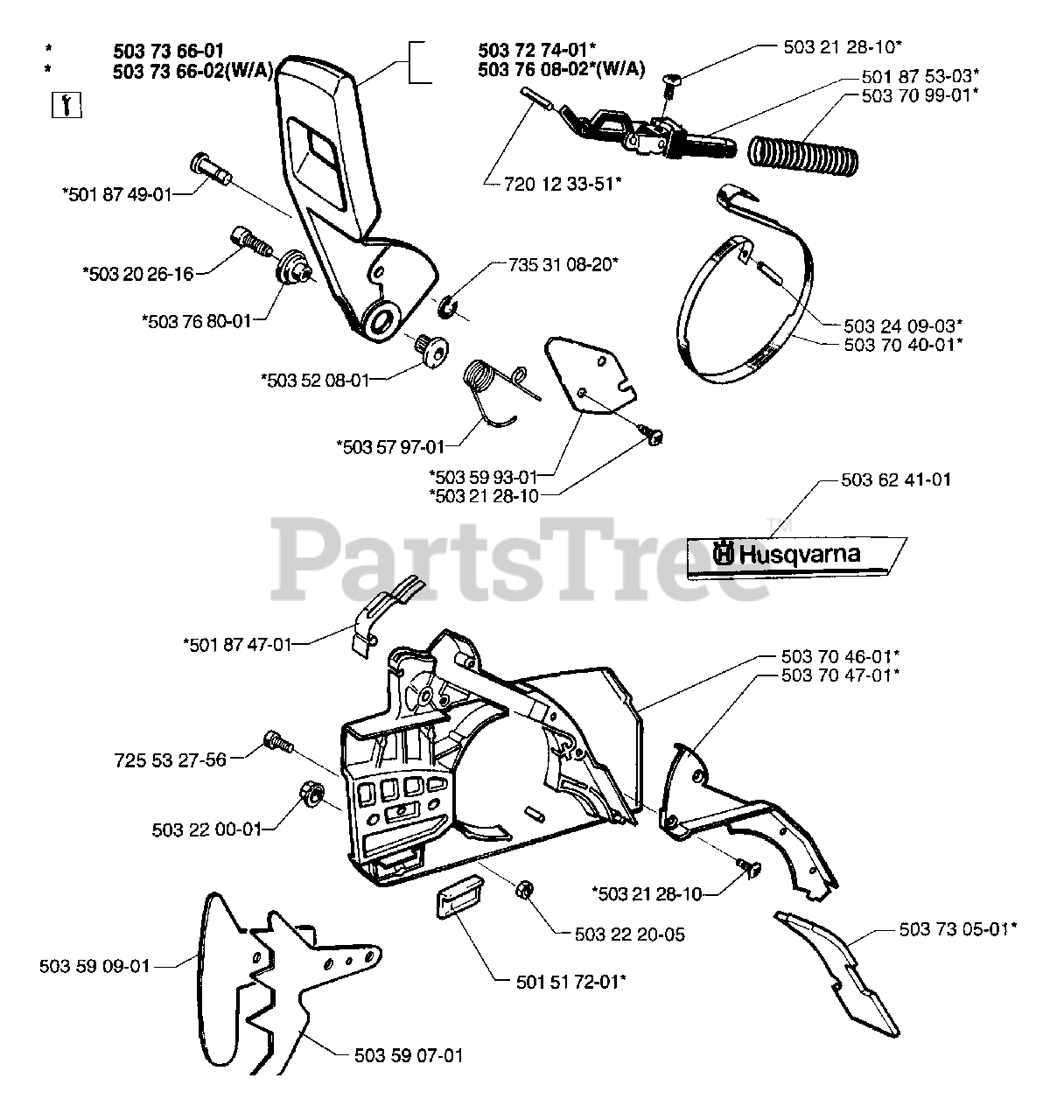

272 XP - Husqvarna Chainsaw (1997-01) Chain Brake Assembly Parts Diagram

Chainsaw

Chain Brake Assembly Parts Diagram

  • Title
503736601

Husqvarna 503736601

CHAIN BRAKE

$136.99

$

Usually ships in 3-10 days

0

503736602

Husqvarna 503736602

CHAINBRAKE W/A

$130.39

$

Usually ships in 3-10 days

0

501874901

Husqvarna 501874901

PIVOT PIN
(Superseded to 503802701)

$5.99

$

Usually ships in 3-10 days

0

503202616

$3.49

$

In Stock, only 2 left!

0

503768001

Husqvarna 503768001

SLEEVE
(Superseded to 501768001)

$9.99

$

In Stock, Qty 6

0

503520801

Husqvarna 503520801

PIVOT SLEEVE L

$11.99

$

Usually ships in 3-10 days

0

503579701

$5.99

$

Usually ships in 3-10 days

0

503599301

$

$

Not available

503212810

$3.99

$

In Stock, Qty 11

0

735310820

$4.99

$

In Stock, Qty 20+

0

720123351

Husqvarna 720123351

HARDENED PIN

$3.49

$

In Stock, only 1 left!

0

503760802

Husqvarna 503760802

HANDGUARD W/A CPL

$

$

Not available

503727401

$45.99

$

Usually ships in 3-10 days

0

503212810

$3.99

$

In Stock, Qty 11

0

501875303

$26.99

$

In Stock, only 1 left!

0

503709901

Husqvarna 503709901

BRAKE SPRING
(Superseded to 503709902)

$12.99

$

In Stock, only 4 left!

0

503240903

Husqvarna 503240903

SPIRAL PIN
(Superseded to 720123351)

$3.49

$

In Stock, only 1 left!

0

503704001

Husqvarna 503704001

BRAKE BAND
(Superseded to 503704002)

$13.99

$

In Stock, only 2 left!

0

503624101

Husqvarna 503624101

DECAL CLUTCH COVER
(Superseded to 503768101)

$4.99

$

In Stock, only 2 left!

0

503704601

Husqvarna 503704601

CLUTCH COVER

$56.99

$

Usually ships in 3-10 days

0

503704701

$11.99

$

Usually ships in 3-10 days

0

501874701

$4.99

$

In Stock, only 2 left!

0

725532756

Husqvarna 725532756

SCREW MC6S 5X12
(Superseded to 725532755)

$6.49

$

In Stock, only 3 left!

0

503220001

Husqvarna 503220001

NUT M8 FLANGE

$3.99

$

In Stock, Qty 20+

0

503590901

Husqvarna 503590901

FELLING DOG

$

$

Not available

503212810

$3.99

$

In Stock, Qty 11

0

503222005

Husqvarna 503222005

NUT
(Superseded to 503222302)

$

$

Not available

501517201

Husqvarna 501517201

CHAIN GUIDE

$8.99

$

In Stock, only 2 left!

0

503590701

Husqvarna 503590701

FELLING DOG

$26.99

$

In Stock, only 1 left!

0

503730501

$7.99

$

Usually ships in 3-10 days

0
