2717 H (1693401) - Massey Ferguson Garden Tractor, 17hp Engine Group - Electric Clutch - 17HP Kawasaki Liquid Cooled Parts Diagram

Garden Tractor, 17hp

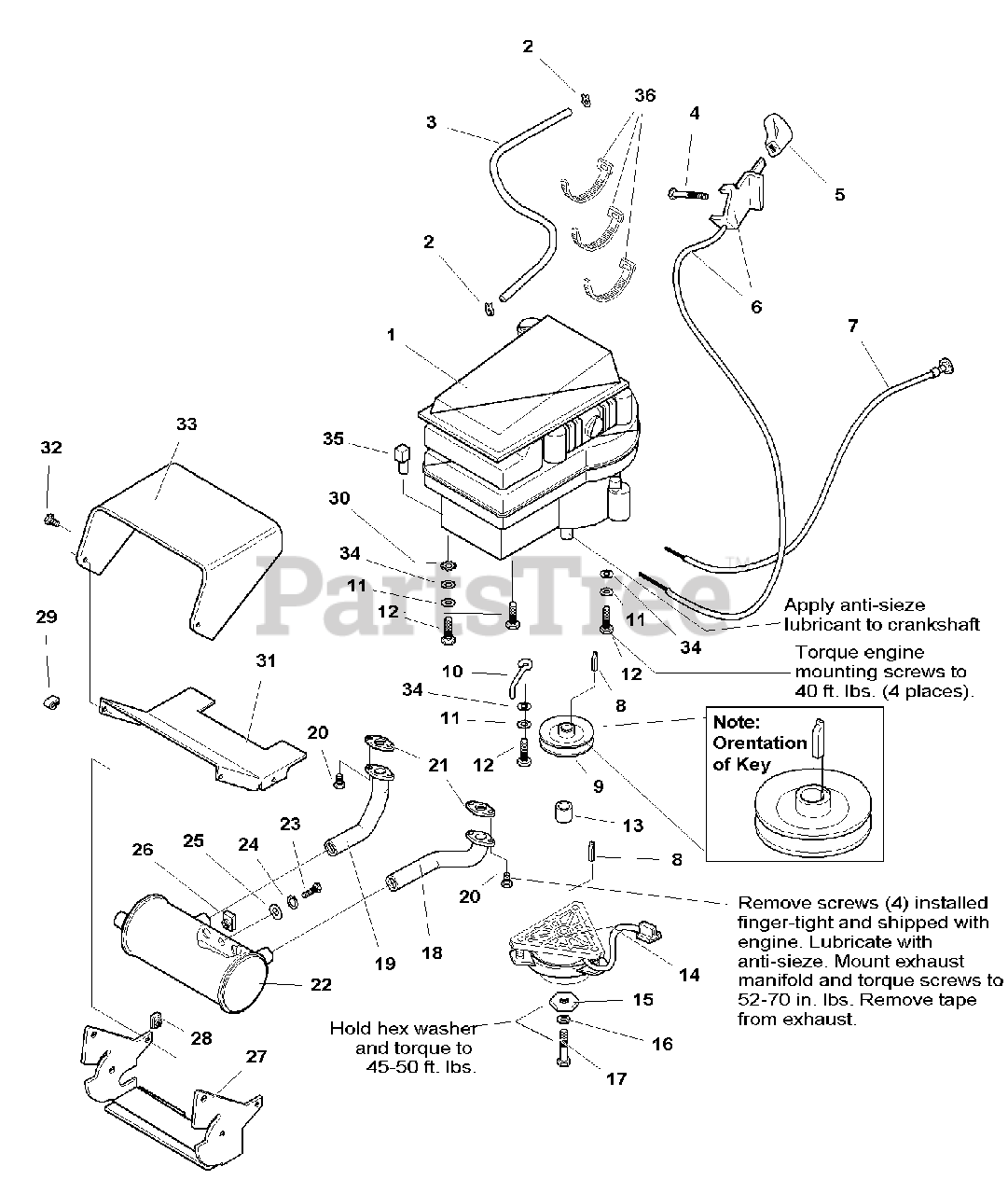

Engine Group - Electric Clutch - 17HP Kawasaki Liquid Cooled Parts Diagram

  • Title

1

ENGINE, 17HP Kawasaki

$

$

Not available

2

Simplicity 2860112SM

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

3

Simplicity 1708549SM

HOSE, Fuel, 38" Long

$

$

Not available

4

Simplicity 1960536SM

CAPSCREW, Hex Head, Plastite, 1/4-20 x 1/2

$4.99

$

Usually ships in 2-12 days

0

5

Simplicity 1713846SM

KNOB, Throttle

$15.99

$

In Stock, only 1 left!

0

6

Simplicity 1714068SM

THROTTLE CONTROL ASSEMBLY

$52.99

$

In Stock, only 1 left!

0

7

Simplicity 1708764SM

CABLE, Choke Control

$91.99

$

Usually ships in 2-12 days

0

8

Simplicity 171241

KEY, Hi-Pro
(Superseded to 2171241SM)

$5.99

$

Usually ships in 2-12 days

0

9

Simplicity 1713187SM

PULLEY ASSEMBLY

$92.99

$

Usually ships in 2-12 days

0

10

Simplicity 1704419SM

BELT STOP

$7.49

$

In Stock, only 2 left!

0

11

Simplicity 1917356SM

WASHER, Lock, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1960562SM

CAPSCREW, Hex Head, M8 - 1.25 x 40mm

$1.99

$

Usually ships in 2-12 days

0

13

Simplicity 1708587SM

SPACER

$

$

Not available

14

Simplicity 1686883SM

ELECTRIC CLUTCH ASSEMBLY, PTO
(Superseded to 1687296SM)

$402.99

$

In Stock, only 1 left!

0

15

Simplicity 1708264SM

WASHER, Hex

$8.99

$

In Stock, Qty 5

0

16

Simplicity 1918199SM

WASHER, Lock, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 1960561SM

CAPSCREW, Hex Head, M10 - 1.5 x 100mm

$5.99

$

Usually ships in 2-12 days

0

18

Simplicity 1719785SM

MANIFOLD PIPE, LH

$

$

Not available

19

Simplicity 1719786SM

MANIFOLD PIPE, RH

$

$

Not available

20

Simplicity 1960407SM

CAPSCREW, Hex Socket Head, M8 - 1.25 x 20mm

Note: Included with engine.

$4.49

$

In Stock, only 4 left!

0

21

GASKET

$

$

Not available

22

Simplicity 1719646SM

MUFFLER

$414.99

$

Usually ships in 2-12 days

0

23

Simplicity 1921333SM

CAPSCREW, Hex Head, 5/16-18 X 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

24

Simplicity 1917356SM

WASHER, Lock, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

25

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 6

0

26

Simplicity 1935255SM

NUT, Speed, 5/16-18

$3.49

$

In Stock, only 2 left!

0

27

Simplicity 1719662SM

DUCT, Lower Exhaust

$67.99

$

In Stock, only 1 left!

0

28

Simplicity 1960368SM

PAL NUT, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

29

Simplicity 2834683SM

CLIP
(Superseded to 2172434SM)

$4.99

$

Usually ships in 2-12 days

0

30

Simplicity 2820426SM

WASHER, Lock, External Tooth, 5/16

$4.49

$

In Stock, only 1 left!

0

31

Simplicity 1719741SM

DUCT, Upper Exhaust

$22.99

$

Usually ships in 2-12 days

0

32

Simplicity 1960295SM

CAPSCREW, Hex Head, Whiz Lock, 1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

33

Simplicity 1719740SM

DUCT, Upper

$

$

Not available

34

Simplicity 1919381SM

WASHER, Flat, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

35

Simplicity 1715649SM

VALVE, Oil Drain

$51.99

$

Usually ships in 2-12 days

0

36

Simplicity 1701011SM

TIE, Self-Locking

$5.49

$

In Stock, only 2 left!

0
