2717 H (1693256) - Massey Ferguson Garden Tractor, 17hp Engine Group - Electric Clutch - 17HP Kawasaki Liquid Cooled Parts Diagram

Garden Tractor, 17hp

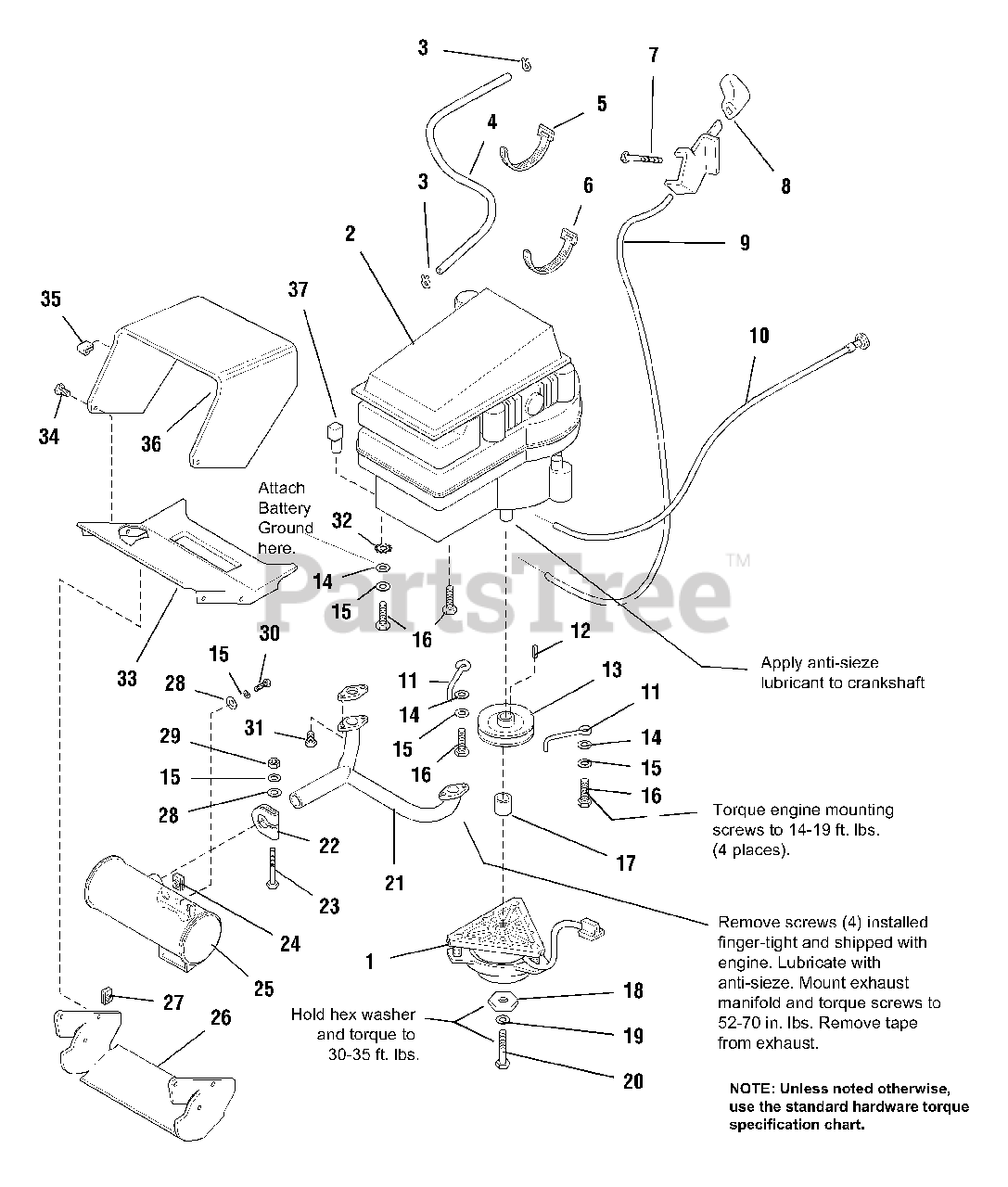

Engine Group - Electric Clutch - 17HP Kawasaki Liquid Cooled Parts Diagram

  • Title

1

Simplicity 1706692SM

ELECTRIC CLUTCH

$579.99

$

Usually ships in 2-12 days

0

2

ENGINE 17HP Kawasaki, Liquid Cooled

$

$

Not available

3

Simplicity 2860112SM

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 1708549SM

HOSE, Fuel, 38" Long

$

$

Not available

5

Simplicity 1701011SM

TIE, Self Locking

$5.49

$

In Stock, only 2 left!

0

6

Simplicity 2832747SM

Tie, Self Locking

$3.99

$

Usually ships in 2-12 days

0

7

Simplicity 1960536SM

SCREW, Plastite, 1/4-10 x 1/2

$4.99

$

Usually ships in 2-12 days

0

8

Simplicity 1713846SM

KNOB, Throttle

$15.99

$

In Stock, only 1 left!

0

9

Simplicity 1714068SM

THROTTLE & CABLE ASSY.

$52.99

$

In Stock, only 1 left!

0

10

Simplicity 1708764SM

CABLE, Choke Control

$91.99

$

Usually ships in 2-12 days

0

11

Simplicity 1704419SM

BELT STOP

$7.49

$

In Stock, only 2 left!

0

12

Simplicity 2171241SM

KEY, Hi-Pro

$5.99

$

Usually ships in 2-12 days

0

13

Simplicity 1713187SM

PULLEY ASSY.

$92.99

$

Usually ships in 2-12 days

0

14

Simplicity 1919381SM

WASHER, Plain, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

15

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

16

Simplicity 1960562SM

CAPSCREW, Hex Hd., M8 - 1.25 x 40mm

$1.99

$

Usually ships in 2-12 days

0

17

Simplicity 1708587SM

SPACER

$

$

Not available

18

Simplicity 1708264SM

WASHER

$8.99

$

In Stock, Qty 5

0

19

Simplicity 1918199SM

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

20

Simplicity 1960561SM

CAPSCREW, Hex Hd., M10 - 1.5 x 100mm

$5.99

$

Usually ships in 2-12 days

0

21

Simplicity 1715616SM

MANIFOLD, Exhaust

$72.99

$

Usually ships in 2-12 days

0

22

Simplicity 1676183SM

CLAMP, Muffler

$4.49

$

Usually ships in 2-12 days

0

23

Simplicity 1931342SM

CARRIAGE BOLT, 5/16-18 x 2-3/4
(Superseded to 703857)

$6.49

$

Usually ships in 2-12 days

0

24

Simplicity 1935255SM

NUT, Pal, 5/16-18

$3.49

$

In Stock, only 2 left!

0

25

Simplicity 1703971SM

MUFFLER ASSY.

$213.99

$

Usually ships in 2-12 days

0

26

Simplicity 1704357SM

DUCT, Lower Muffler
(Superseded to 1704357ASM)

$179.99

$

Usually ships in 2-12 days

0

27

Simplicity 1960368SM

NUT, Pal, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

28

Simplicity 1919326SM

WASHER, Plain, 11/32

$4.49

$

In Stock, Qty 6

0

29

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

30

Simplicity 1921333SM

CAPSCREW, Hex Hd., 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

31

Simplicity 1960407SM

SCREW, Metric

$4.49

$

In Stock, only 4 left!

0

32

Simplicity 2820426SM

LOCKWASHER, Ext. Tooth, 5/16

$4.49

$

In Stock, only 1 left!

0

33

Simplicity 1715713SM

DUCT, Upper Muffler

$

$

Not available

34

Simplicity 1960295SM

SCREW, Flange Whiz, 1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

35

Simplicity 2834683SM

CLIP
(Superseded to 2172434SM)

$4.99

$

Usually ships in 2-12 days

0

36

Simplicity 1715618SM

DUCT, Upper

$

$

Not available

37

Simplicity 1715649SM

VALVE, Oil Drain

$51.99

$

Usually ships in 2-12 days

0
