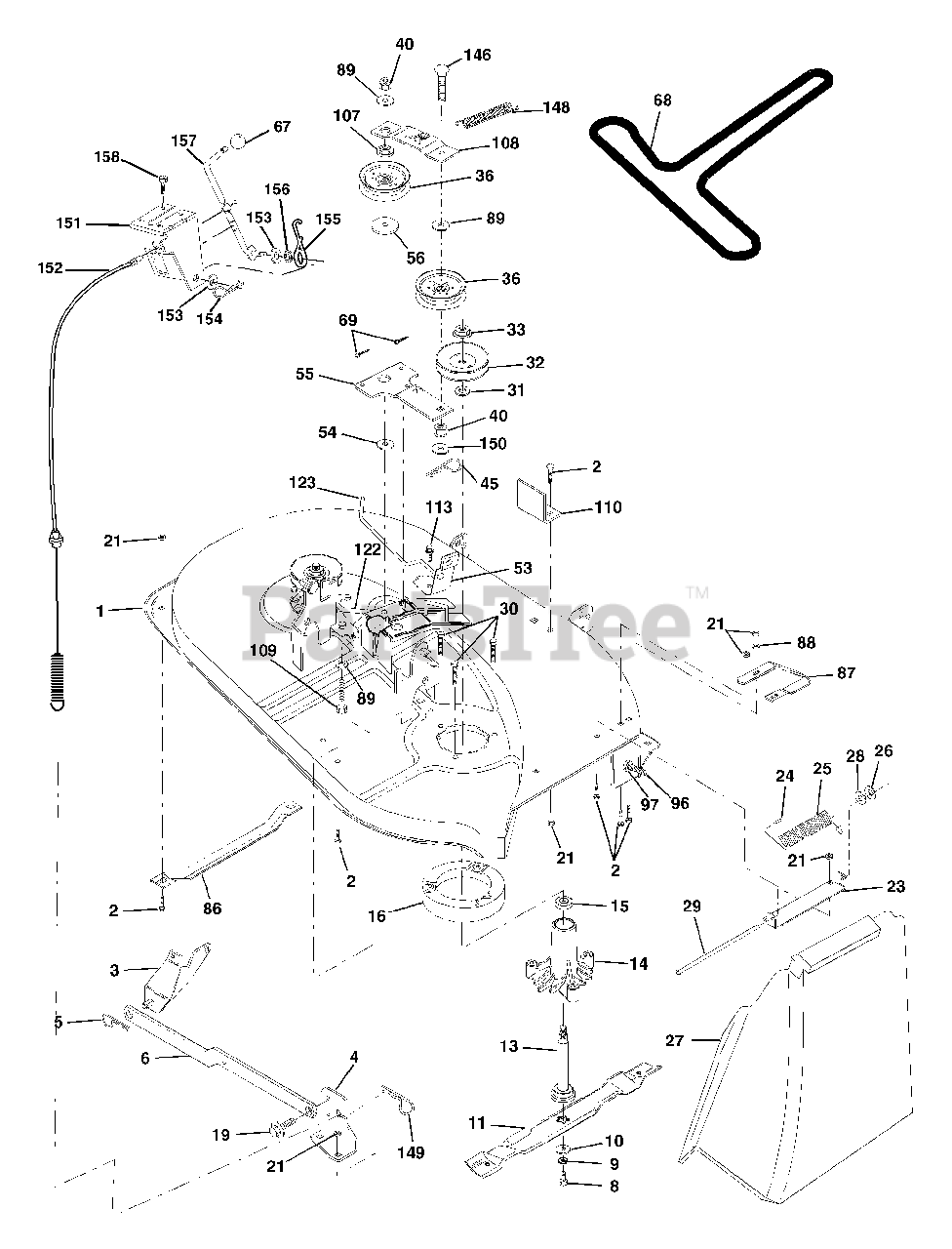

271470 - Poulan Lawn Tractor (2001) Mower Deck Parts Diagram

Lawn Tractor

Mower Deck Parts Diagram

  • Title
1

Electrolux/AYP 170280

Mower Housing Assembly
(Superseded to 532176028)

$

$

Not available

2

Electrolux/AYP 72140506

Bolt, Carriage 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Electrolux/AYP 138017

Bracket Asm. Fram Sway Bar
(Superseded to 532138017)

$12.99

$

In Stock, only 1 left!

0

4

Electrolux/AYP 169970

Bracket, Asm. Deck Sway Bar

$3.99

$

Usually ships in 3-10 days

0

5

Murray 4939M

Retainer, Spring

$

$

Not available

6

Electrolux/AYP 130832

Asm. Suspension Rear
(Superseded to 532130832)

$

$

Not available

8

Electrolux/AYP 850857

Bolt, Hex 3/8-24 x 1-1/4 Gr 8
(Superseded to 532850857)

$4.99

$

In Stock, only 3 left!

0

9

Electrolux/AYP 10030600

Washer, Lock, Hlcl Sprg 3/8
(Superseded to 810030600)

$

$

Not available

10

Electrolux/AYP 140296

Washer, Hard Blade Mower Vented
(Superseded to 532140296)

$6.99

$

In Stock, only 2 left!

0

11

Electrolux/AYP 134148

Blade, Mower, Mulching 38"
(Superseded to 532134148)

$26.99

$

In Stock, only 2 left!

0

13

Electrolux/AYP 137645

Shaft and Bearing Assembly
(Superseded to 532137645)

Note: (Includes Key Number 15)

$34.99

$

In Stock, only 2 left!

0

14

Electrolux/AYP 128774

Mandrel Housing, Vented
(Superseded to 532128774)

$34.99

$

In Stock, only 2 left!

0

15

Electrolux/AYP 110485X

Ball Bearing, Mandrel
(Superseded to 532110485)

$13.99

$

In Stock, Qty 7

0

16

Electrolux/AYP 140329

Stripper, Mower, Vented
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 132827

Bolt, Shoulder
(Superseded to 532132827)

$

$

Not available

21

Murray 73680500

Nut, Crownlock 5/16-18
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

23

Electrolux/AYP 137607

Bracket, Mower Deflector
(Superseded to 532137607)

$6.49

$

In Stock, only 2 left!

0

24

Electrolux/AYP 105304X

Cap, Sleeve
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 123713X

Spring, Deflector
(Superseded to 532123713)

$7.99

$

In Stock, only 3 left!

0

26

Electrolux/AYP 110452X

Nut, Push
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 106736X428

Shield, Deflector
(Superseded to 532106736)

$

$

Not available

28

Electrolux/AYP 19111016

Washer 11/32 x 3/4 x 16 Ga
(Superseded to 819111016)

$3.99

$

In Stock, Qty 18

0

29

Electrolux/AYP 106735X

Rod, Hinge
(Superseded to 532106735)

$10.99

$

In Stock, only 1 left!

0

30

Electrolux/AYP 157722

Screw, Thdro Washer Hd
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Electrolux/AYP 129963

Washer, Spacer
(Superseded to 532187690)

$4.99

$

Usually ships in 3-10 days

0

32

Murray 153532

Pulley, Mandrel
(Superseded to 532173435)

$22.99

$

In Stock, Qty 9

0

33

Electrolux/AYP 137266

Nut, Flangelock 9/16
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

36

Electrolux/AYP 131494

Pulley, Idler, Flat
(Superseded to 597025001)

$26.99

$

In Stock, Qty 7

0

40

Electrolux/AYP 73680600

Nut Crownlock 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 4497H

Retainer, Spring
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

53

Electrolux/AYP 130840

Brake Assembly
(Superseded to 532130840)

$12.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 133943

Washer Hardened
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 133840

Idler Arm Assembly
(Superseded to 532133840)

$

$

Not available

56

Electrolux/AYP 165723

Spacer, Retainer
(Superseded to 532165723)

$6.99

$

In Stock, only 2 left!

0

67

Electrolux/AYP 149846

Knob
(Superseded to 532149846)

$13.99

$

In Stock, only 1 left!

0

68

Electrolux/AYP 144200

Belt
(Superseded to 532144200)

$45.99

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 76020312

Pin, Cotter 3/32 x 3/4
(Superseded to 539003145)

$133.99

$

Usually ships in 3-10 days

0

86

Electrolux/AYP 7631J

Runner, LH
(Superseded to 532007631)

$18.99

$

Usually ships in 3-10 days

0

87

Electrolux/AYP 128772

Runner, RH
(Superseded to 532128772)

$

$

Not available

88

Electrolux/AYP 19111216

Washer 11/32 x 3/4 x 16 Ga
(Superseded to 819111216)

$0.99

$

Usually ships in 3-10 days

0

89

Electrolux/AYP 19131612

Washer 13/32 x 1 x 12 Ga
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

96

UNKNOWN

$

$

Not available

97

UNKNOWN

$

$

Not available

107

Electrolux/AYP 133502

Spacer, Retainer
(Superseded to 532133502)

$6.49

$

In Stock, only 1 left!

0

108

Electrolux/AYP 133503

Stiffener, Idler Arm
(Superseded to 532133503)

$6.49

$

Usually ships in 3-10 days

0

109

Electrolux/AYP 74760640

Bolt, Hex Head 3/8-16 x2-1/2
(Superseded to 874760640)

$

$

Not available

110

Electrolux/AYP 142587

Upstop Deck Front 38"

$2.49

$

Usually ships in 3-10 days

0

113

Electrolux/AYP 17060512

Screw 5/16-18 x 3/4
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

122

Electrolux/AYP 131289

Rod, Brake, LH
(Superseded to 532131289)

$

$

Not available

123

Electrolux/AYP 169971

Rod, Brake, RH
(Superseded to 532169971)

$8.99

$

Usually ships in 3-10 days

0

146

Electrolux/AYP 165891

Bolt Carriage Idler
(Superseded to 532173443)

$7.49

$

In Stock, Qty 9

0

148

Electrolux/AYP 169022

Spring Return Idler
(Superseded to 532169022)

$5.99

$

In Stock, Qty 9

0

149

Electrolux/AYP 165898

Retainer Spring Yellow Zinc
(Superseded to 532165898)

$7.49

$

Usually ships in 3-10 days

0

150

Electrolux/AYP 19091216

Washer 9/32 x 3/4 x 16 Ga.
(Superseded to 819091216)

$4.99

$

Usually ships in 3-10 days

0

151

Electrolux/AYP 169670

Bracket Clutch
(Superseded to 532169670)

$

$

Not available

152

Electrolux/AYP 172758

Cable Clutch 38 In
(Superseded to 532172758)

$87.99

$

In Stock, only 1 left!

0

153

Electrolux/AYP 169674

Washer Flat 3/8" Type B
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

154

Electrolux/AYP 169675

Spring Retainer
(Superseded to 532169675)

$7.49

$

In Stock, only 2 left!

0

155

Electrolux/AYP 169671

Spring Retention Lever
(Superseded to 532169671)

$6.49

$

Usually ships in 3-10 days

0

156

Electrolux/AYP 169672

Spacer
(Superseded to 532169672)

$6.49

$

Usually ships in 3-10 days

0

157

Electrolux/AYP 169669

Rod Clutch
(Superseded to 532169669)

$

$

Not available

158

Electrolux/AYP 17720410

Screw Hex Thd Cut 1/4-20x5/8
(Superseded to 817720410)

$

$

Not available

Electrolux/AYP 130794

Mandrel Assembly
(Superseded to 532130794)

Note: (Includes Key Numbers 12-15, 17-19, 31 and 33)

$56.99

$

In Stock, Qty 7

0

Electrolux/AYP 171665

Mower Deck, Complete
(Superseded to 532171665)

$

$

Not available
