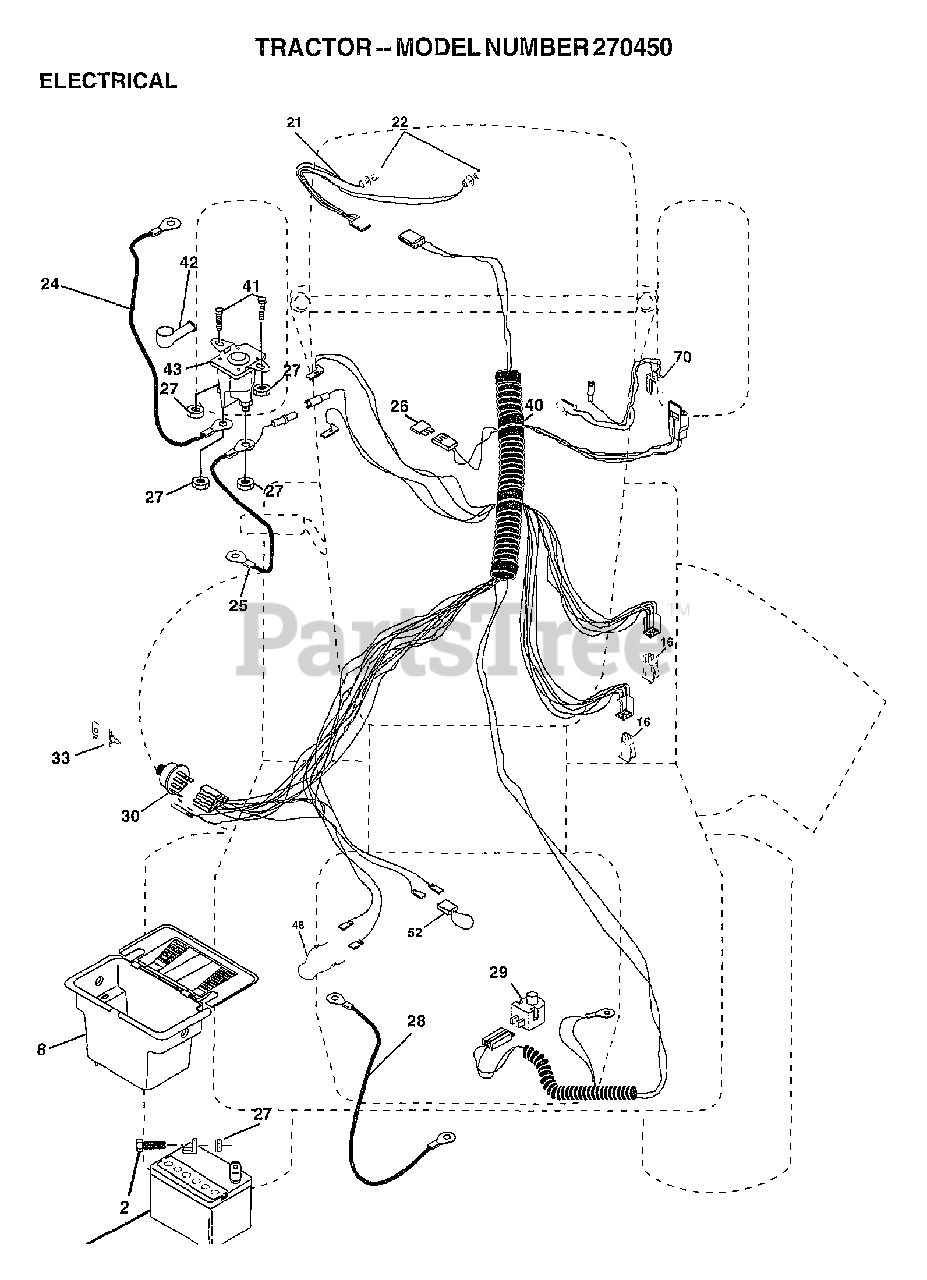

270450 - Electrolux/AYP Lawn Tractor ELECTRICAL Parts Diagram

Lawn Tractor

ELECTRICAL Parts Diagram

  • Title

1

Electrolux/AYP 144925

SUB= 123899X
(Superseded to 532123899)

$194.99

$

In Stock, only 2 left!

0

2

Electrolux/AYP 74760412

BOLT LT
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

8

Electrolux/AYP 156417

"CASE,BATTERY.MECH"
(Superseded to 532404349)

$

$

Not available

16

Electrolux/AYP 153664

SWITCH INTERLOCK
(Superseded to 532176138)

$22.99

$

In Stock, Qty 5

0

21

Electrolux/AYP 166181

HARNESS.ASM.LIGHT W/4152J
(Superseded to 532166181)

$

$

Not available

22

Electrolux/AYP 4152J

HEADLAMP BULB
(Superseded to 532004152)

$4.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 4799J

"CABLE T, BATTERY"
(Superseded to 532004799)

$10.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 146147

CABLE.BTRY.6GA.RD
(Superseded to 532146147)

$34.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 166180

FUSE.15 AMP
(Superseded to 532175158)

$7.49

$

In Stock, only 1 left!

0

27

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

28

Electrolux/AYP 4207J

CABLE T
(Superseded to 532004207)

$8.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 121305X

SWITCH SEAT
(Superseded to 532421062)

$14.99

$

In Stock, only 1 left!

0

30

Electrolux/AYP 163968

SWITCH.IGN.
(Superseded to 532175566)

$26.99

$

In Stock, only 4 left!

0

33

Electrolux/AYP 140403

KEY MLD CRAF DELT
(Superseded to 532140403)

$6.99

$

In Stock, only 1 left!

0

40

Electrolux/AYP 170217

HARNESS IGN
(Superseded to 532179720)

$120.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 71110408

BOLT HXHD FIN
(Superseded to 871110408)

$3.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 131563

SUB= 154336
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

43

Electrolux/AYP 145673

SUB= 146154
(Superseded to 532145673)

$24.99

$

In Stock, only 2 left!

0

48

Electrolux/AYP 140844

ADAPTER AMMETER
(Superseded to 532140844)

$6.49

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 141940

PROTECTION LOOP
(Superseded to 532141940)

$7.49

$

Usually ships in 3-10 days

0

70

UNKNOWN

$

$

Not available

72

Electrolux/AYP 170242

HARNESS ENG
(Superseded to 532170242)

$6.99

$

Usually ships in 3-10 days

0
