270-WUB - MTD 208cc Engine 270-WUB General Assembly Parts Diagram

208cc Engine

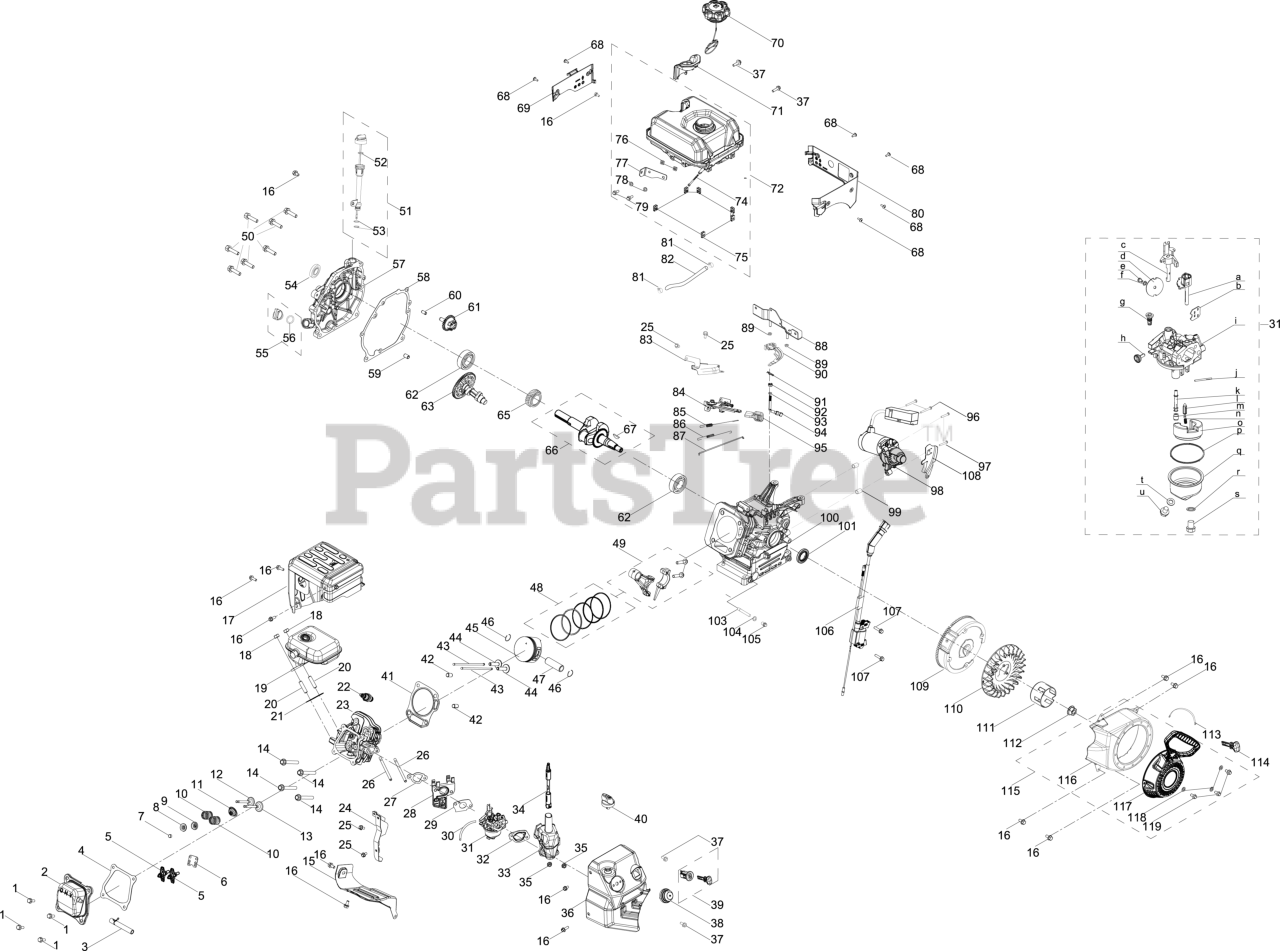

270-WUB General Assembly Parts Diagram

  • Title

1

MTD 751-20029

BOLT M6x16

$2.99

$

Usually ships in 3-6 days

0

2

MTD 751-22108

VALVE COVER
(Superseded to 751P22603)

$6.49

$

Usually ships in 3-6 days

0

3

MTD 751-22109

BREATHER HOSE
(Superseded to 751P22109)

$2.99

$

Usually ships in 3-6 days

0

4

MTD 751P11565B

VALVE COVER GASKET

$10.99

$

Usually ships in 3-6 days

0

5

MTD 751P11892A

ROCKER ARM KIT

$2.49

$

Usually ships in 3-6 days

0

6

MTD 751P21988

ROCKER ARM BASE

$2.99

$

Usually ships in 3-6 days

0

7

MTD 751P12002A

EXHAUST VALVE ADJUSTER

$2.99

$

Usually ships in 3-6 days

0

8

MTD 751P12003A

EXHAUST VALVE SPRING RETAINER

$2.49

$

Usually ships in 3-6 days

0

9

MTD 751P12000A

INTAKE VALVE SPRING RETAINER

$2.49

$

Usually ships in 3-6 days

0

10

MTD 751P12004A

VALVE SPRING

$1.99

$

In Stock, Qty 5

0

11

MTD 751P11894A

INTAKE VALVE SEAL

$2.99

$

Usually ships in 3-6 days

0

12

MTD 751P14100A

EXHAUST VALVE

$3.99

$

In Stock, only 1 left!

0

13

MTD 751P14099A

INTAKE VALVE

$4.49

$

Usually ships in 3-6 days

0

14

MTD 751-22110

FLANGE BOLT M8-1.25 x 55

$2.99

$

Usually ships in 3-6 days

0

15

MTD 751-22111

SHROUD
(Superseded to 751P22111)

$3.49

$

Usually ships in 3-6 days

0

16

MTD 751-22113

FLANGE BOLT M6-1 x 12

$2.99

$

Usually ships in 3-6 days

0

17

MTD 951-15155

MUFFLER GUARD

$69.99

$

Usually ships in 3-6 days

0

18

MTD 751-20059

NUT M8

$2.99

$

Usually ships in 3-6 days

0

19

MTD 951-15158

MUFFLER

$75.99

$

Usually ships in 3-6 days

0

20

MTD 751-20061

STUD M8 X 34

$2.99

$

Usually ships in 3-6 days

0

21

MTD 751P11289A

MUFFLER GASKET

$2.49

$

In Stock, only 2 left!

0

22

MTD 951-10292A

SPARK PLUG (F6RTC/RN11YC/BPR6ES)

$6.99

$

In Stock, Qty 20+

0

23

MTD 751-22088

CYLINDER HEAD
(Superseded to 751P22088)

$46.99

$

Usually ships in 3-6 days

0

24

MTD 751-22112

SNOW GUARD
(Superseded to 751P22112)

$3.49

$

Usually ships in 3-6 days

0

25

MTD 751-22113

FLANGE BOLT M6-1 x 12

$2.99

$

Usually ships in 3-6 days

0

26

MTD 751-22114

STUD M6 x 90

$2.99

$

Usually ships in 3-6 days

0

27

MTD 751P11567B

CARBURETOR INSULATOR GASKET

$1.99

$

In Stock, Qty 20+

0

28

MTD 751P11568A

INSULATOR

$3.49

$

In Stock, only 3 left!

0

29

MTD 951-11569A

CARBURETOR GASKET
(Superseded to 751P12005A)

$5.99

$

In Stock, Qty 20+

0

30

MTD 735-06858

PRIMER HOSE
(Superseded to 735P06858)

$2.99

$

Usually ships in 3-6 days

0

31

MTD 651-08679

CARBURETOR (KEIMA)
(Superseded to 651P08679)

$41.99

$

Usually ships in 3-6 days

0

32

MTD 751P11897B

CARBURETOR GASKET PLATE

$1.99

$

In Stock, Qty 20+

0

33

MTD 951-15186

HEATER BOX

$

$

Not available

34

MTD 751P18086

CHOKE LEVER

$5.99

$

In Stock, only 2 left!

0

35

MTD 751-20110

NUT M6

$2.99

$

Usually ships in 3-6 days

0

36

MTD 951-15164

CONTROL PANEL
(Superseded to 951-15164A)

$25.99

$

In Stock, only 1 left!

0

37

MTD 710-05003

BOLT M6-1 x 18 GR8.8

$4.49

$

In Stock, only 4 left!

0

38

MTD 951-10639A

PRIMER

$15.99

$

In Stock, Qty 17

0

39

MTD 951-15022

ENGINE KEY SWITCH ASSEMBLY
(Superseded to 951-15022A)

$10.99

$

Usually ships in 3-6 days

0

40

MTD 951-15450

CHOKE LEVER

$

$

Not available

41

MTD 951-14316

CYLINDER HEAD GASKET

$11.99

$

Usually ships in 3-6 days

0

42

MTD 715P04090A

PIN (10MMx16MM)

$3.49

$

Usually ships in 3-6 days

0

43

MTD 751P14105A

PUSH ROD

$2.99

$

Usually ships in 3-6 days

0

44

MTD 751P11899A

TAPPET

$7.49

$

Usually ships in 3-6 days

0

45

MTD 951-15052

PISTON

$41.99

$

Usually ships in 3-6 days

0

46

MTD 951-11632A

PISTON PIN SNAP RING

$4.49

$

Usually ships in 3-6 days

0

47

MTD 751P11633A

PISTON PIN

$1.99

$

Usually ships in 3-6 days

0

48

MTD 951-14317

PISTON RING 4PC SET
(Superseded to 951-14317A)

$27.99

$

In Stock, only 1 left!

0

49

MTD 751P11573A

CONNECTING ROD

$10.99

$

In Stock, only 1 left!

0

50

MTD 710-04932

BOLT M8-1.25 x 32 GR5.8

$4.49

$

Usually ships in 3-6 days

0

51

MTD 951-05020A

DIPSTICK ASSEMBLY
(Superseded to 951-05020B)

$15.99

$

Usually ships in 3-6 days

0

52

MTD 921-04663A

O-RING

$5.99

$

Usually ships in 3-6 days

0

53

MTD 951-12397

OIL FILL TUBE O-RING

$5.49

$

Usually ships in 3-6 days

0

54

MTD 751P11368A

OIL SEAL

$3.49

$

In Stock, Qty 13

0

55

MTD 931-09966

OIL PLUG

$6.49

$

Usually ships in 3-6 days

0

56

MTD 951-11577

O-RING 15.8 x 2.5

$4.49

$

Usually ships in 3-6 days

0

57

MTD 951-12125

CRANKCASE COVER

$115.99

$

Usually ships in 3-6 days

0

58

MTD 751P11371B

CRANKCASE GASKET

$3.99

$

In Stock, only 4 left!

0

59

MTD 715-04096A

DOWEL PIN 9 X 14

$4.49

$

Usually ships in 3-6 days

0

60

MTD 715-04092A

DOWEL PIN 7 X 14

$3.49

$

Usually ships in 3-6 days

0

61

MTD 751P11576A

GOVERNOR GEAR

$3.49

$

Usually ships in 3-6 days

0

62

MTD 751P11369A

BEARING

$5.99

$

Usually ships in 3-6 days

0

63

MTD 751P15128A

CAMSHAFT

$8.49

$

Usually ships in 3-6 days

0

65

MTD 951-15130A

DRIVE TIMING GEAR

$11.99

$

Usually ships in 3-6 days

0

66

MTD 751P15129A

CRANKSHAFT

$44.99

$

Usually ships in 3-6 days

0

67

MTD 751P10307A

WOODRUFF KEY

$2.49

$

Usually ships in 3-6 days

0

68

MTD 951-15189

BOLT: M5 x 14

$4.49

$

Usually ships in 3-6 days

0

69

MTD 951-15191

FUEL TANK SHROUD (RH)

$7.49

$

Usually ships in 3-6 days

0

70

MTD 951-15172

FUEL CAP

$

$

Not available

71

MTD 951-15170

DECORATIVE COVER

$6.99

$

Usually ships in 3-6 days

0

72

MTD 951-15173

FUEL TANK

$

$

Not available

74

MTD 951-12296A

FUEL FILTER

$9.99

$

In Stock, Qty 20+

0

75

MTD 951-15578

FUEL TANK MOUNT THREADED TAB

$3.99

$

Usually ships in 3-6 days

0

76

MTD 751-22116

NUT M6

$2.99

$

Usually ships in 3-6 days

0

77

MTD 951-15577

FUEL TANK MOUNT TAB

$4.99

$

Usually ships in 3-6 days

0

78

MTD 736-05197

WASHER 6.5 x 1.5 x 12

$4.99

$

Usually ships in 3-6 days

0

79

MTD 751-22117

BOLT M6 x 20

$2.99

$

Usually ships in 3-6 days

0

80

MTD 951-15231

DECORATIVE SHEET (LH)

$7.49

$

Usually ships in 3-6 days

0

81

MTD 951-11700A

CARBURETOR HOSE CLAMP

$4.49

$

Usually ships in 3-6 days

0

82

MTD 951-15169

FUEL HOSE 6.3 x 12.5 x 162
(Superseded to 951-15169A)

$22.99

$

Usually ships in 3-6 days

0

83

MTD 751-22118

GOVERNOR SHIELD
(Superseded to 751P22118)

$2.99

$

Usually ships in 3-6 days

0

84

MTD 751-22119

THROTTLE CONTROL BRACKET
(Superseded to 751P22119)

$5.99

$

Usually ships in 3-6 days

0

85

MTD 751P19229

GOVERNOR SPRING

$7.99

$

Usually ships in 3-6 days

0

86

MTD 751P10664A

THROTTLE SPRING

$2.49

$

In Stock, only 1 left!

0

87

MTD 751P10665A

THROTTLE LINKAGE

$1.99

$

In Stock, only 1 left!

0

88

MTD 751-22120

FUEL TANK BRACKET
(Superseded to 751P22120)

$2.99

$

Usually ships in 3-6 days

0

89

MTD 751-20120

NUT M6

$2.99

$

Usually ships in 3-6 days

0

90

MTD 751-20121

GOVERNOR LEVER
(Superseded to 751P20121)

$2.99

$

Usually ships in 3-6 days

0

91

MTD 714-04078A

COTTER PIN

$3.99

$

Usually ships in 3-6 days

0

92

MTD 751-22281

OIL SEAL 6x11x4
(Superseded to 751P22281)

$2.99

$

Usually ships in 3-6 days

0

93

MTD 736-04461

O-RING

$3.99

$

Usually ships in 3-6 days

0

94

MTD 710-04932

BOLT M8-1.25 x 32 GR5.8

$4.49

$

Usually ships in 3-6 days

0

95

MTD 951-11224

THROTTLE CONTROL KNOB

$7.99

$

In Stock, Qty 5

0

96

MTD 751-15472

SCREW

$4.99

$

Usually ships in 3-6 days

0

97

MTD 751-22121

BOLT M6 x 32

$2.99

$

Usually ships in 3-6 days

0

98

MTD 951-15229

ELECTRIC STARTER

$367.99

$

Usually ships in 3-6 days

0

99

MTD 715-04088A

DOWEL PIN

$3.49

$

Usually ships in 3-6 days

0

100

MTD 751P14149A

CRANKCASE

$87.99

$

Usually ships in 3-6 days

0

101

MTD 751P11370A

OIL SEAL

$2.99

$

In Stock, only 2 left!

0

103

MTD 951-11350

OIL DRAIN PIPE

$9.49

$

Usually ships in 3-6 days

0

104

MTD 736-04440A

FLAT WASHER

$6.99

$

In Stock, only 2 left!

0

105

MTD 710-09815

DRAIN PLUG M10-1.25x15

$3.99

$

Usually ships in 3-6 days

0

106

MTD 751-22123

IGNITION MODULE
(Superseded to 751P22123)

$17.99

$

Usually ships in 3-6 days

0

107

MTD 751-20124

BOLT M6x25

$2.99

$

Usually ships in 3-6 days

0

108

MTD 751-22122

LOWER SHIELD
(Superseded to 751P22122)

$2.99

$

Usually ships in 3-6 days

0

109

MTD 751P12416A

FLYWHEEL

$59.99

$

Usually ships in 3-6 days

0

110

MTD 951-10909A

COOLING FAN

$23.99

$

In Stock, only 2 left!

0

111

MTD 751-22124

STARTER CUP
(Superseded to 751P22124)

$4.99

$

Usually ships in 3-6 days

0

112

MTD 751-20125

NUT M14 X 1.5

$2.99

$

Usually ships in 3-6 days

0

113

MTD 725-06031A

CABLE TIE 3x150

$2.49

$

Usually ships in 3-6 days

0

114

MTD 951-10630

IGNITION KEY

$6.99

$

In Stock, Qty 7

0

115

MTD 951-05442

RECOIL STARTER

$79.99

$

Usually ships in 3-6 days

0

116

MTD 951-15228

BLOWER HOUSING

$44.99

$

Usually ships in 3-6 days

0

117

MTD 951-15538

RECOIL STARTER ASSEMBLY

$70.99

$

Usually ships in 3-6 days

0

118

MTD 736-04455B

FLAT WASHER

$6.99

$

Usually ships in 3-6 days

0

119

MTD 751-20126

BOLT M6 X 10

$2.99

$

Usually ships in 3-6 days

0

31

MTD 651-08535

Carburetor

$

$

Currently unavailable

a

Choke Shaft

$

$

Not available

b

Choke Plate

$

$

Not available

c

Throttle Shaft

$

$

Not available

d

MTD 708P05018

THROTTLE PLATE

$2.99

$

Usually ships in 3-6 days

0

e

MTD 710-07736

SCREW M3 x 6

$

$

Not available

f

MTD 736-04638

CHOKE CONTROL LEVER WASHER
(Superseded to 736-04638A)

$3.49

$

In Stock, only 1 left!

0

g

Idle Jet

$

$

Not available

h

Idle Adjusting Screw

$

$

Not available

i

Carburetor Body

$

$

Not available

j

MTD 711-06043

HINGE FLOAT PIN

$0.99

$

Usually ships in 3-6 days

0

k

Nozzle Tube

$

$

Not available

l

MTD 793P00165

NEEDLE VALVE
(Superseded to 793P00165A)

$4.99

$

In Stock, Qty 11

0

m

Main Jet

$

$

Not available

n

MTD 732P05251

NEEDLE VALVE SPRING
(Superseded to 732P05251A)

$1.99

$

Usually ships in 3-6 days

0

o

MTD 731P09132A

FLOAT

$5.49

$

Usually ships in 3-6 days

0

p

MTD 951-11589A

FUEL BOWL O-RING

$6.99

$

In Stock, Qty 20+

0

q

MTD 608P05002

FUEL BOWL

$5.99

$

Usually ships in 3-6 days

0

r

MTD 951-11348

FUEL BOWL GASKET
(Superseded to 951-11348A)

$5.99

$

Usually ships in 3-6 days

0

s

MTD 710-04945

BOLT M8-1 x 10

$4.49

$

In Stock, only 4 left!

0

t

MTD 951-11349A

FUEL DRAIN PLUG GASKET

$4.49

$

In Stock, Qty 11

0

u

MTD 710-04938

FUEL DRAIN PLUG

$4.49

$

In Stock, only 1 left!

0

MTD 952Z270-WUB

COMPLETE ENGINE 208cc

$783.99

$

Usually ships in 3-6 days

0
