270-VU - Troy-Bilt Engine 270-VU Crankcase Parts Diagram

Engine

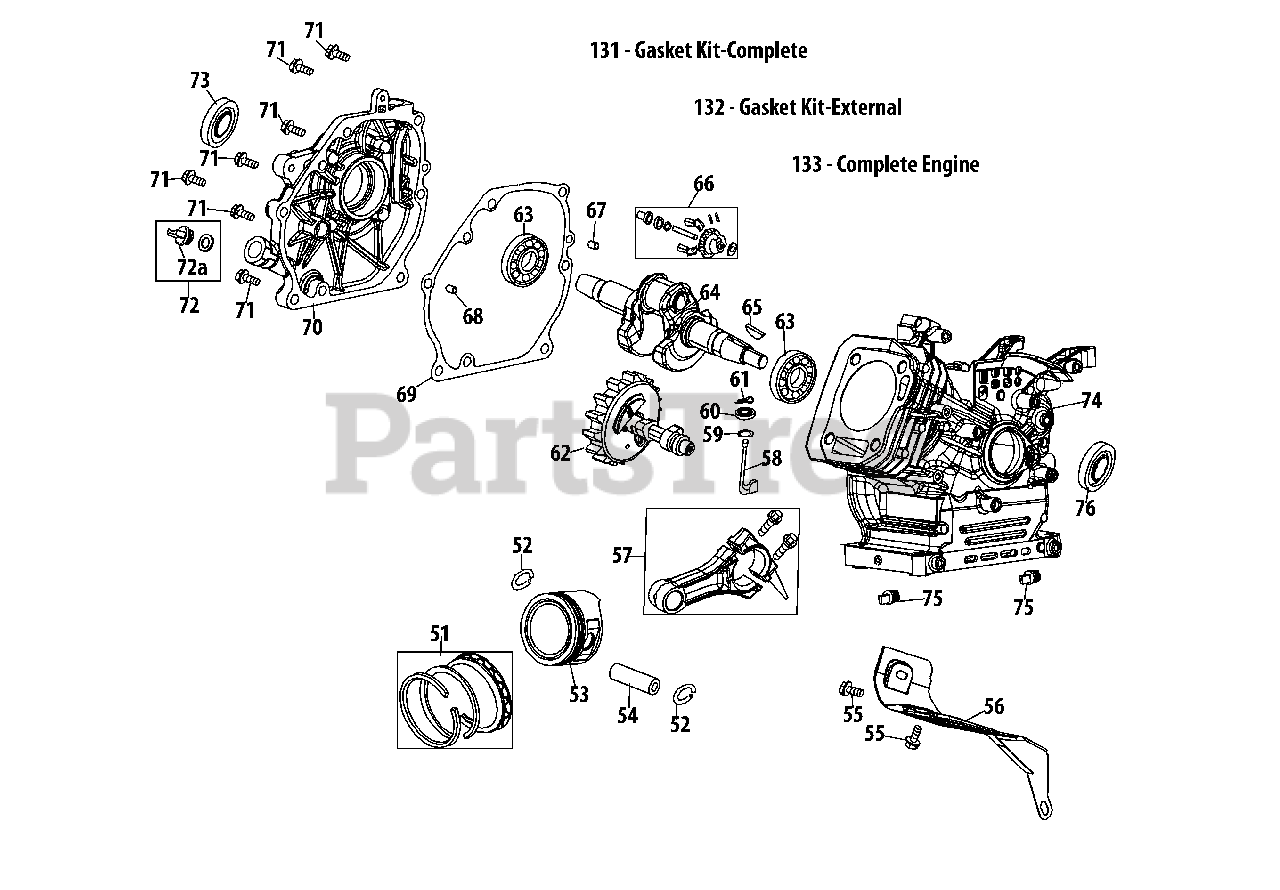

270-VU Crankcase Parts Diagram

  • Title

51

Troy-Bilt 951-12111

Piston Ring Set
(Superseded to 751P12111A)

$6.99

$

In Stock, Qty 12

0

52

Troy-Bilt 951-11632

Piston Pin Snap Ring

$4.49

$

Usually ships in 3-6 days

0

53

Troy-Bilt 951-12007

Piston

$35.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 951-11633

Piston Pin

$7.99

$

Usually ships in 3-6 days

0

55

Troy-Bilt 710-04915

Bolt M6×12

$4.49

$

In Stock, Qty 20+

0

56

Troy-Bilt 951-11113

Air Shield

$9.49

$

Usually ships in 3-6 days

0

57

Troy-Bilt 951-11573

Connecting Rod Assembly
(Superseded to 751P11573A)

$10.99

$

In Stock, Qty 11

0

58

Troy-Bilt 951-14053

Governor Arm Shaft

$15.99

$

Usually ships in 3-6 days

0

59

Troy-Bilt 736-04461

Washer 5.2×1.9

$3.99

$

Usually ships in 3-6 days

0

60

Troy-Bilt 951-11902

Governor Seal
(Superseded to 951-11902A)

$3.99

$

In Stock, only 2 left!

0

61

Troy-Bilt 714-04078

Cotter Pin

$4.49

$

In Stock, only 1 left!

0

62

Troy-Bilt 951-11575

Camshaft Assembly

$65.99

$

Usually ships in 3-6 days

0

63

Troy-Bilt 951-11369

Radial Ball Bearing,6205

$34.99

$

Usually ships in 3-6 days

0

64

Troy-Bilt 951-12160

Crankshaft Assembly

$138.99

$

Usually ships in 3-6 days

0

64

Troy-Bilt 951-14143

Crankshaft Service Kit

Note: (Incl.63-65,73,76)

$153.99

$

Usually ships in 3-6 days

0

65

Troy-Bilt 951-10307

Woodruff Key
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 10

0

66

Troy-Bilt 951-11576

Governor Gear/Shaft Assembly
(Superseded to 751P11576A)

$3.49

$

Usually ships in 3-6 days

0

67

Troy-Bilt 715-04092

Dowel Pin 7×14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

68

Troy-Bilt 715-04096

Dowel Pin 9×14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

69

Troy-Bilt 951-11371

Crankcase Cover Gasket
(Superseded to 951-11371A)

$3.99

$

In Stock, Qty 20+

0

70

Troy-Bilt 951-12125

Crankcase Cover

$115.99

$

Usually ships in 3-6 days

0

70

Troy-Bilt 951-14142

Crankcase Cover Kit
(Superseded to 951-14142A)

Note: (Incl.63,69-73)

$80.99

$

Usually ships in 3-6 days

0

71

Troy-Bilt 710-04932

Bolt M8×32

$4.49

$

Usually ships in 3-6 days

0

72

Troy-Bilt 951-11283

Oil Fill Plug Assembly

$6.99

$

In Stock, only 1 left!

0

72a

Troy-Bilt 951-11577

O-Ring

$4.49

$

Usually ships in 3-6 days

0

73

Troy-Bilt 951-11578

Oil Seal,25×41.25×6

$14.99

$

Usually ships in 3-6 days

0

74

Troy-Bilt 951-14144

Crankcase Service Kit

Note: (Incl.60,63,73-76)

$198.99

$

Usually ships in 3-6 days

0

74

Troy-Bilt 951-12551

Short Block Assembly
(Superseded to 951-05031)

Note: (Incl.4,20,28-30,45,47,48,51-54,57-76)

$436.99

$

Usually ships in 3-6 days

0

75

Troy-Bilt 951-12514

Oil Drain Plug
(Superseded to 951-12514A)

$6.49

$

Usually ships in 3-6 days

0

76

Troy-Bilt 951-12126

Oil Seal 25 X 41.25 X 6

$14.99

$

Usually ships in 3-6 days

0

131

Troy-Bilt 951-12572

Gasket Kit-Complete

Note: (Incl.4,20,28-30,32,45,59,60,69,73,76)

$66.99

$

Usually ships in 3-6 days

0

132

Troy-Bilt 951-12026A

Gasket Kit-External

Note: (Incl.4,20,28-30,32)

$31.99

$

Usually ships in 3-6 days

0

133

Troy-Bilt 952Z270-VU

Complete Engine

$

$

Currently unavailable
