270-VU - MTD Engine 270-VU Fuel Tank & Mounting Parts Diagram

Engine

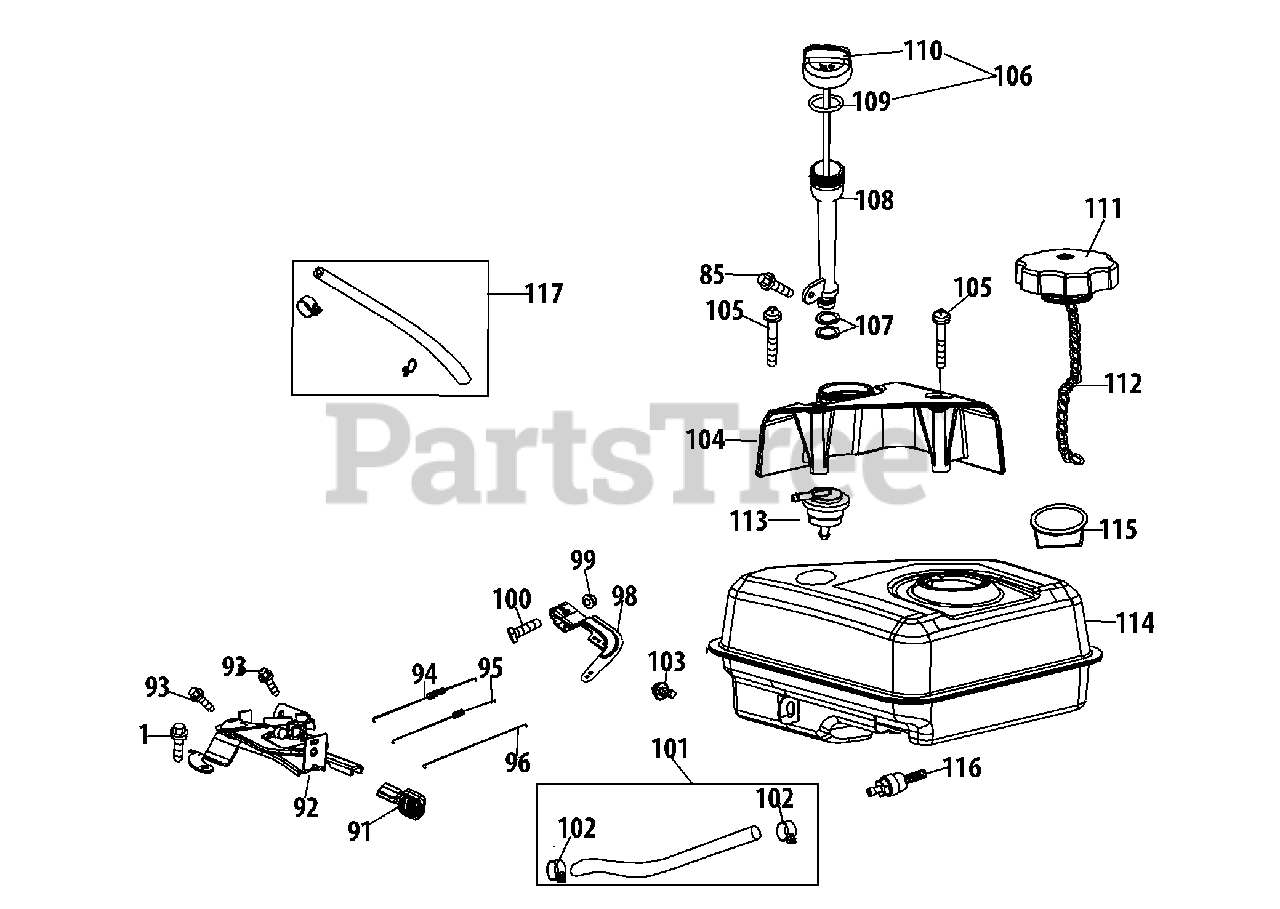

270-VU Fuel Tank & Mounting Parts Diagram

  • Title
1

MTD 710-04968

Bolt M6×16

$6.99

$

In Stock, only 3 left!

0

91

MTD 951-11067

Throttle Control Knob

$3.99

$

Usually ships in 3-6 days

0

92

MTD 951-12131

Primer Bracket

$20.99

$

Usually ships in 3-6 days

0

93

MTD 710-05103

Bolt M6×12

$4.49

$

In Stock, only 2 left!

0

94

MTD 951-11585

Governor Spring

$7.49

$

In Stock, Qty 7

0

95

MTD 951-10664

Throttle Linkage Spring
(Superseded to 751P10664A)

$2.49

$

In Stock, only 1 left!

0

96

MTD 951-10665

Throttle Linkage
(Superseded to 751P10665A)

$1.99

$

In Stock, Qty 20+

0

98

MTD 951-11106

Governor Arm

$7.99

$

Usually ships in 3-6 days

0

99

MTD 712-04212

Nut M6
(Superseded to 712-05015)

$6.99

$

In Stock, Qty 20+

0

100

MTD 710-04908

Governor Arm Bolt

$6.49

$

Usually ships in 3-6 days

0

101

MTD 951-10650

Fuel Line Kit

$28.99

$

In Stock, only 2 left!

0

102

MTD 951-11700

Fuel Hose Clamp
(Superseded to 951-11700A)

$4.49

$

Usually ships in 3-6 days

0

103

MTD 710-04915

Bolt M6×12

$4.49

$

In Stock, Qty 20+

0

104

MTD 951-11914

Dipstick Decoration Cover

$14.99

$

In Stock, Qty 7

0

105

$4.49

$

Usually ships in 3-6 days

0

106

MTD 951-11913

Oil Fill Tube Assembly

$16.99

$

In Stock, Qty 5

0

107

MTD 951-11381

Fill Tube O-Ring

$5.49

$

In Stock, Qty 10

0

108

MTD 951-10656

Dipstick Tube
(Superseded to 631-05020AP)

$34.99

$

In Stock, only 1 left!

0

109

MTD 951-11904

Dipstick O-Ring

$4.49

$

In Stock, Qty 9

0

110

MTD 951-12482

Dipstick Assy

$15.99

$

Usually ships in 3-6 days

0

111

MTD 951-12535

Cap Comp,Fuel Feller

$23.99

$

In Stock, Qty 12

0

112

MTD 951-14076

Fuel Cap Tether

$8.99

$

Usually ships in 3-6 days

0

113

MTD 951-14075

Roll Over Valve
(Superseded to 951-14075A)

$28.99

$

In Stock, Qty 13

0

114

MTD 951-10653B

Fuel Tank

$79.99

$

In Stock, Qty 10

0

115

MTD 951-11933

Fuel Level Indicator

$9.99

$

Usually ships in 3-6 days

0

116

MTD 951-10651

Fuel Tank Nipple

$15.99

$

In Stock, Qty 16

0

117

MTD 951-14133

Evap Hose Assembly

$4.99

$

In Stock, only 3 left!

0
