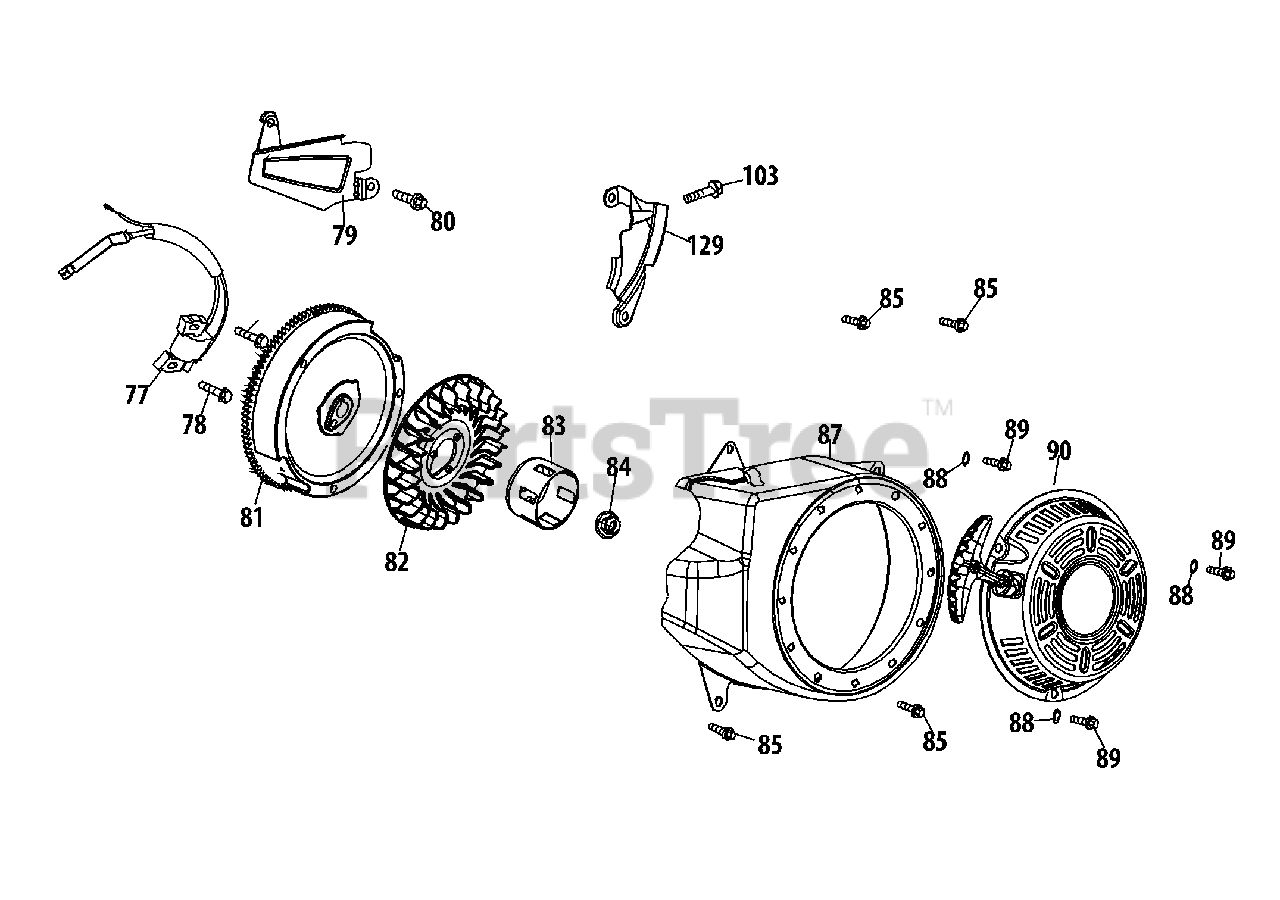

270-VU - MTD Engine 270-VU Flywheel & Blower Housing Parts Diagram

Engine

270-VU Flywheel & Blower Housing Parts Diagram

  • Title

77

MTD 951-10792

Ignition Coil Assembly

$96.99

$

In Stock, only 1 left!

0

78

MTD 710-04919

Bolt M6×25

$4.49

$

Usually ships in 3-6 days

0

79

MTD 951-11110

Air Flow Shield

$4.49

$

Usually ships in 3-6 days

0

80

MTD 710-04940

Bolt M6×10

$5.49

$

In Stock, only 3 left!

0

81

MTD 951-12416

Flywheel
(Superseded to 751P12416A)

$59.99

$

Usually ships in 3-6 days

0

82

MTD 951-10934

Cooling Fan
(Superseded to 951-10909A)

$23.99

$

Usually ships in 3-6 days

0

83

MTD 951-10911

Pulley,Starter

$17.99

$

Usually ships in 3-6 days

0

84

MTD 712-04209

Flywheel Nut,M14×1.5
(Superseded to 712-04287)

$6.99

$

In Stock, only 1 left!

0

85

MTD 710-04915

Bolt M6×12

$4.49

$

In Stock, Qty 20+

0

87

MTD 951-12417

Blower Housing

$85.99

$

Usually ships in 3-6 days

0

88

MTD 736-04455

Washer
(Superseded to 736-04455B)

$6.99

$

Usually ships in 3-6 days

0

89

MTD 710-04974

Bolt M6×10

$6.99

$

In Stock, only 3 left!

0

90

MTD 951-12418

Recoil Starter Assembly

$90.99

$

In Stock, only 1 left!

0

103

MTD 710-04915

Bolt M6×12

$4.49

$

In Stock, Qty 20+

0

129

MTD 951-11109

Blower Housing Shield

$7.49

$

Usually ships in 3-6 days

0
