270-V0 - Troy-Bilt Engine 270-V0 Carburetor Assembly Parts Diagram

Engine

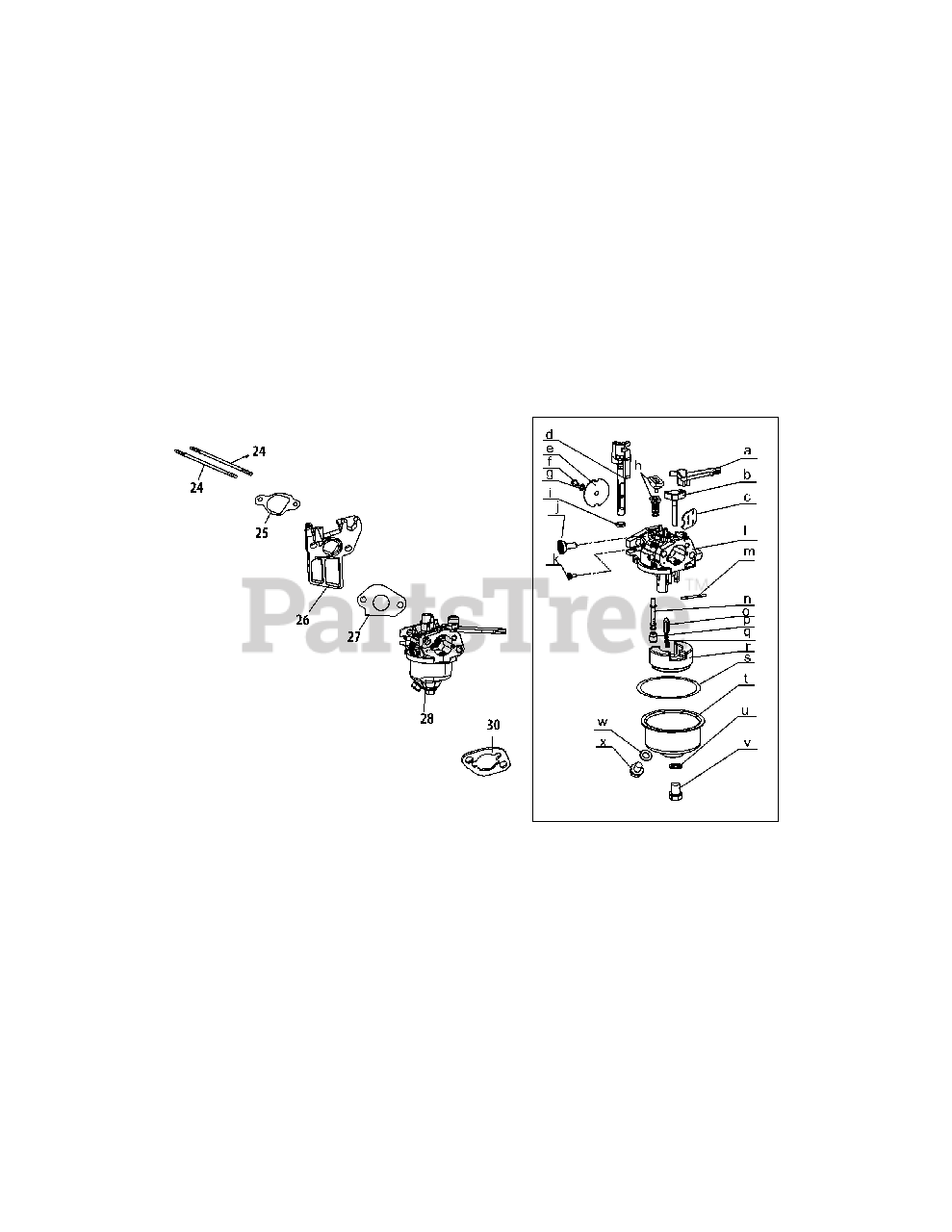

270-V0 Carburetor Assembly Parts Diagram

  • Title
24

Troy-Bilt 710-05101

Carburetor Stud M6×110

$4.49

$

In Stock, only 4 left!

0

25

Troy-Bilt 951-11567

Carburetor Insulator Gskt
(Superseded to 751P11567B)

$1.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 951-11568

Carburetor Insulator Plate
(Superseded to 751P11568A)

$3.49

$

In Stock, Qty 13

0

27

Troy-Bilt 951-11569

Carburetor Gasket
(Superseded to 951-11569A)

$5.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 951-10797

Carburetor Assembly
(Superseded to 951-12785)

$124.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 951-11571

Carburetor Gasket Plate

$5.99

$

In Stock, Qty 20+

0

a

Control Lever, Choke

$

$

Not available

b

Choke Shaft

$

$

Not available

c

Choke Plate

$

$

Not available

d

Throttle Shaft

$

$

Not available

e

Throttle Plate

$

$

Not available

f

Screw M3x5

$

$

Not available

g

Lock Washer

$

$

Not available

h

Idle Jet Assembly

$

$

Not available

i

Gasket, Throttle Plate

$

$

Not available

j

Idle Speed Adjusting Screw

$

$

Not available

k

Mixture Screw

$

$

Not available

l

Carburetor Body

$

$

Not available

m

Float Pin

$

$

Not available

n

Emulsion Tube

$

$

Not available

o

Needle Valve

$

$

Not available

p

Main Jet

$

$

Not available

q

Needle Valve Spring

$

$

Not available

r

Float

$

$

Not available

s

Troy-Bilt 951-11589

Fuel Bowl Gasket
(Superseded to 951-11589A)

$6.99

$

In Stock, Qty 20+

0

t

Fuel Bowl

$

$

Not available

u

Troy-Bilt 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

$5.99

$

In Stock, Qty 20+

0

v

Troy-Bilt 710-04945

Fuel Bowl Mounting Bolt

$4.49

$

In Stock, Qty 13

0

w

Troy-Bilt 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 20+

0

x

Troy-Bilt 710-04938

Fuel Drain Plug

$4.49

$

In Stock, Qty 10

0

Troy-Bilt 951-10800A

Carburetor Repair Kit - Major
(Superseded to 951-12783)

Note: Not shown, (Incl. A,H-J,M-S.U,W)

$58.99

$

In Stock, only 2 left!

0
