270-SUA - MTD Engine 270-SUA Cylinder Head Parts Diagram

Engine

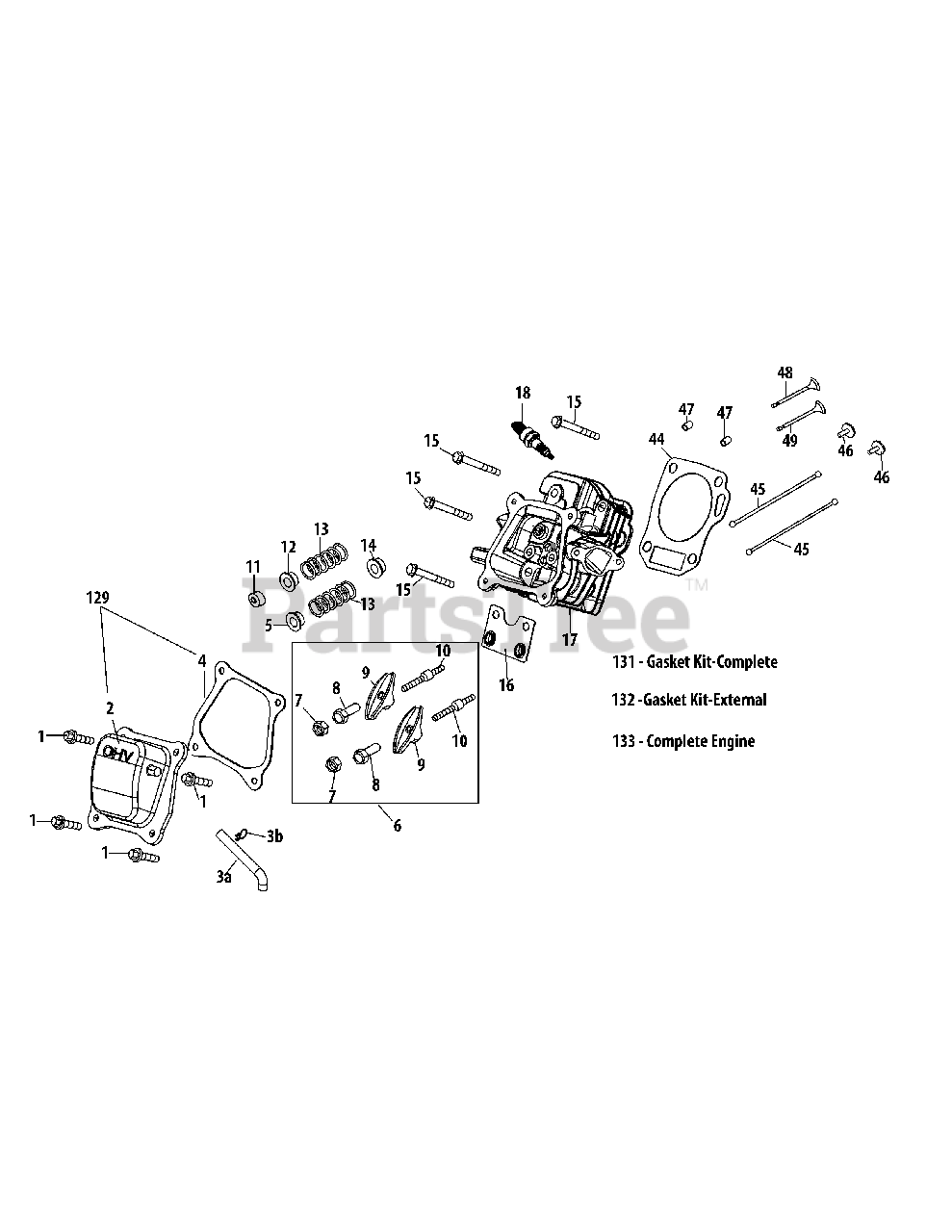

270-SUA Cylinder Head Parts Diagram

  • Title
1

MTD 710-04968

Flange Bolt M6

$6.99

$

In Stock, only 3 left!

0

2

MTD 951-11054A

Valve Cover
(Superseded to 951-11054B)

$15.99

$

Usually ships in 3-6 days

0

3a

MTD 951-14855

Hose-Breather

$8.99

$

In Stock, Qty 6

0

3b

MTD 726-04101

Clamp-Breather Hose

$4.49

$

Usually ships in 3-6 days

0

4

MTD 951-11565

Valve Cover Gasket
(Superseded to 751P11565B)

$10.99

$

In Stock, Qty 12

0

5

MTD 951-12000

Intake Valve Spring Retainer

$4.49

$

In Stock, only 1 left!

0

6

MTD 951-11892

Rocker Arm Assembly

$40.99

$

Usually ships in 3-6 days

0

7

MTD 751-11124

Nut - Pivot Lockin

$9.49

$

In Stock, only 2 left!

0

8

MTD 751-11123

Nut - Valve Adjust

$10.99

$

In Stock, only 4 left!

0

9

MTD 951-11893

Rocker Arm

$7.99

$

Usually ships in 3-6 days

0

10

MTD 710-04902

Bolt - Pivot

$6.99

$

In Stock, only 4 left!

0

11

MTD 951-12002

Exhaust Valve Adjuster
(Superseded to 751P12002A)

$2.99

$

In Stock, only 3 left!

0

12

MTD 951-12003

Exhaust Valve Spring Retainer

$4.49

$

In Stock, only 1 left!

0

13

MTD 951-12004

Valve Spring
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 5

0

14

MTD 951-11894

Intake Valve Seal

$10.99

$

Usually ships in 3-6 days

0

15

MTD 710-04933

Bolt - M8 X 55 Zin

$3.99

$

In Stock, Qty 10

0

16

MTD 951-11895

Push Rod Guide

$8.99

$

Usually ships in 3-6 days

0

17

MTD 951-10722B

Cylinder Head Assembly

Note: (Incl. 4-14,16,17,21,27-29,44,48,49)

$170.99

$

In Stock, only 1 left!

0

18

MTD 951-10292

Plug:Spark
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

44

MTD 951-11572

Gasket-Cylinder Head

$11.99

$

In Stock, Qty 18

0

45

MTD 951-10648

Kit-Push Rod

$17.99

$

In Stock, only 3 left!

0

46

MTD 951-11899

Tappet

$8.49

$

In Stock, only 4 left!

0

47

MTD 715-04108

Pin-Dowl 10 X 16

$4.49

$

In Stock, only 1 left!

0

48

MTD 951-10647A

Valve Kit

$64.99

$

Usually ships in 3-6 days

0

49

MTD 951-10647A

Valve Kit

$64.99

$

Usually ships in 3-6 days

0

129

MTD 951-12626

Valve Cover Kit

$28.99

$

Usually ships in 3-6 days

0

131

MTD 951-11059A

Gasket Kit-Complete

Note: (Incl. 4,21,27-29,32,44,58,59,68,74,77,79)

$52.99

$

In Stock, only 1 left!

0

132

MTD 951-10661B

Gasket Kit-External

Note: (Incl. 4,21,27-29,32,77)

$32.99

$

In Stock, Qty 5

0

133

MTD 952Z270-SUA

Complete Engine
(Superseded to 952Z270-WUB)

$783.99

$

Usually ships in 3-6 days

0
