270-SU - MTD Engine 270-SU Crankcase Parts Diagram

Engine

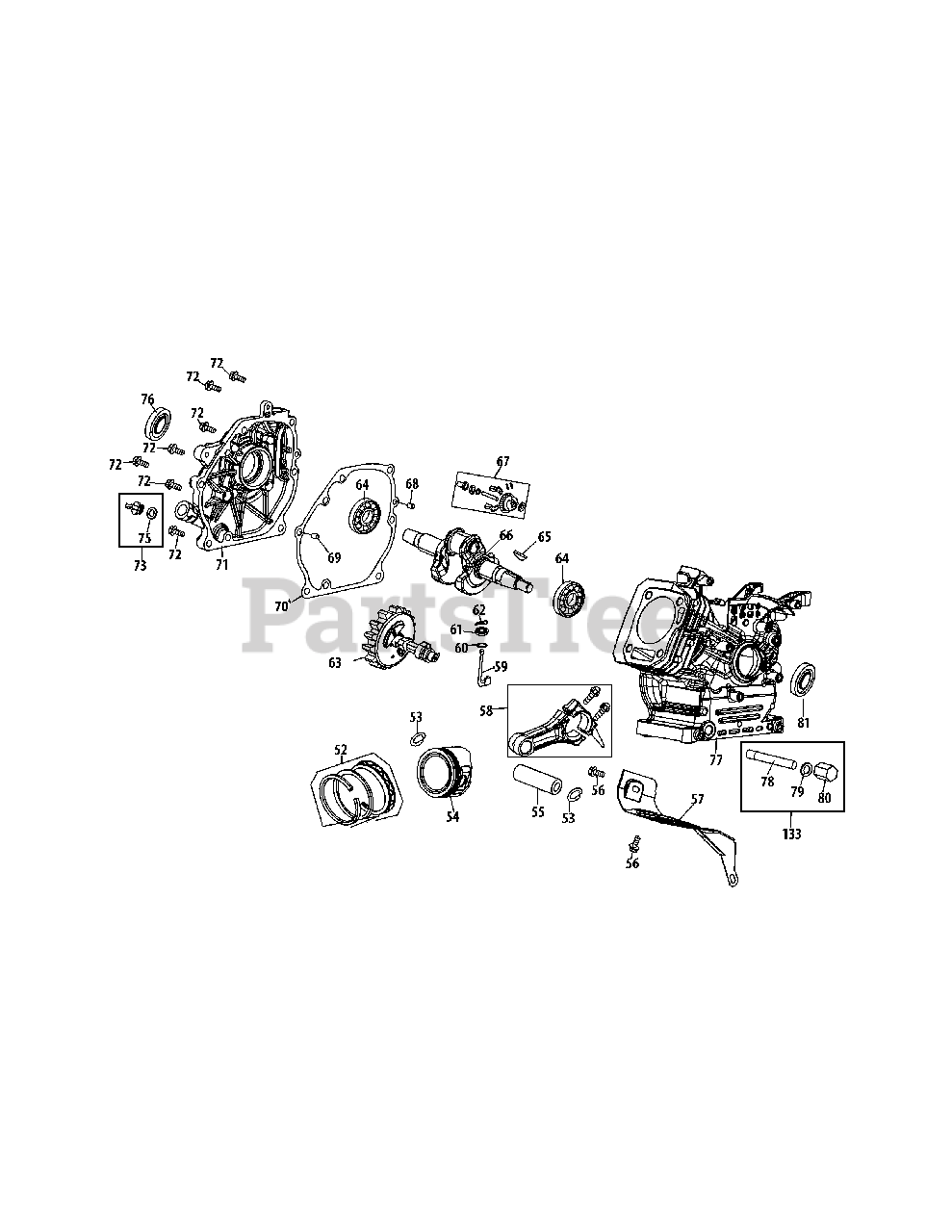

270-SU Crankcase Parts Diagram

  • Title

52

MTD 951-11253

Piston Ring Set
(Superseded to 951-12111)

$6.99

$

In Stock, only 2 left!

0

53

MTD 951-11632

Piston Pin Snap Ring

$4.49

$

In Stock, only 1 left!

0

54

MTD 951-12007

Piston

$35.99

$

Usually ships in 3-6 days

0

55

MTD 951-11633

Piston Pin

$7.99

$

Usually ships in 3-6 days

0

56

MTD 710-04941

Bolt M6×12
(Superseded to 710-05103)

$4.49

$

In Stock, only 2 left!

0

57

MTD 951-11113

Air Shield

$9.49

$

Usually ships in 3-6 days

0

58

MTD 951-11573

Connecting Rod Assembly
(Superseded to 751P11573A)

$10.99

$

In Stock, only 1 left!

0

59

MTD 951-11356

Governor Arm Shaft
(Superseded to 951-14053)

$15.99

$

Usually ships in 3-6 days

0

60

MTD 736-04461

Washer 5.2×1.9

$3.99

$

Usually ships in 3-6 days

0

61

MTD 951-11902

Governor Seal
(Superseded to 951-11902A)

$3.99

$

In Stock, only 2 left!

0

62

MTD 714-04074

Cotter Pin
(Superseded to 714-04078)

$4.49

$

In Stock, only 1 left!

0

63

MTD 951-11575

Camshaft Assy.

$65.99

$

Usually ships in 3-6 days

0

64

MTD 951-11369

Radial Ball Bearing, 6205

$34.99

$

Usually ships in 3-6 days

0

65

MTD 951-10307

Woodruff Key
(Superseded to 751P10307A)

$2.49

$

Usually ships in 3-6 days

0

66

MTD 951-11247

Crankshaft Kit
(Superseded to 951-11247A)

Note: (Incl.64-66,76,81)

$136.99

$

Usually ships in 3-6 days

0

67

MTD 951-11576

Governor Gear/Shaft Assembly
(Superseded to 751P11576A)

$3.49

$

Usually ships in 3-6 days

0

68

MTD 715-04092

Dowel Pin 7×14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

69

MTD 715-04096

Dowel Pin 9×14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

70

MTD 951-11371

Crankcase Cover Gasket
(Superseded to 951-11371A)

$3.99

$

In Stock, only 4 left!

0

71

MTD 951-11246

Crankcase Cover Kit
(Superseded to 951-11248A)

Note: (Incl.64,70-73,76)

$200.99

$

In Stock, only 1 left!

0

72

MTD 710-04932

Bolt M8×32

$4.49

$

Usually ships in 3-6 days

0

73

MTD 951-11377

Oil Fill Plug Assemlby
(Superseded to 951-11283)

$6.99

$

In Stock, only 1 left!

0

75

MTD 951-11577

O-Ring 15.8×2.5

$4.49

$

Usually ships in 3-6 days

0

76

MTD 951-11368

Oil Seal, 25×41.25×6
(Superseded to 751P11368A)

$3.49

$

In Stock, Qty 13

0

77

MTD 951-11060A

Short Block
(Superseded to 951-11060B)

Note: (Incl.4,21,29,30,46,48,49,52-55,58-73,76-81)

$415.99

$

Usually ships in 3-6 days

0

78

MTD 951-11350

Oil Drain Pipe Assy.

$9.49

$

Usually ships in 3-6 days

0

79

MTD 736-04440

Washer 10×16×1.5
(Superseded to 736-04440A)

$6.99

$

In Stock, only 2 left!

0

80

MTD 710-04906

Oil Drain Plug

$6.99

$

In Stock, only 3 left!

0

81

MTD 951-11370

Oil Seal 25×41.25×6
(Superseded to 751P11370A)

$2.99

$

In Stock, only 2 left!

0

133

MTD 951-10641

Oil Drain Assembly

$12.99

$

In Stock, only 2 left!

0

MTD 951-10661B

Gasket Kit - External

Note: (Incl.4,21,29-31,34,79) (not shown)

$32.99

$

In Stock, only 1 left!

0

MTD 951-11249

Crankcase Kit

Note: (Incl.61,64,76,77,81) (not shown)

$223.99

$

In Stock, only 1 left!

0

MTD 951-11059A

Gasket Kit - Complete

Note: (Incl.5,21,29-31,34,46,60,61,70,76,79,81) (not shown)

$52.99

$

In Stock, only 1 left!
