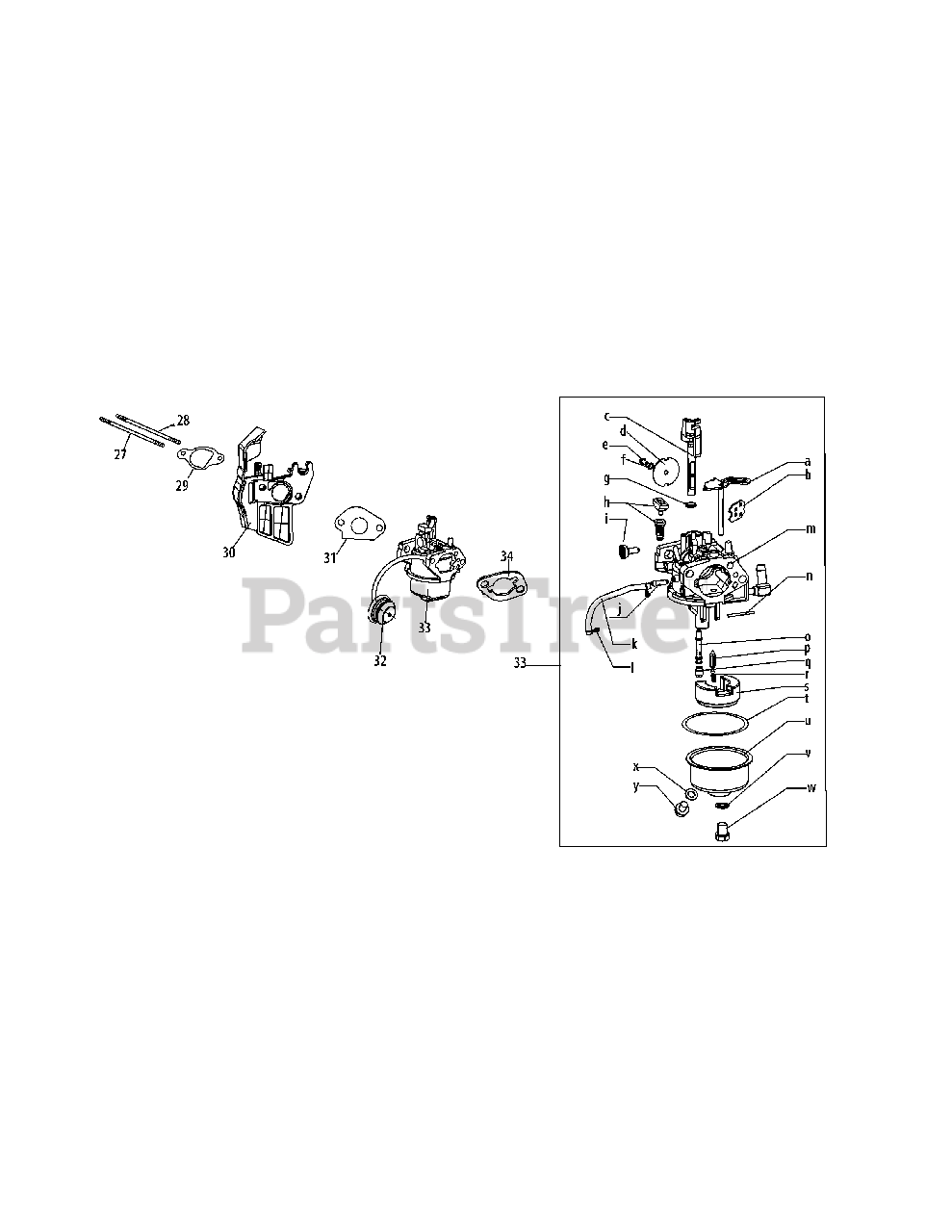

270-SU Carburetor Assembly Parts Diagram

  • Title

27

MTD 710-04939

Stud M6×117

$6.99

$

In Stock, only 2 left!

0

28

MTD 710-04910

Stud M6×105

$6.49

$

In Stock, Qty 6

0

29

MTD 951-11567

Carburetor Insulator Gasket
(Superseded to 751P11567B)

$1.99

$

In Stock, Qty 20+

0

30

MTD 951-11896

Carburetor Insulator Plate
(Superseded to 951-11896A)

$11.99

$

In Stock, Qty 6

0

31

MTD 951-11569A

Carburetor Gasket
(Superseded to 751P12005A)

$5.99

$

In Stock, Qty 20+

0

32

MTD 951-10639A

Primer Assembly

$15.99

$

In Stock, Qty 17

0

33

MTD 951-10638A

Carburetor Assembly
(Superseded to 951-14026A)

$110.99

$

In Stock, Qty 6

0

34

MTD 951-11897

Carburetor Gasket Plate
(Superseded to 751P11897B)

$1.99

$

In Stock, Qty 20+

0

a

N/A

Choke Shaft

$

$

Not available

b

N/A

Choke Plate

$

$

Not available

c

N/A

Throttle Shaft

$

$

Not available

d

N/A

Throttle Plate

$

$

Not available

e

N/A

Screw M3×5

$

$

Not available

f

N/A

Lock Washer

$

$

Not available

g

N/A

Gasket, Throttle Plate

$

$

Not available

h

N/A

Idle Jet Assembly

$

$

Not available

i

N/A

Idle Speed Adjusting Screw

$

$

Not available

j

N/A

Mixture Screw

$

$

Not available

k

MTD 951-11699

Primer Hose
(Superseded to 951-11699A)

$6.99

$

In Stock, only 1 left!

0

l

MTD 951-11906

Hose Clamp

$3.99

$

In Stock, Qty 6

0

m

N/A

Carburetor Body

$

$

Not available

n

N/A

Float Pin

$

$

Not available

o

N/A

Emulsion Tube

$

$

Not available

p

N/A

Needle Valve

$

$

Not available

q

N/A

Main Jet

$

$

Not available

r

N/A

Needle Valve Spring

$

$

Not available

s

N/A

Float

$

$

Not available

t

MTD 951-11589

Fuel Bowl O-Ring
(Superseded to 951-11589A)

$6.99

$

In Stock, Qty 20+

0

u

N/A

Fuel Bowl

$

$

Not available

v

MTD 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

$5.99

$

Usually ships in 3-6 days

0

w

MTD 710-04945

Fuel Bowl Mounting Bolt

$4.49

$

In Stock, only 4 left!

0

x

MTD 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 11

0

y

MTD 710-04938

Fuel Drain Plug

$4.49

$

In Stock, only 1 left!

0

MTD 951-11021

Carburetor Kit - Major
(Superseded to 951-12788A)

Note: (Incl.g,n,o,p,q,r,s,t,v,x) (not shown)

$54.99

$

Usually ships in 3-6 days

0
