270-QUA - MTD 208cc Engine 270-QUA General Assembly Parts Diagram

208cc Engine

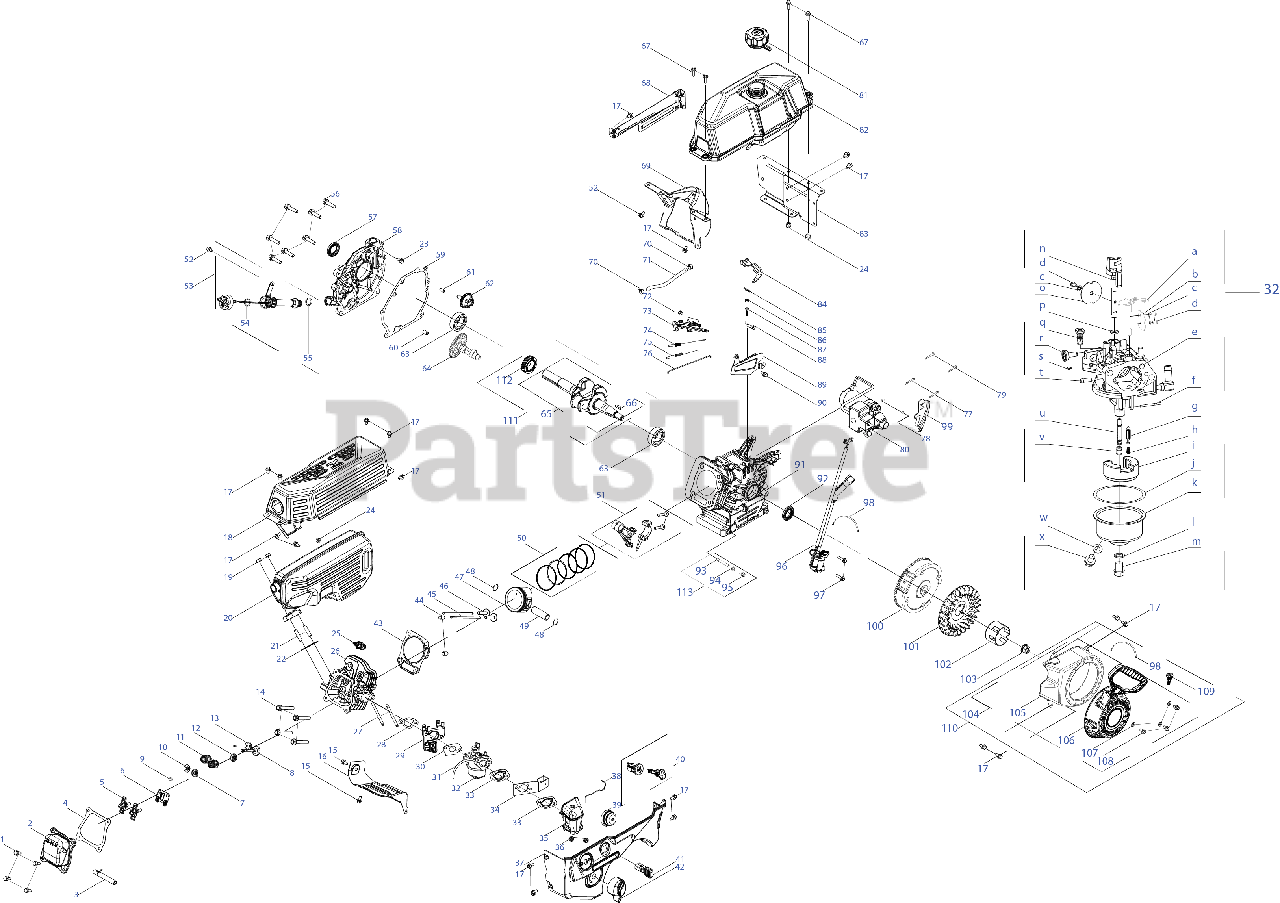

270-QUA General Assembly Parts Diagram

  • Title

1

MTD 710-04968

BOLT M6 x 16

$6.99

$

In Stock, only 3 left!

0

2

MTD 951-11054A

VALVE COVER
(Superseded to 951-11054B)

$15.99

$

Usually ships in 3-6 days

0

3

MTD 951-15045

BREATHER HOSE

$6.49

$

Usually ships in 3-6 days

0

4

MTD 951-11565

VALVE COVER GASKET
(Superseded to 751P11565B)

$10.99

$

In Stock, Qty 10

0

5

MTD 951-11892

ROCKER ARM ASSEMBLY

$40.99

$

Usually ships in 3-6 days

0

6

MTD 951-15139

ROCKER ARM BASE

$6.99

$

Usually ships in 3-6 days

0

7

MTD 951-12000

INTAKE VALVE SPRING RETAINER

$4.49

$

In Stock, only 1 left!

0

8

MTD 951-14099

INTAKE VALVE
(Superseded to 751P14099A)

$4.49

$

Usually ships in 3-6 days

0

9

MTD 951-12002

EXHAUST VALVE ADJUSTER
(Superseded to 751P12002A)

$2.99

$

In Stock, Qty 12

0

10

MTD 951-12003

EXHAUST VALVE SPRING RETAINER

$4.49

$

In Stock, only 1 left!

0

11

MTD 951-12004

VALVE SPRING
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 5

0

12

MTD 951-11894

INTAKE VALVE SEAL

$10.99

$

Usually ships in 3-6 days

0

13

MTD 951-14100

EXHAUST VALVE
(Superseded to 751P14100A)

$3.99

$

In Stock, only 1 left!

0

14

MTD 710-04933

BOLT M8-1.25 x 55 GR10.9

$3.99

$

In Stock, Qty 10

0

15

MTD 710-04915

BOLT M6-1 x 12 GR8.8

$4.49

$

In Stock, Qty 19

0

16

MTD 951-11113

AIR SHIELD

$9.49

$

Usually ships in 3-6 days

0

17

MTD 910-06277

BOLT-M6 x 12

$4.49

$

In Stock, Qty 9

0

18

MTD 908-05112A

MUFFLER GUARD

$84.99

$

Usually ships in 3-6 days

0

19

MTD 712-04214

NUT

$4.49

$

In Stock, Qty 5

0

20

MTD 951-05263

MUFFLER

$173.99

$

Usually ships in 3-6 days

0

21

MTD 710-05001

STUD M8-1.25 x 36

$3.99

$

Usually ships in 3-6 days

0

22

MTD 951-11289

MUFFLER GASKET
(Superseded to 751P11289A)

$2.49

$

In Stock, Qty 20+

0

23

MTD 710-05192

SCREW M6-1 x 20 CL5.8

$5.99

$

Usually ships in 3-6 days

0

24

MTD 712-05015

HEX NUT

$6.99

$

In Stock, Qty 20+

0

25

MTD 951-10292

SPARK PLUG
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

26

MTD 951-14928

CYLINDER HEAD
(Superseded to 751P14928A)

$45.99

$

In Stock, Qty 5

0

27

MTD 710-05093

STUD M6 x 92

$4.49

$

In Stock, Qty 7

0

28

MTD 951-11567

CARBURETOR INSULATOR GASKET
(Superseded to 751P11567B)

$1.99

$

In Stock, Qty 20+

0

29

MTD 951-11568

CARBURETOR INSULATOR
(Superseded to 751P11568A)

$3.49

$

In Stock, Qty 18

0

30

MTD 751-12005

CARBURETOR GASKET
(Superseded to 951-11569A)

$5.99

$

In Stock, Qty 20+

0

31

MTD 951-15535

PRIMER HOSE

$7.99

$

Usually ships in 3-6 days

0

32

MTD 951-05251

CARBURETOR ASSEMBLY

$115.99

$

In Stock, only 2 left!

0

33

MTD 951-11897

CARBURETOR GASKET PLATE
(Superseded to 751P11897B)

$1.99

$

In Stock, Qty 20+

0

34

MTD 951-14869

CHOKE CONTROL

$7.49

$

In Stock, only 1 left!

0

35

MTD 951-14870

HEATER BOX

$16.99

$

In Stock, only 1 left!

0

36

MTD 712-05015

HEX NUT

$6.99

$

In Stock, Qty 20+

0

37

MTD 951-14952

CONTROL PANEL

$28.99

$

Usually ships in 3-6 days

0

38

MTD 951-10640

PUSH ROD

$10.99

$

In Stock, Qty 5

0

39

MTD 951-10639A

PRIMER

$15.99

$

In Stock, Qty 20+

0

40

MTD 951-15022

ENGINE KEY SWITCH ASSEMBLY
(Superseded to 951-15022A)

$10.99

$

In Stock, only 2 left!

0

41

MTD 951-11224

THROTTLE CONTROL KNOB

$7.99

$

In Stock, Qty 12

0

42

MTD 951-14838

CHOKE LEVER

$7.49

$

In Stock, Qty 8

0

43

MTD 951-11572

CYLINDER HEAD GASKET

$11.99

$

In Stock, Qty 17

0

44

MTD 715-04108

DOWEL PIN

$4.49

$

In Stock, only 1 left!

0

45

MTD 951-14105

PUSH ROD
(Superseded to 751P14105A)

$2.99

$

Usually ships in 3-6 days

0

46

MTD 951-11899

TAPPET

$8.49

$

In Stock, only 4 left!

0

47

MTD 951-12007

PISTON

$35.99

$

Usually ships in 3-6 days

0

48

MTD 951-11632

PISTON PIN SNAP RING

$4.49

$

In Stock, only 2 left!

0

49

MTD 951-11633

PISTON PIN

$7.99

$

Usually ships in 3-6 days

0

50

MTD 951-12111

PISTON RING SET
(Superseded to 751P12111A)

$6.99

$

In Stock, Qty 10

0

51

MTD 951-11573

CONNECTING ROD ASSEMBLY
(Superseded to 751P11573A)

$10.99

$

In Stock, Qty 9

0

52

MTD 910-06278

BOLT-M6 x 16

$4.49

$

Usually ships in 3-6 days

0

53

MTD 931-05255

DIPSTICK ASSEMBLY

$22.99

$

Usually ships in 3-6 days

0

54

MTD 921-04663

DIPSTICK O-RING
(Superseded to 921-04663A)

$5.99

$

Usually ships in 3-6 days

0

55

MTD 951-11577

O-RING 15.8 x 2.5

$4.49

$

Usually ships in 3-6 days

0

56

MTD 710-04932

BOLT M8-1.25 x 32 GR5.8

$4.49

$

Usually ships in 3-6 days

0

57

MTD 951-11368

OIL SEAL
(Superseded to 751P11368A)

$3.49

$

In Stock, Qty 9

0

58

MTD 951-14875

CRANKCASE COVER

$84.99

$

Usually ships in 3-6 days

0

59

MTD 951-11371A

CRANKCASE COVER GASKET
(Superseded to 751P11371B)

$3.99

$

In Stock, Qty 20+

0

60

MTD 715-04096

DOWEL PIN
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

61

MTD 715-04092

DOWEL PIN
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

62

MTD 951-11576

GOVERNOR GEAR/SHAFT ASSEMBLY
(Superseded to 751P11576A)

$3.49

$

In Stock, only 1 left!

0

63

MTD 951-11369

BEARING

$34.99

$

Usually ships in 3-6 days

0

64

MTD 951-15128

CAMSHAFT

$48.99

$

Usually ships in 3-6 days

0

65

MTD 951-15129

CRANKSHAFT

$122.99

$

Usually ships in 3-6 days

0

66

MTD 951-10307

FLYWHEEL KEY
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 9

0

67

MTD 951-14885

BOLT-M6 x 22

$4.49

$

Usually ships in 3-6 days

0

68

MTD 951-14997A

FUEL TANK INSULATOR

$11.99

$

Usually ships in 3-6 days

0

69

MTD 951-14872

FRONT FUEL TANK BRACKET

$34.99

$

Usually ships in 3-6 days

0

70

MTD 951-11700

HOSE CLAMP
(Superseded to 951-11700A)

$4.49

$

In Stock, Qty 12

0

71

MTD 951-15536

FUEL LINE

$9.99

$

Usually ships in 3-6 days

0

72

MTD 710-05103

BOLT M6-1 x 12 GR8.8

$4.49

$

In Stock, only 2 left!

0

73

MTD 951-14881

GOVERNOR GEAR BRACKET

$23.99

$

Usually ships in 3-6 days

0

74

MTD 951-14882

GOVERNOR SPRING
(Superseded to 751P19229)

$7.99

$

In Stock, Qty 11

0

75

MTD 951-10664

THROTTLE RETURN SPRING
(Superseded to 751P10664A)

$2.49

$

In Stock, Qty 20+

0

76

MTD 951-10665

GOVERNOR ROD
(Superseded to 751P10665A)

$1.99

$

In Stock, Qty 20+

0

77

MTD 710-05182

BOLT M6-1 x 32 GR8.8

$4.49

$

In Stock, only 1 left!

0

78

MTD 715-04088

DOWEL PIN
(Superseded to 715-04088A)

$3.49

$

Usually ships in 3-6 days

0

79

MTD 910-06279

BOLT-M4 x 55

$4.49

$

Usually ships in 3-6 days

0

80

MTD 951-10645B

ELECTRIC STARTER

$331.99

$

Usually ships in 3-6 days

0

81

MTD 951-14884

FUEL CAP

$26.99

$

Usually ships in 3-6 days

0

82

MTD 951-14883

FUEL TANK

$96.99

$

In Stock, only 1 left!

0

83

MTD 951-14880

FUEL TANK INSULATOR

$15.99

$

Usually ships in 3-6 days

0

84

MTD 951-14089

GOVERNOR LEVER

$7.99

$

Usually ships in 3-6 days

0

85

MTD 714-04078

COTTER PIN

$4.49

$

In Stock, only 1 left!

0

86

MTD 951-11902

GOVERNOR SEAL
(Superseded to 951-11902A)

$3.99

$

In Stock, only 2 left!

0

87

MTD 736-04461

O-RING

$3.99

$

Usually ships in 3-6 days

0

88

MTD 951-14053

GOVERNOR SHAFT

$15.99

$

Usually ships in 3-6 days

0

89

MTD 951-11110

AIR FLOW SHIELD

$4.49

$

Usually ships in 3-6 days

0

90

MTD 710-04914

BOLT M6-1 x 10 GR8.8

$4.49

$

In Stock, only 3 left!

0

91

MTD 951-14149

CRANKCASE

$120.99

$

Usually ships in 3-6 days

0

92

MTD 951-11370

OIL SEAL
(Superseded to 751P11370A)

$2.99

$

In Stock, Qty 12

0

93

MTD 951-11350

OIL DRAIN PIPE

$9.49

$

Usually ships in 3-6 days

0

94

MTD 736-04440

WASHER
(Superseded to 736-04440A)

$6.99

$

In Stock, only 1 left!

0

95

MTD 710-04906

OIL DRAIN PLUG

$6.99

$

In Stock, Qty 11

0

96

MTD 951-15275

IGNITION MODULE

$108.99

$

Usually ships in 3-6 days

0

97

MTD 710-04919

BOLT M6-1 x 25 GR8.8

$4.49

$

Usually ships in 3-6 days

0

98

MTD 725-06031

CABLE TIE - 3 x 150

$2.49

$

Usually ships in 3-6 days

0

99

MTD 751-16487

LOWER HOUSING
(Superseded to 751P16487)

$2.99

$

Usually ships in 3-6 days

0

100

MTD 951-12416

FLYWHEEL
(Superseded to 751P12416A)

$59.99

$

Usually ships in 3-6 days

0

101

MTD 951-15025

COOLING FAN

$24.99

$

Usually ships in 3-6 days

0

102

MTD 951-14887

STARTER CUP

$14.99

$

Usually ships in 3-6 days

0

103

MTD 712-04287

FLYWHEEL NUT

$6.99

$

In Stock, only 1 left!

0

104

MTD 951-05424

RECOIL HOUSING ASSEMBLY

$64.99

$

Usually ships in 3-6 days

0

105

MTD 951-15537

BLOWER HOUSING

$39.99

$

Usually ships in 3-6 days

0

106

MTD 951-15538

RECOIL STARTER ASSEMBLY

$70.99

$

Usually ships in 3-6 days

0

107

MTD 736-04455

RECOIL FLAT WASHER
(Superseded to 736-04455B)

$6.99

$

Usually ships in 3-6 days

0

108

MTD 710-06280

HEX FLANGE BOLT M6-1 x 10 GR8

$3.99

$

Usually ships in 3-6 days

0

109

MTD 951-10630

IGNITION KEY

$6.99

$

In Stock, only 3 left!

0

110

RECOIL STARTER

Note: Components Only

$

$

Not available

111

CRANKSHAFT

Note: Components Only

$

$

Not available

112

MTD 951-15130

DRIVE TIMING GEAR

$14.99

$

Usually ships in 3-6 days

0

113

Oil Drain Pipe

Note: Components Only

$

$

Not available

a

Choke Plate

$

$

Not available

b

Washer

$

$

Not available

c

MTD 736-04638

CHOKE CONTROL LEVER WASHER
(Superseded to 736-04638A)

$3.49

$

In Stock, only 1 left!

0

d

Carburetor Body

$

$

Not available

e

Float Pin

$

$

Not available

f

MTD 711P06043

HINGE FLOAT PIN
(Superseded to 711-06043)

$0.99

$

Usually ships in 3-6 days

0

g

MTD 793P00165

NEEDLE VALVE
(Superseded to 793P00165A)

$4.99

$

In Stock, Qty 9

0

h

MTD 732P05251

NEEDLE VALVE SPRING
(Superseded to 732P05251A)

$1.99

$

Usually ships in 3-6 days

0

i

O-Ring, Float Bowl

$

$

Not available

j

MTD 951-11589

FUEL BOWL O-RING
(Superseded to 951-11589A)

$6.99

$

In Stock, Qty 20+

0

k

MTD 908-05001

FLOAT BOWL

$8.49

$

In Stock, only 1 left!

0

l

MTD 951-11348

FUEL BOWL GASKET
(Superseded to 951-11348A)

$5.99

$

In Stock, Qty 11

0

m

MTD 710-04945

BOLT M8-1 x 10

$4.49

$

In Stock, Qty 12

0

n

Throttle Plate

$

$

Not available

o

Gasket

$

$

Not available

p

Idle Jet

$

$

Not available

q

Idle Adjusting Screw

$

$

Not available

r

Mixture Screw

$

$

Not available

s

Primer Line

$

$

Not available

t

MTD 937-05005

PRIMER LINE

$5.99

$

Usually ships in 3-6 days

0

u

Main Jet

$

$

Not available

v

Gasket, Drain Bolt

$

$

Not available

w

MTD 951-11349

FUEL DRAIN PLUG GASKET
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 20+

0

x

MTD 710-04938

FUEL DRAIN PLUG

$4.49

$

In Stock, Qty 8

0

MTD 952Z270-QUA

COMPLETE ENGINE

$628.99

$

Usually ships in 3-6 days

0
