270-QU - Troy-Bilt Engine (2014) 270-QU Muffler Parts Diagram

Engine

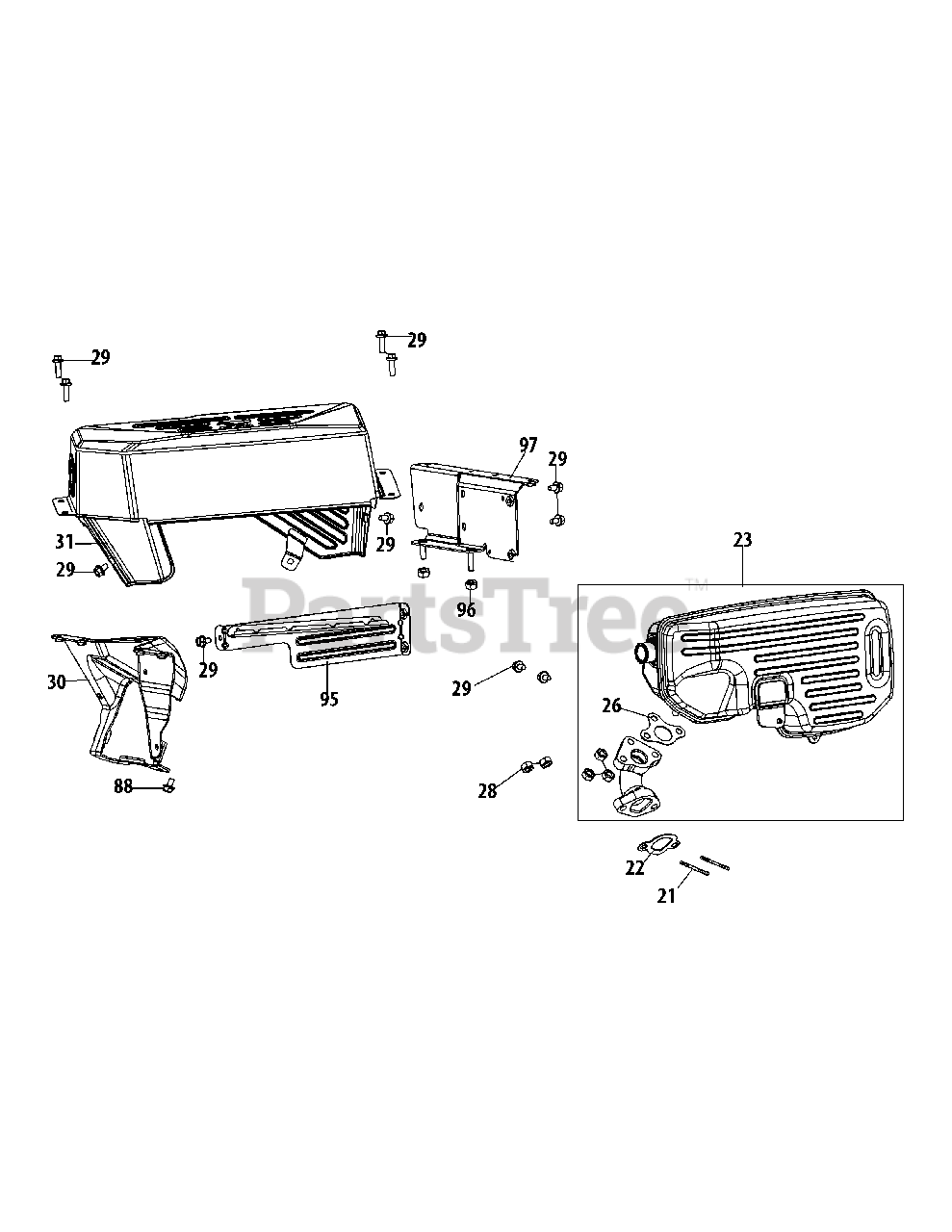

270-QU Muffler Parts Diagram

  • Title
21

Troy-Bilt 710-02001

Stud M8×36
(Superseded to 910-02001)

$5.49

$

Usually ships in 3-6 days

0

22

Troy-Bilt 951-11289

Muffler Gasket
(Superseded to 751P11289A)

$2.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 651-05242

Muffler Assembly
(Superseded to 951-05242)

$89.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 721-04736

Gasket, Muffler
(Superseded to 921-04736)

$5.99

$

Usually ships in 3-6 days

0

$4.49

$

In Stock, Qty 5

0

29

Troy-Bilt 710-06277

Bolt M6×12
(Superseded to 910-06277)

$4.49

$

In Stock, Qty 9

0

30

Troy-Bilt 751-14872

Front Bracket, Fuel Tank
(Superseded to 951-14872)

$34.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 708-05112

Muffler Guard
(Superseded to 908-05112A)

$84.99

$

Usually ships in 3-6 days

0

88

Troy-Bilt 710-06278

Bolt M6×16
(Superseded to 910-06278)

$4.49

$

Usually ships in 3-6 days

0

95

Troy-Bilt 751-14880

Fuel Tank Insulator
(Superseded to 951-14880)

$15.99

$

Usually ships in 3-6 days

0

96

Troy-Bilt 712-05015

Flange Nut M6

$6.99

$

In Stock, Qty 20+

0

97

Troy-Bilt 651-05016

Fuel Tank Bracket
(Superseded to 951-05016)

$

$

Not available
