270-QU - Troy-Bilt Engine (2014) 270-QU Carburetor Parts Diagram

Engine

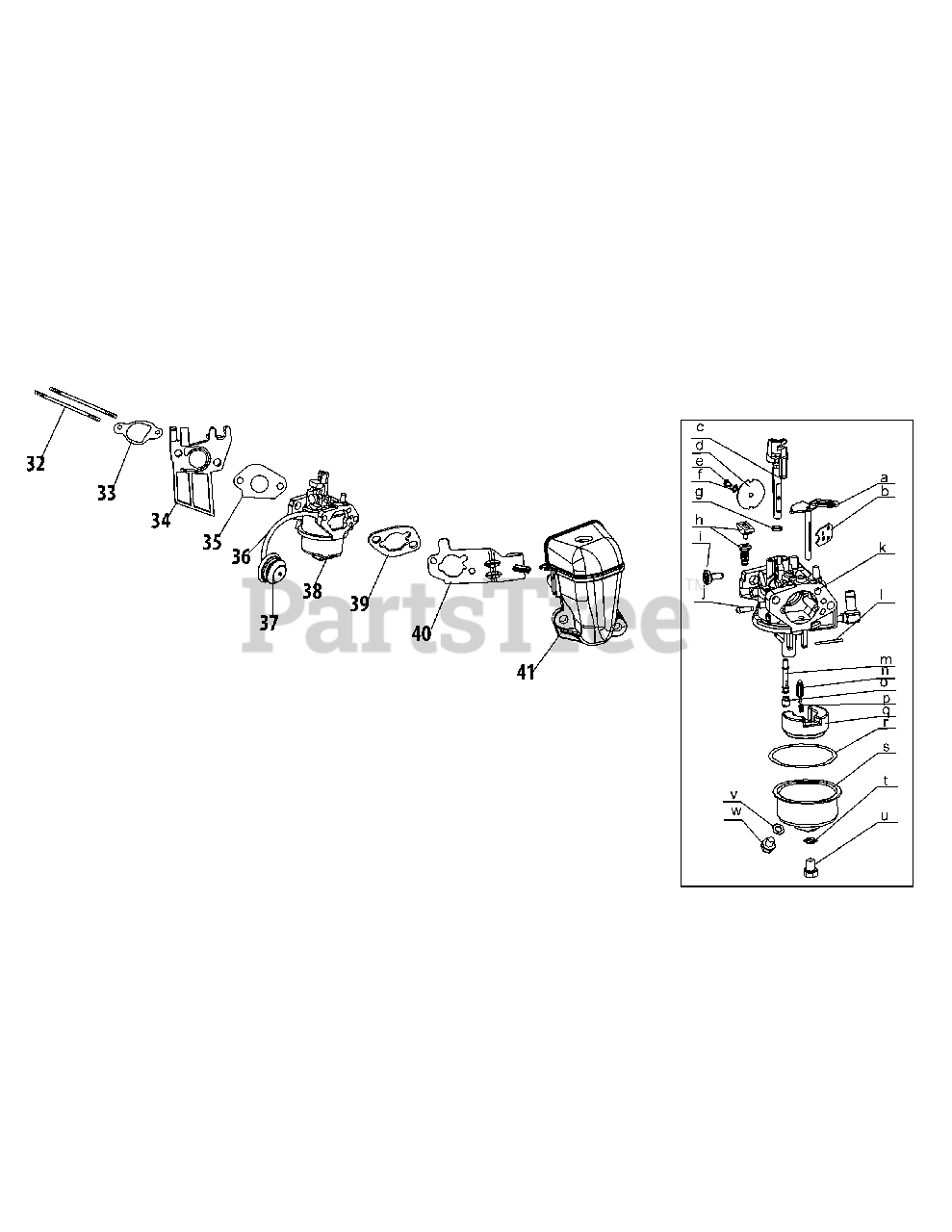

270-QU Carburetor Parts Diagram

  • Title
32

Troy-Bilt 951-10304

Stud M6×92
(Superseded to 710-05093)

$4.49

$

In Stock, Qty 12

0

33

Troy-Bilt 951-11567

Gasket, Carburetor Insulator
(Superseded to 751P11567B)

$1.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 951-11568

Insulator, Carburetor
(Superseded to 751P11568A)

$3.49

$

In Stock, Qty 13

0

35

Troy-Bilt 951-11569A

Carburetor Gasket
(Superseded to 751P12005A)

$5.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 935-05038

Fuel Hose 3.2×6.5×150

$12.99

$

In Stock, only 3 left!

0

$15.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 951-05251

Carburetor

$115.99

$

In Stock, only 3 left!

0

39

Troy-Bilt 951-11897

Air Filter Gasket
(Superseded to 751P11897B)

$1.99

$

In Stock, Qty 20+

0

40

Troy-Bilt 951-14869

Choke Controler Assy

$7.49

$

Usually ships in 3-6 days

0

41

Troy-Bilt 951-14870

Heater Box

$16.99

$

In Stock, only 1 left!

0

a

Choke Shaft

$

$

Not available

b

Choke Plate

$

$

Not available

c

Throttle Shaft

$

$

Not available

d

Throttle Plate

$

$

Not available

e

Screw M3×6

$

$

Not available

f

Troy-Bilt 736-04638

Lock Washer
(Superseded to 736-04638A)

$3.49

$

In Stock, only 1 left!

0

g

Gasket, Throttle Plate

$

$

Not available

h

Idle Jet Assembly

$

$

Not available

i

Idle Speed Adjusting Screw

$

$

Not available

j

Mixture Screw

$

$

Not available

k

Carburetor Body

$

$

Not available

l

Float Pin

$

$

Not available

m

Emulsion Tube (Bp19C(B)-0006B)

$

$

Not available

n

Needle Valve

$

$

Not available

o

Main Jet

$

$

Not available

p

Needle Valve Spring

$

$

Not available

q

Float

$

$

Not available

r

Troy-Bilt 951-11589

Fuel Bowl Gasket
(Superseded to 951-11589A)

$6.99

$

In Stock, Qty 20+

0

s

Fuel Bowl

$

$

Not available

t

Troy-Bilt 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

$5.99

$

In Stock, Qty 20+

0

u

Troy-Bilt 710-04945

Fuel Bowl Mounting Bolt

$4.49

$

In Stock, Qty 13

0

v

Troy-Bilt 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 20+

0

w

Troy-Bilt 710-04938

Fuel Drain Plug

$4.49

$

In Stock, Qty 10

0
