270-QU - MTD Engine (2015) 270-QU Flywheel & Blower Housing Parts Diagram

Engine

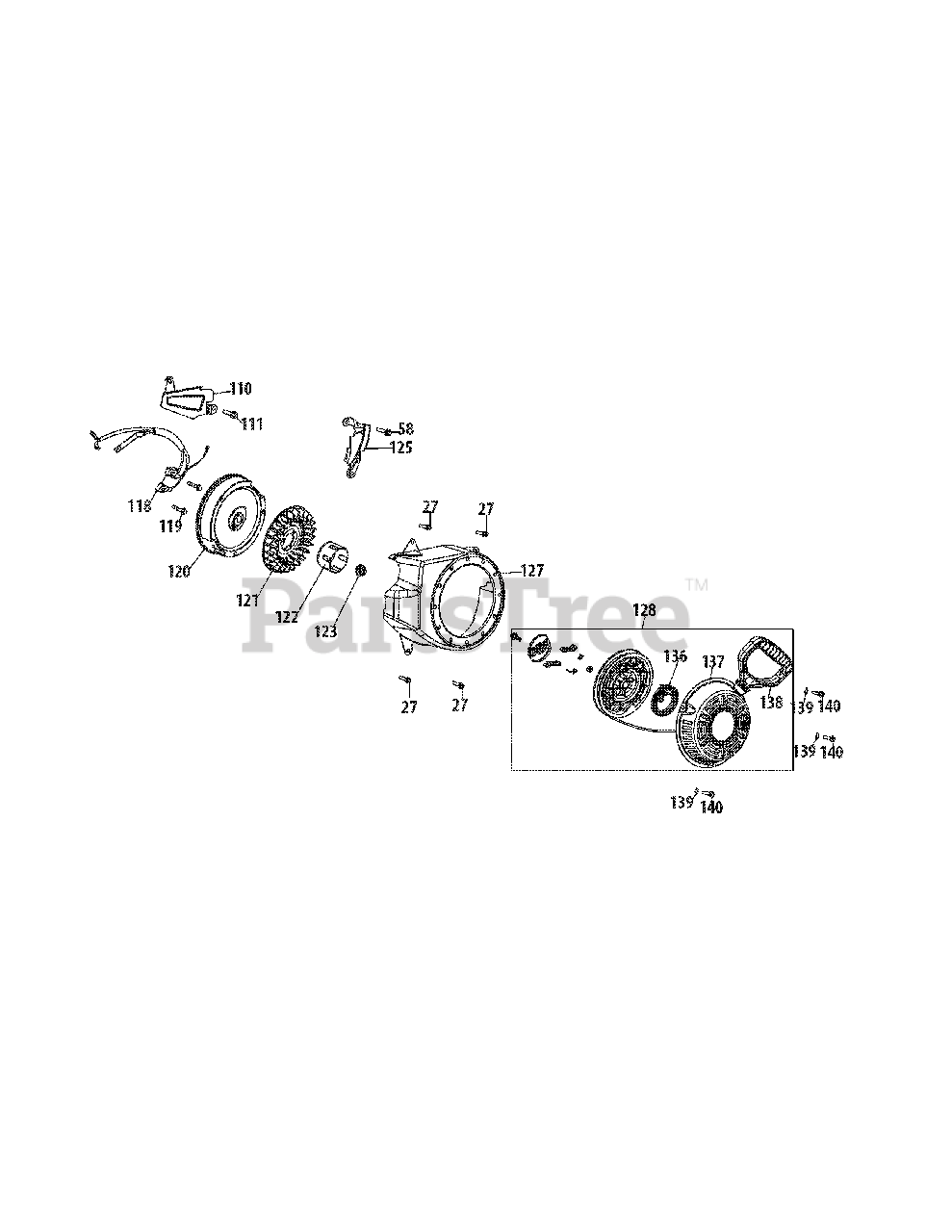

270-QU Flywheel & Blower Housing Parts Diagram

  • Title

27

MTD 910-06277

BOLT M6×12

$4.49

$

In Stock, Qty 9

0

58

MTD 710-04915

BOLT M6×12

$4.49

$

In Stock, Qty 20+

0

110

MTD 951-11110

CHOKE

$4.49

$

Usually ships in 3-6 days

0

111

MTD 710-04914

BOLT M6×10

$4.49

$

In Stock, only 3 left!

0

118

MTD 751-15275

IGNITION MODULE
(Superseded to 951-15275)

$108.99

$

Usually ships in 3-6 days

0

119

MTD 710-04919

BOLT M6×25

$4.49

$

Usually ships in 3-6 days

0

120

MTD 951-12416

FLYWHEEL
(Superseded to 751P12416A)

$59.99

$

Usually ships in 3-6 days

0

121

MTD 951-15025

COOLING FAN

$24.99

$

Usually ships in 3-6 days

0

122

MTD 951-14887

PULLEY, STARTER

$14.99

$

Usually ships in 3-6 days

0

123

MTD 712-04287

FLANGE NUT M14×1.5

$6.99

$

In Stock, only 1 left!

0

125

MTD 951-11109

LOWER SHIELD

$7.49

$

Usually ships in 3-6 days

0

127

MTD 951-12644

BLOWER HOUSING

$60.99

$

Usually ships in 3-6 days

0

128

MTD 951-14545

RECOIL STARTER

$83.99

$

In Stock, only 1 left!

0

136

MTD 932-05114

RECOIL SPRING

$12.99

$

Usually ships in 3-6 days

0

137

MTD 908-05015

BLOWER HOUSING

$68.99

$

In Stock, only 1 left!

0

138

MTD 731-05696

STARTER HANDLE

$16.99

$

In Stock, only 3 left!

0

139

MTD 736-04455

WASHER F6
(Superseded to 736-04455B)

$6.99

$

Usually ships in 3-6 days

0

140

MTD 710-04974

BOLT M6×10

$6.99

$

In Stock, only 3 left!

0
