270-QU - MTD Engine (2015) 270-QU Crankcase Parts Diagram

Engine

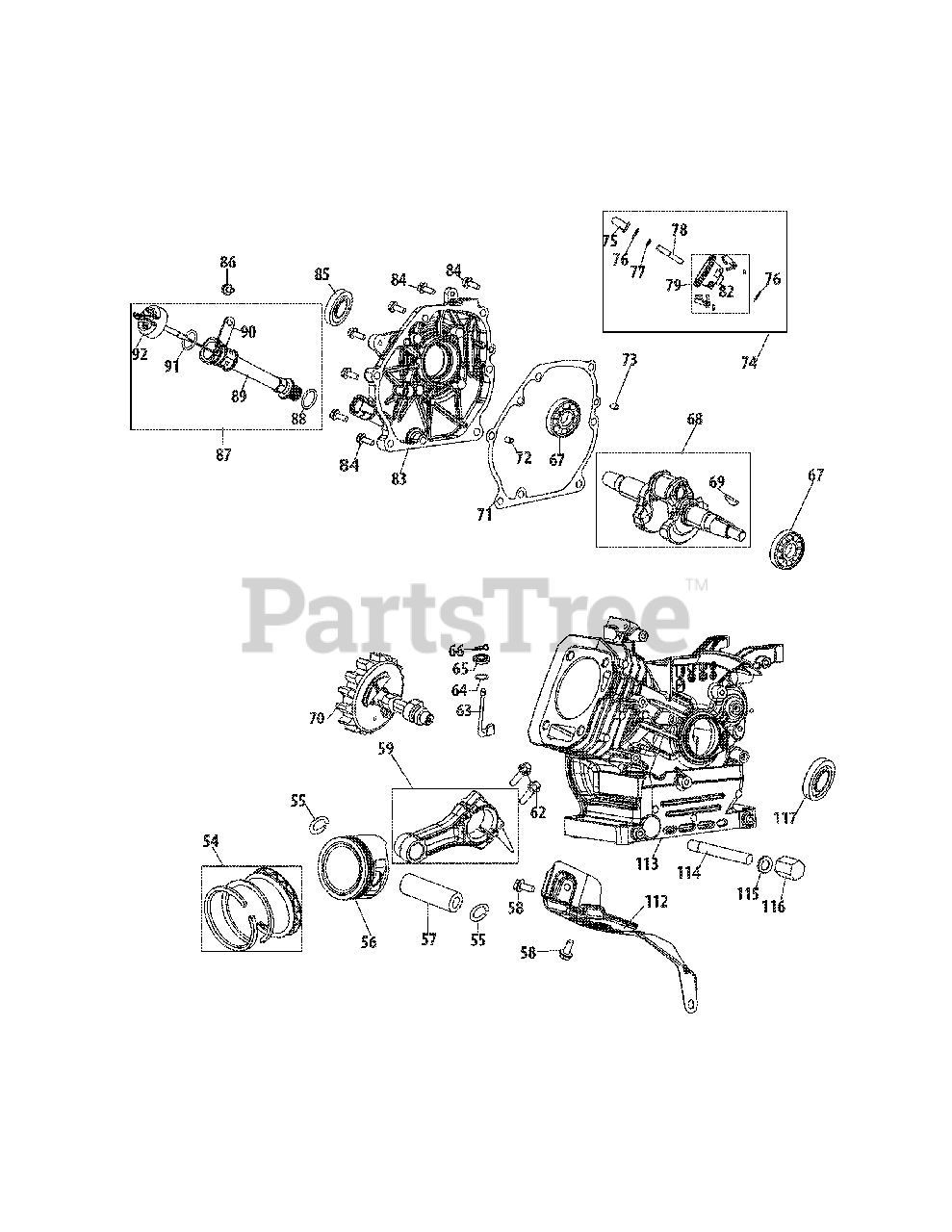

270-QU Crankcase Parts Diagram

  • Title

54

MTD 951-12111

PISTON RING SET
(Superseded to 751P12111A)

$6.99

$

In Stock, Qty 12

0

55

MTD 951-11632

CIRCLIP

$4.49

$

Usually ships in 3-6 days

0

56

MTD 951-12007

PISTON

$35.99

$

Usually ships in 3-6 days

0

57

MTD 951-11633

WRIST PIN

$7.99

$

Usually ships in 3-6 days

0

58

MTD 710-04915

BOLT M6×12

$4.49

$

In Stock, Qty 20+

0

59

MTD 951-11573

CONNECTING ROD
(Superseded to 751P11573A)

$10.99

$

In Stock, Qty 9

0

62

MTD 710-05116

CONNECTING ROD BOLT

$4.99

$

Usually ships in 3-6 days

0

63

MTD 951-14053

SHAFT,GOVERNOR ARM

$15.99

$

Usually ships in 3-6 days

0

64

MTD 736-04461

O-RING 5.2×1.9

$3.99

$

Usually ships in 3-6 days

0

65

MTD 951-11902

OIL SEAL 6×11×4
(Superseded to 951-11902A)

$3.99

$

In Stock, only 2 left!

0

66

MTD 714-04078

COTTER PIN

$4.49

$

In Stock, only 1 left!

0

67

MTD 951-11369

BEARING 6205

$34.99

$

Usually ships in 3-6 days

0

68

MTD 951-14147

CRANKSHAFT

$108.99

$

Usually ships in 3-6 days

0

69

MTD 951-10307

WOODRUFF KEY
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 10

0

70

MTD 951-11575A

CAMSHAFT

$65.99

$

Usually ships in 3-6 days

0

71

MTD 951-11371

GASKET, CRANKCASE COVER
(Superseded to 951-11371A)

$3.99

$

In Stock, Qty 20+

0

72

MTD 715-04096

DOWEL PIN 9×14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

73

MTD 715-04092

DOWEL PIN 7×14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

74

MTD 951-11576

GOVERNOR GEAR
(Superseded to 751P11576A)

$3.49

$

Usually ships in 3-6 days

0

75

MTD 931-09595

GOVERNOR CUP

$5.99

$

Usually ships in 3-6 days

0

76

MTD 936-05038

WASHER 6.2×0.6×15

$4.99

$

In Stock, only 2 left!

0

77

MTD 916-05003

RETAINING RINGS, GOVERNOR SHAFT

$5.99

$

In Stock, only 1 left!

0

78

MTD 911-06137

GOVERNOR SHAFT

$6.99

$

Usually ships in 3-6 days

0

79

MTD 917-05007

GOVERNOR B0DY

$13.99

$

Usually ships in 3-6 days

0

82

MTD 917-05152

GOVERNOR GEAR

$11.99

$

Usually ships in 3-6 days

0

83

MTD 951-14875

CRANKCASE COVER

$84.99

$

Usually ships in 3-6 days

0

84

MTD 710-04932

BOLT M8×32

$4.49

$

Usually ships in 3-6 days

0

85

MTD 951-11368

OIL SEAL 25×41.25×6
(Superseded to 751P11368A)

$3.49

$

In Stock, Qty 12

0

86

MTD 910-06278

BOLT M6×16

$4.49

$

Usually ships in 3-6 days

0

87

MTD 931-05255

DIPSTICK

$22.99

$

Usually ships in 3-6 days

0

88

MTD 951-11381

O-RING 15.5×1.5

$5.49

$

In Stock, Qty 10

0

89

MTD 951-14876

DIPSTICK SEAT

$9.49

$

Usually ships in 3-6 days

0

90

MTD 951-14878

EMBRACEHOOP

$5.99

$

Usually ships in 3-6 days

0

91

MTD 921-04663

O-RING 21×2.77
(Superseded to 921-04663A)

$5.99

$

Usually ships in 3-6 days

0

92

MTD 951-14879

DIPSTICK

$9.49

$

Usually ships in 3-6 days

0

112

MTD 951-11113

SHROUD

$9.49

$

Usually ships in 3-6 days

0

113

MTD 951-14149

CRANKCASE

$120.99

$

Usually ships in 3-6 days

0

114

MTD 951-11350

OIL DRAIN PIPE

$9.49

$

Usually ships in 3-6 days

0

115

MTD 736-04440

WASHER 10×1.5×16
(Superseded to 736-04440A)

$6.99

$

In Stock, only 2 left!

0

116

MTD 710-04906

WASHER,DRAIN BOLT(M10×1.25×15)

$6.99

$

In Stock, Qty 13

0

117

MTD 951-11370

OIL SEAL 25×41.25×6
(Superseded to 751P11370A)

$2.99

$

In Stock, Qty 12

0
