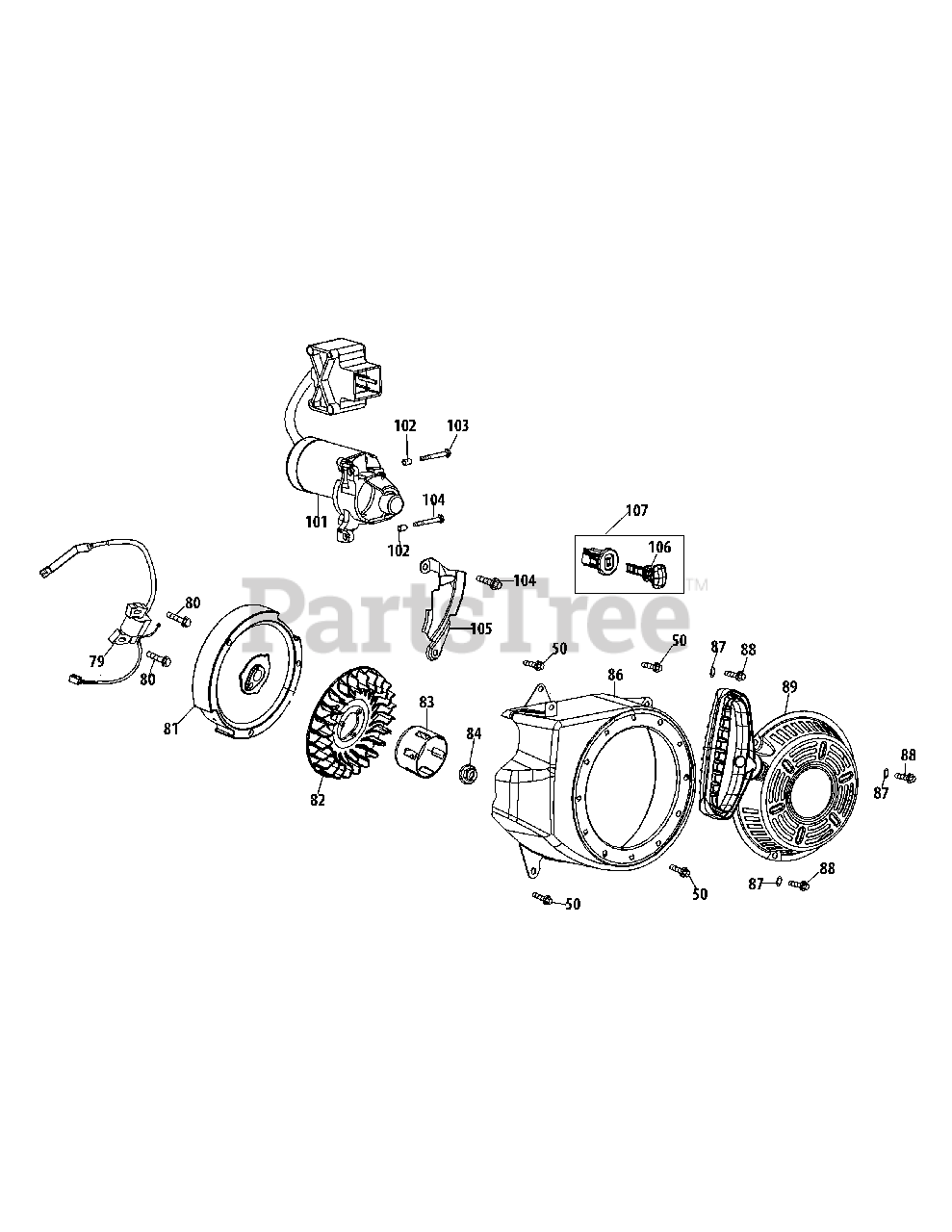

270-JU-12 - Cub Cadet Engine 270-JU-12 Starter & Flywheel Parts Diagram

Engine

270-JU-12 Starter & Flywheel Parts Diagram

  • Title

50

Cub Cadet 710-04915

Bolt M6X12 Zinc

$4.49

$

In Stock, Qty 20+

0

79

Cub Cadet 951-12013

Ignition Coil

$110.99

$

Usually ships in 3-6 days

0

80

Cub Cadet 710-04919

Flange Bolt M6X25

$4.49

$

Usually ships in 3-6 days

0

81

Cub Cadet 951-12416

Flywheel
(Superseded to 751P12416A)

$59.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 951-10934

Cooling Fan
(Superseded to 951-10909A)

$23.99

$

Usually ships in 3-6 days

0

83

Cub Cadet 951-10911

Starter Cup

$17.99

$

Usually ships in 3-6 days

0

84

Cub Cadet 712-04209

Nut M14
(Superseded to 712-04287)

$6.99

$

In Stock, only 1 left!

0

86

Cub Cadet 951-12644

Fan Cover Complete

$60.99

$

Usually ships in 3-6 days

0

87

Cub Cadet 736-04455

Flat Washer
(Superseded to 736-04455B)

$6.99

$

Usually ships in 3-6 days

0

88

Cub Cadet 710-04974

Flange Bolt

$6.99

$

In Stock, only 3 left!

0

89

Cub Cadet 951-14152

Recoil Starter Assembly

$94.99

$

In Stock, Qty 5

0

101

Cub Cadet 951-10645A

Electric Starter

$304.99

$

In Stock, only 1 left!

0

102

Cub Cadet 715-04088

Dowel Pin 8X8
(Superseded to 715-04088A)

$3.49

$

Usually ships in 3-6 days

0

103

Cub Cadet 710-05182

Starter Bolt

$4.49

$

In Stock, only 1 left!

0

104

Cub Cadet 710-04915

Bolt M6X12 Zinc

$4.49

$

In Stock, Qty 20+

0

105

Cub Cadet 951-11109

Blower Housing Shield

$7.49

$

Usually ships in 3-6 days

0

106

Cub Cadet 731-05632

Key
(Superseded to 951-10630)

$6.99

$

Usually ships in 3-6 days

0

107

Cub Cadet 951-10637

Switch Assembly

$14.99

$

In Stock, Qty 8

0

Cub Cadet 951-05102

120V Plug Kit

Note: (not shown)

$88.99

$

Usually ships in 3-6 days

0
