27-06BZ01 - Toro 5.5 Bushel Vacuum (1988) 700-SERIES 5.5 BUSHEL & 30 CU. FT. MOUNTED VACUUMS VEHICLE IDENTIFICATION NUMBERS 27-06BZ01 & 27-07BZ01 Parts Diagram

5.5 Bushel Vacuum

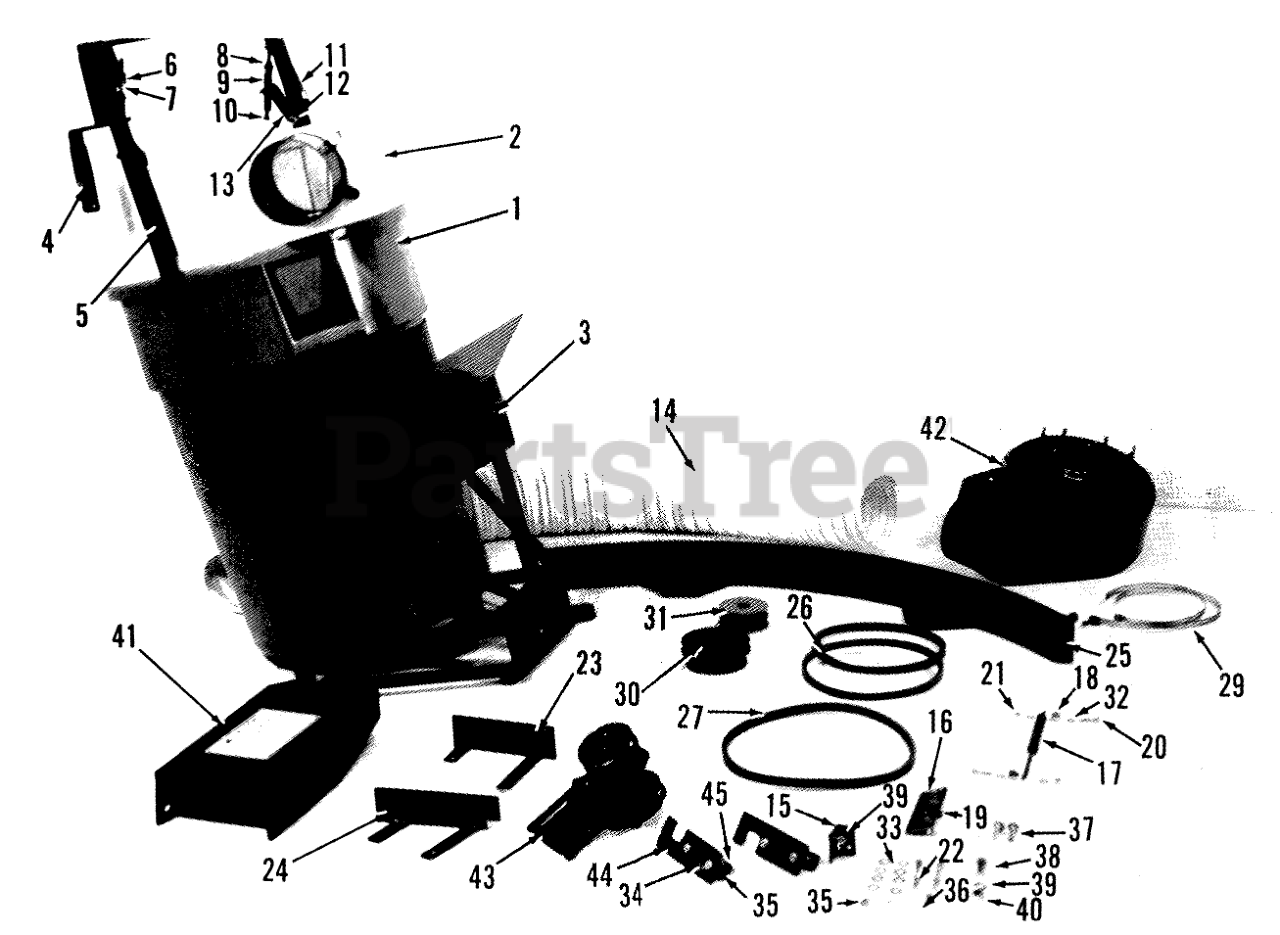

700-SERIES 5.5 BUSHEL & 30 CU. FT. MOUNTED VACUUMS VEHICLE IDENTIFICATION NUMBERS 27-06BZ01 & 27-07BZ01 Parts Diagram

  • Title
1

Toro 50102

Collector
(Superseded to 79-0130)

$

$

Not available

2

Toro 50320

Plastic Collector Cover Collector Cover items not shown

$

$

Not available

Toro 50323

Cloth Sock

$

$

Not available

Toro 50321

PLATE-LOUVERED

$

$

Not available

3

Toro 114945

Collector Frame

$

$

Not available

4

Toro 20258

Grip
(Superseded to 103712)

$9.49

$

In Stock, only 1 left!

0

5

Toro 50326

ASS'Y-CHANNEL SLIDE

$

$

Not available

6

Toro 6739

TRUNNION-LIFT

$24.99

$

In Stock, Qty 5

0

7

Toro 112444

HAIRPIN

$1.99

$

Usually ships in 3-6 days

0

8

Toro 960010

Flanged Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

9

Toro 115344

Compression Spring
(Superseded to 112942)

$23.99

$

Usually ships in 3-6 days

0

10

Toro 115343

Bolt 5/16-18 x 6-3/4

$

$

Not available

11

Toro 10222

Extension Spring
(Superseded to 114183)

$

$

Not available

12

Toro 112444

HAIRPIN

$1.99

$

Usually ships in 3-6 days

0

13

Toro 50325

BRKT-L WELDMENT L.H.

$

$

Not available

Toro 50324

BRKT-L WELDMENT R.H.

$

$

Not available

14

Toro 115345

HOSE-DISCHARGE 73"

$

$

Not available

15

Toro 114946

Mower Bracket

$

$

Not available

16

Toro 114948

Fender Bracket

$

$

Not available

17

Toro 114343

GAS SPRING

$133.99

$

In Stock, only 1 left!

0

18

Toro 114344

SPACER

$2.49

$

Usually ships in 3-6 days

0

19

Toro 908006

Bolt
(Superseded to 321-8)

$3.99

$

In Stock, Qty 9

0

20

Toro 908005

Bolt
(Superseded to 321-6)

$0.99

$

In Stock, Qty 20+

0

21

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

22

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

23

Toro 114947

Discharge Deflector 60" Mower

$

$

Not available

24

Toro 114717

Discharge Deflector 50" Mower

$

$

Not available

25

Toro 115283

Anti-Blowout Baffle

$

$

Not available

26

Toro 50104

BELT-BLOWER DRIVE

$

$

Not available

27

Toro 20256

Drive Belt (40.8")

$

$

Not available

29

Toro 50186

Hose Clamps
(Superseded to 102528)

$13.99

$

Usually ships in 3-6 days

0

30

Toro 113526

PULLEY-CENTER

$

$

Not available

31

Toro 113524

PULLEY-CENTER

$253.99

$

In Stock, only 1 left!

0

32

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

33

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 19

0

34

Toro 908038

Bolt
(Superseded to 323-10)

$0.99

$

In Stock, Qty 20+

0

35

Toro 960012

NUT
(Superseded to 32128-43)

$1.49

$

In Stock, only 4 left!

0

36

Toro 908020

Bolt
(Superseded to 322-6)

$3.99

$

In Stock, Qty 20+

0

37

Toro 900064

Bolt
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 14

0

38

Toro 908058

Bolt
(Superseded to 325-5)

$1.49

$

In Stock, Qty 6

0

39

Toro 920085

Lockwasher

$

$

Currently unavailable

40

Toro 915115

Eslok Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

41

Toro 50148

Belt Cover

$

$

Not available

42

Toro 112573

Blower-Complete

$

$

Not available

Toro 20262

Spacer

$

$

Not available

Toro 20261

Bearing
(Superseded to 104070)

$

$

Not available

Toro 20260

Drive Hub

$

$

Not available

Toro 50180

Blower Welded Bottom

$

$

Not available

Toro 50181

Blower Top

$

$

Not available

Toro 50108

IMPELLER BLOWER

$1744.99

$

Usually ships in 3-6 days

0

Toro B111

BOLT HEX 3/4-16X61/2

$

$

Not available

Toro 15090

Nut 3/4-16

$

$

Currently unavailable

Toro 1030

Zerk

$

$

Not available

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

Toro 960012

NUT
(Superseded to 32128-43)

$1.49

$

In Stock, only 4 left!

0

43

Toro 112574

Blower Dbl. Pulley Drive-Complete

$

$

Not available

Toro 50101

Strap

$

$

Not available

Toro 20265

PULLEY

$65.99

$

Usually ships in 3-6 days

0

Toro 50100

Drive Bracket

$

$

Not available

Toro B142

Bolt 3/4-16 x 6

$

$

Not available

Toro 915090

Nut
(Superseded to 32146-20)

$3.99

$

In Stock, only 4 left!

0

Toro 20264

SPACER

$

$

Not available

44

Toro 115284

Collector Mounting Bracket

$

$

Not available

45

Toro 115285

BRACKET-BACK UP

$

$

Not available
