27-06BL02 - Toro 38" Easy Empty Bagger (SN: 020000001 - 029999999) (1992) CHUTE ASSEMBLY Parts Diagram

38" Easy Empty Bagger

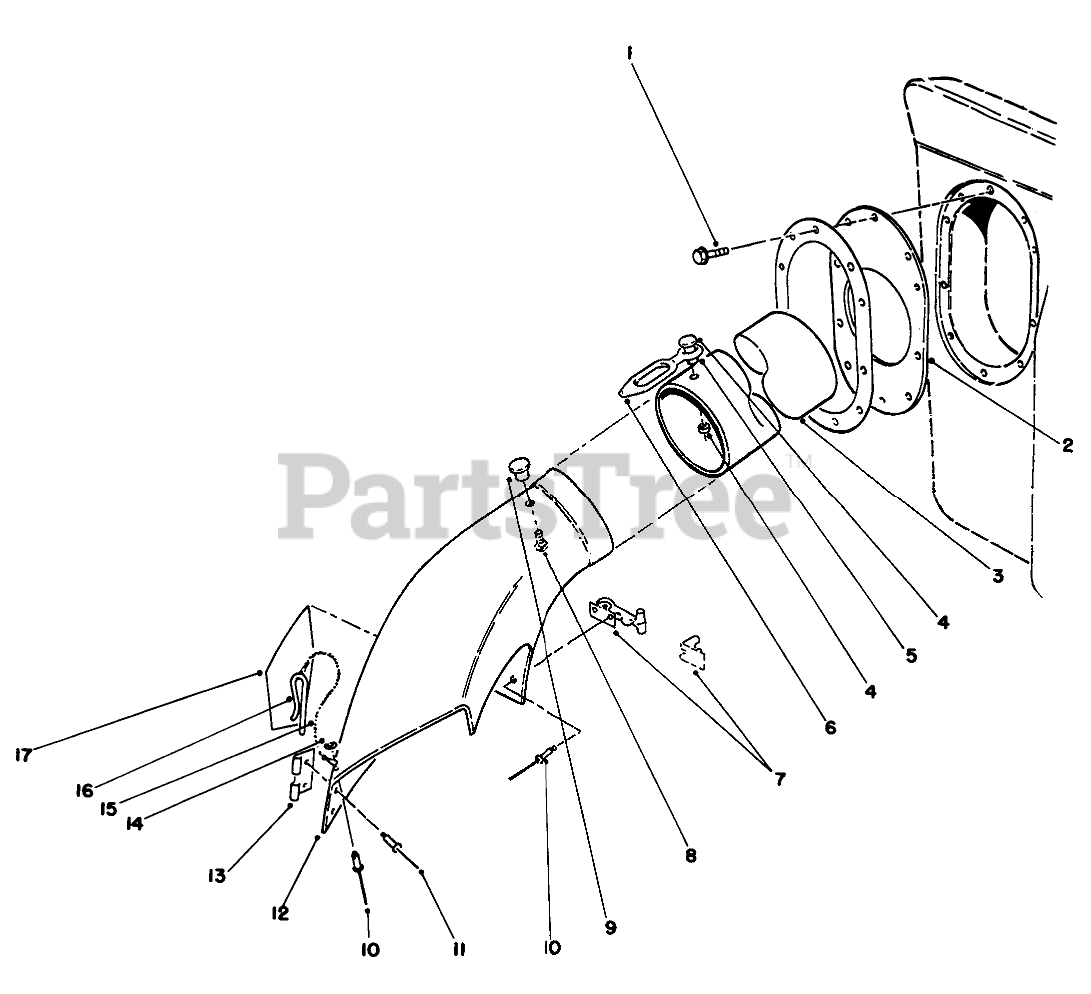

CHUTE ASSEMBLY Parts Diagram

  • Title

1

Screw (Ref.)

$

$

Not available

2

Toro 28-7770

RING-RETAINER, RUBBER

$165.99

$

Usually ships in 3-6 days

0

3

Toro 68-3034

Duct-38"
(Superseded to 68-3043)

$

$

Not available

4

Toro 3290-479

FASTENER-PANEL

$4.99

$

In Stock, Qty 20+

0

5

Toro 22-9741

SPACER-INTERLOCK

$3.49

$

In Stock, Qty 6

0

6

Toro 82-5690

RETAINER-DUCT

$19.99

$

In Stock, Qty 8

0

7

Toro 57-4670

Latch-38"
(Superseded to 117344)

$38.99

$

In Stock, only 2 left!

0

8

Toro 32144-8

SCREW-PPHTF

$6.99

$

Usually ships in 3-6 days

0

9

Toro 233-68

KNOB

$8.99

$

Usually ships in 3-6 days

0

10

Toro 3269-13

RIVET-POP

$0.99

$

In Stock, only 2 left!

0

11

Toro 3290-412

RIVET-BLIND

$3.99

$

In Stock, only 2 left!

0

12

Toro 62-7800

Elbow Assembly-38" (Incl. Ref. #7-17)

$532.99

$

Usually ships in 3-6 days

0

13

Toro 28-8050

BRACKET-MOUNTING, CHUTE

$26.99

$

Usually ships in 3-6 days

0

14

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, only 4 left!

0

15

Toro 28-8070

LANYARD

$17.99

$

Usually ships in 3-6 days

0

16

Toro 28-8130

PIN-LOCKING, CHUTE

$13.99

$

Usually ships in 3-6 days

0

17

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$10.99

$

In Stock, Qty 11

0
