27-06BL01 - Toro 38" Easy Empty Bagger (SN: 020000001 - 029999999) (1992) HOPPER ASSEMBLY Parts Diagram

38" Easy Empty Bagger

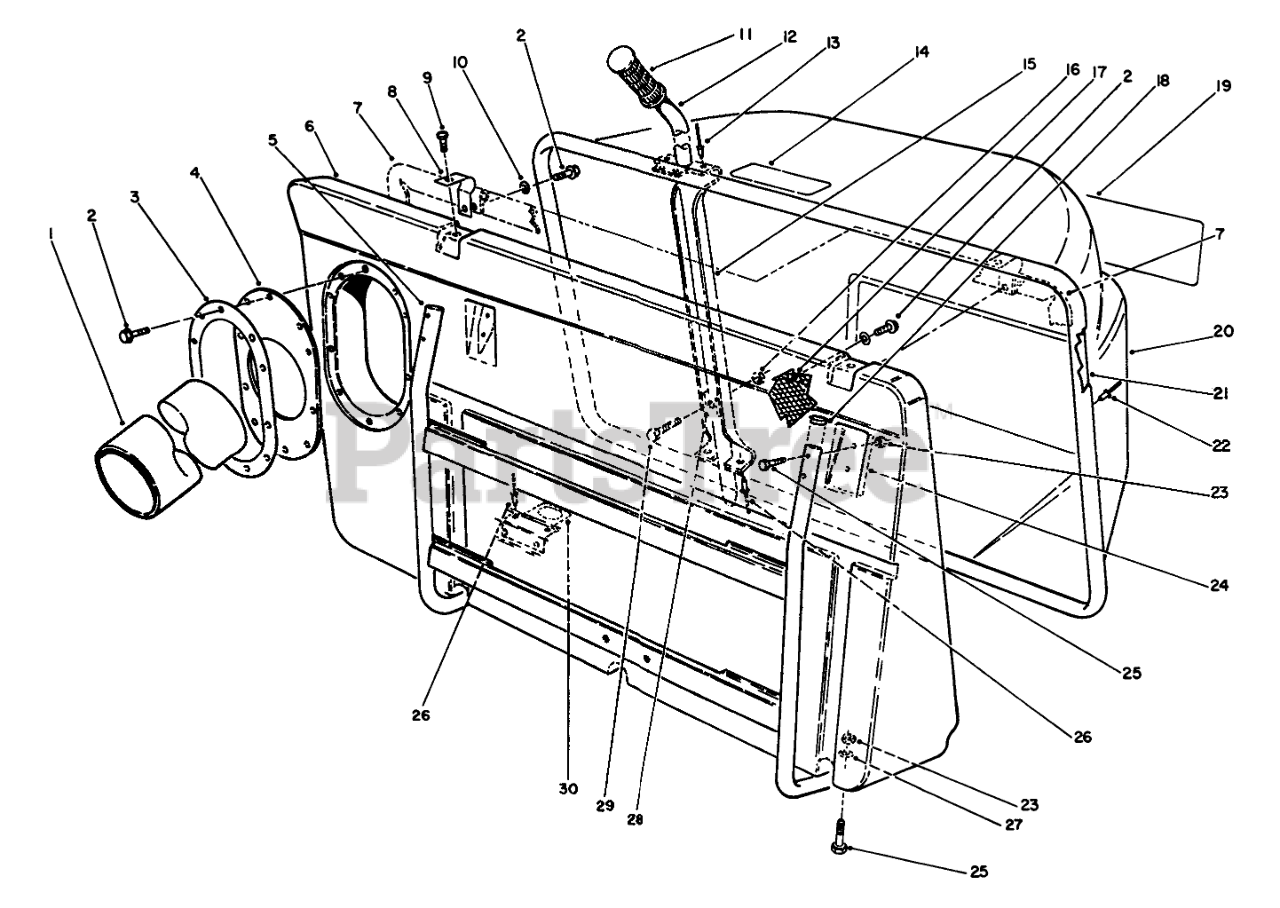

HOPPER ASSEMBLY Parts Diagram

  • Title
1

Duct (Ref.)

$

$

Not available

2

Toro 911664

Screw-Self Tapping

$

$

Not available

3

Toro 28-7760

RING-RETAINING

$

$

Not available

4

Seal (Ref.)

$

$

Not available

5

Toro 74-3320

Frame
(Superseded to 74-3320-03)

$

$

Not available

6

Toro 72-2510

BAG-FRONT

$

$

Not available

7

Toro 72-2640

SEAL-BAG

$

$

Not available

8

Toro 72-2540

Bracket-Hinge
(Superseded to 72-2540-03)

$

$

Not available

9

Toro 910837

Screw
(Superseded to 9108372)

$0.99

$

In Stock, Qty 20+

0

10

Toro 3256-61

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

11

Toro 235-21

GRIP-HANDLE

$

$

Not available

12

Toro 72-2660

HANDLE-DUMP

$

$

Not available

13

Toro 923796

Rivet-Pop
(Superseded to 3269-4)

$1.49

$

In Stock, only 1 left!

0

14

Toro 55-7270

Decal Warning
(Superseded to 46-2850)

$

$

Not available

15

Toro 72-2630

Channel-Dump Handle
(Superseded to 72-2630-03)

$90.99

$

Usually ships in 3-6 days

0

16

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

17

Toro 28-7840

Screen Bag
(Superseded to 28-7840-03)

$263.99

$

Usually ships in 3-6 days

0

18

$3.49

$

Usually ships in 3-6 days

0

19

Toro 72-2690

DECAL - TORO

$

$

Not available

20

Toro 72-2520

BASKET-GRASS

$702.99

$

Usually ships in 3-6 days

0

21

Toro 72-2650

Frame-Grass Basket
(Superseded to 72-2650-03)

$

$

Not available

22

Toro 3296-4

NUT-LOCK

$0.99

$

In Stock, Qty 9

0

23

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

24

Toro 72-2620

Plate-Backup
(Superseded to 72-2620-03)

$

$

Not available

25

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

26

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 8

0

27

Toro 920217

Washer

$

$

Not available

28

Toro 72-2550

GUIDE-HANDLE, DUMP

$

$

Not available

29

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Toro 72-2530

Latch
(Superseded to 72-2530-03)

$

$

Not available
